Turbocharger Group
/ Weichai 226B

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Injector Return Pipe Group Сrankcase assembly Сrankcase assembly Oil Seal Group Rear Oil Seal Cover Set Piston Nozzle Set Flywheel Housing Group Gear Housing Group Front End Cover Subassemblу Сrankshaft Group Main Bearing Set Thrust Bearing Set Main Bearing Set Thrust Plate Group Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Piston and Connecting Rod Group Piston Assembly Connecting Rod Assembly Connecting Rod Bearing Set Cylinder Head Assembly Cylinder Head Subassembly Intake and exhaust valve set Cylinder Head Subassembly Rocker Arm Bracket Assembly Rocker Arm Set Cylinder Head Gasket Cylinder Head Cover Group Oil Inlet Pipe Assembly Camshaft Assembly Valve Train Group Сrankshaft Pulley Group Hub Oil Pan Assembly Oil Pump Group Oil Cooler Group Oil Cooler Coolant Pipe Group Oil Filter Group Filter seat assembly Oil Filter Seat Set Crankcase ventilation unit set Water Pump Group Water Pump Pulley Assembly Intermediate plate Radiator Group Fan Fuel Injection Pump Assembly Pipe Joint Injector assembly Fuel Filter Group Fuel Filter High-pressure Fuel Pipe Assembly High-pressure Fuel Pipe Assembly Intake Manifold Group Turbocharger Group Oil pipe assembly of turbocharger Air Filter Group Air Filter Exhuast mainfold Assembly Hydraulic pump cover assembly Starter Motor Group Engine Bracket Group Packing Box Chassis Parts Group Alternator Group Alternator Bracket Assembly

1

2

3

4

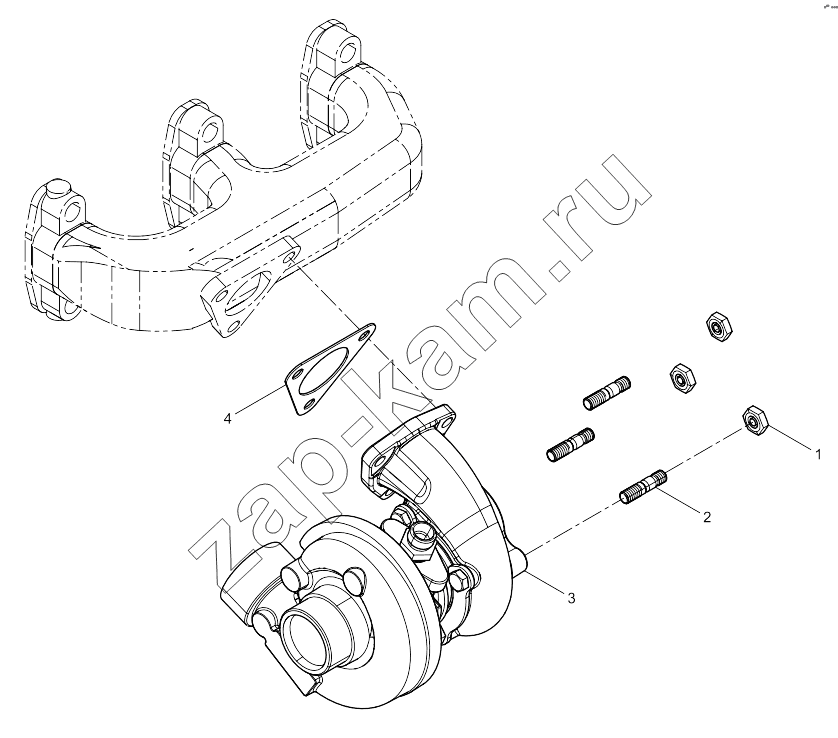

Поз.	Артикул		Название детали	Кол-во	Цена
1	90003888451		Гайка	3;	-
2	13026624		Double End Stud	3;	-
3	1000889165		Turbocharger	1;	-
4	13034580		Gasket	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
