Pipe assembly
/ Weichai 226B

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Cylinder block assembly Pre-Assembly Front wall cover assembly (gear end) Front wall cover subassembly (gear end) Middle gear assembly Rear oil seal cover assembly of flywheel end Rear oil seal cover assembly at flywheel end Piston nozzle set Oil-Gas separator assembly Stud bolt Pipe assembly Intake Manifold Subassembly Turbocharged air pipe assembly Oil sump assembly Oil scale assembly Crankshaft Group Main Bearing Set Main bearing set Main Bearing Set Thrust plate set Flywheel combination Flywheel combination Crankshaft pulley Hub set Piston and connecting rod assembly Piston and connecting rod assembly Piston and connecting rod group Connecting rod assembly Connecting Rod Bearing Set Cylinder head subassembly Cylinder head subassebly Cylinder head set Rocker arm bracket assembly Rocker arm set Cylinder gasket Cylinder head cover group Camshaft group Valve train assembly Oil pump assembly Oil filter sub-assembly Oil filter seat assembly Lubricating oil filter assembly Lubricating oil suction strainer Injection pump assembly Fuel injector assembly Injector fuel-return pipe set Fuel filter assy Fuel Filter High-Pressure fuel pipe group Flame preheated starting assembly Intermediate spacer assembly Water pump Water Pump Pulley Assembly Belt assembly Water inlet joint pipe assembly Cooling water pipe assembly Exhaust pipe assembly Exhaust turbocharger assembly Supercharger lubricating oil pipe assembly Generator bracket Complete alternator 8/13m26.3 Starter assembly Air conditioner compressor bracket assembly Flywheel housing group Parking device assembly

1

2

3

4

5

6

7

8

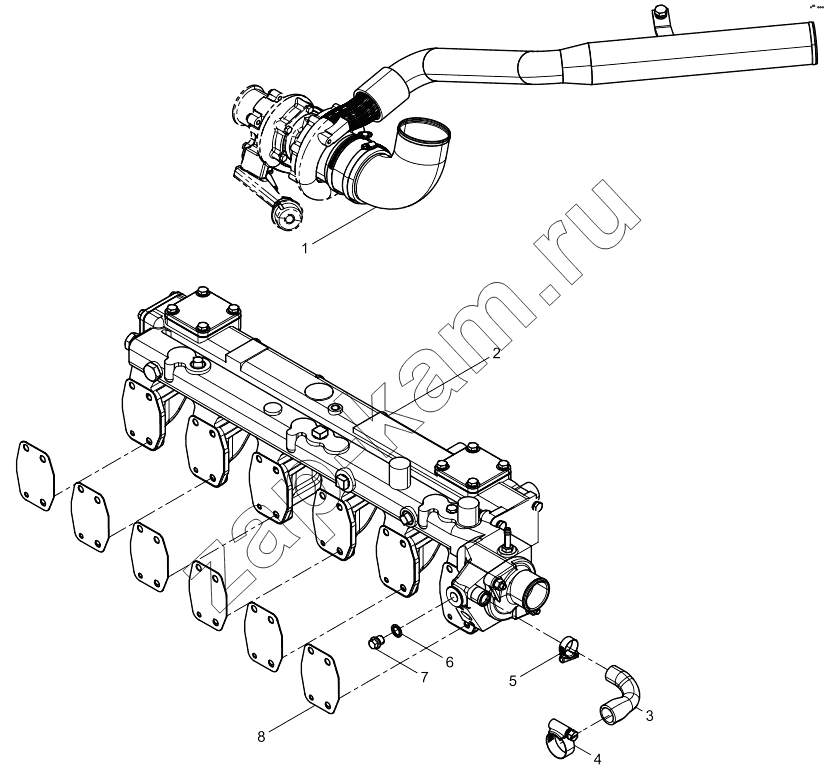

Поз.	Артикул		Название детали	Кол-во	Цена
1	13038811		Turbocharged air pipe assembly	1;	-
2	13038832		Intake Manifold Subassembly	1;	-
3	13023775		Резиновый рукав маленькой циркуляции	1;	-
4	12151665		Хомут рукава	1;	-
5	01177986		Хомут рукава	1;	-
6	612600080200		Шайба уплотнительная	1;	-
7	01133632		Резьбовая пробка с шестиугольчатой головкой	1;	-
8	12190460		Шайба впускной трубы	6;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
