5. Front wall cover assembly (gear end)

Front wall cover assembly (gear end)
/ Weichai 226B

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Cylinder block assembly Cylinder block subassembly Front wall cover assembly (gear end) Front wall cover subassembly (gear end) Flywheel end rear oil capping assembly Flywheel end rear oil seal assembly Piston Nozzle Set Crankcase ventilation device assembly Hydraulic pump cover assembly Oil pan assembly Crankshaft assembly Secondary balancing mechanism assembly Two stage equalizing device subaseembly Main Bearing Set Thrust main bearing bush assembly Main Bearing Set Thrust Plate Assembly Flywheel assembly Flywheel assembly Crankshaft belt pulley assembly Shock Absorber and wheel hub assembly Piston and Connecting Rod Group Piston and Connecting Rod Group Piston assembly Connecting rod assembly Connecting Rod Bearing Set Cylinder head assembly Cylinder head subassembly Intake and exhaust valve assembly Cylinder head assembly Rocker arm stand assembly Rocker arm sub-components Cylinder head cover assembly Cylinder gasket Camshaft assembly Valve transmission assembly Oil pump assembly Oil filter assembly Filter seat assembly Oil cooler Oil inlet pipe assembly Oil pipe assembly of turbocharger Oil pipe of injection pump assembly Hose nipple Injection pump assembly Injector assembly Injector Return Pipe Group Fuel filter assembly Fuel filter High pressure pipe assembly Air inlet pipe assembly Intake pipe assembly Air Filter Group Water Pipe Group Water pump assembly Intermediate cushion assembly Water Pump Pulley Assembly Exhaust pipe assembly Silencer Group Exhaust gas turbocharger assembly Alternator bracket assembly Generator Group Starter Motor Group Engine Bracket Group Flywheel housing assembly Water tank assembly Fan assembly Parts Box Group Packing Box Chassis Parts Group Air filter Single Transport Parts Attached to Engine Group Fan protection cover assembly

1

2

3

4

5

6

7

8

9

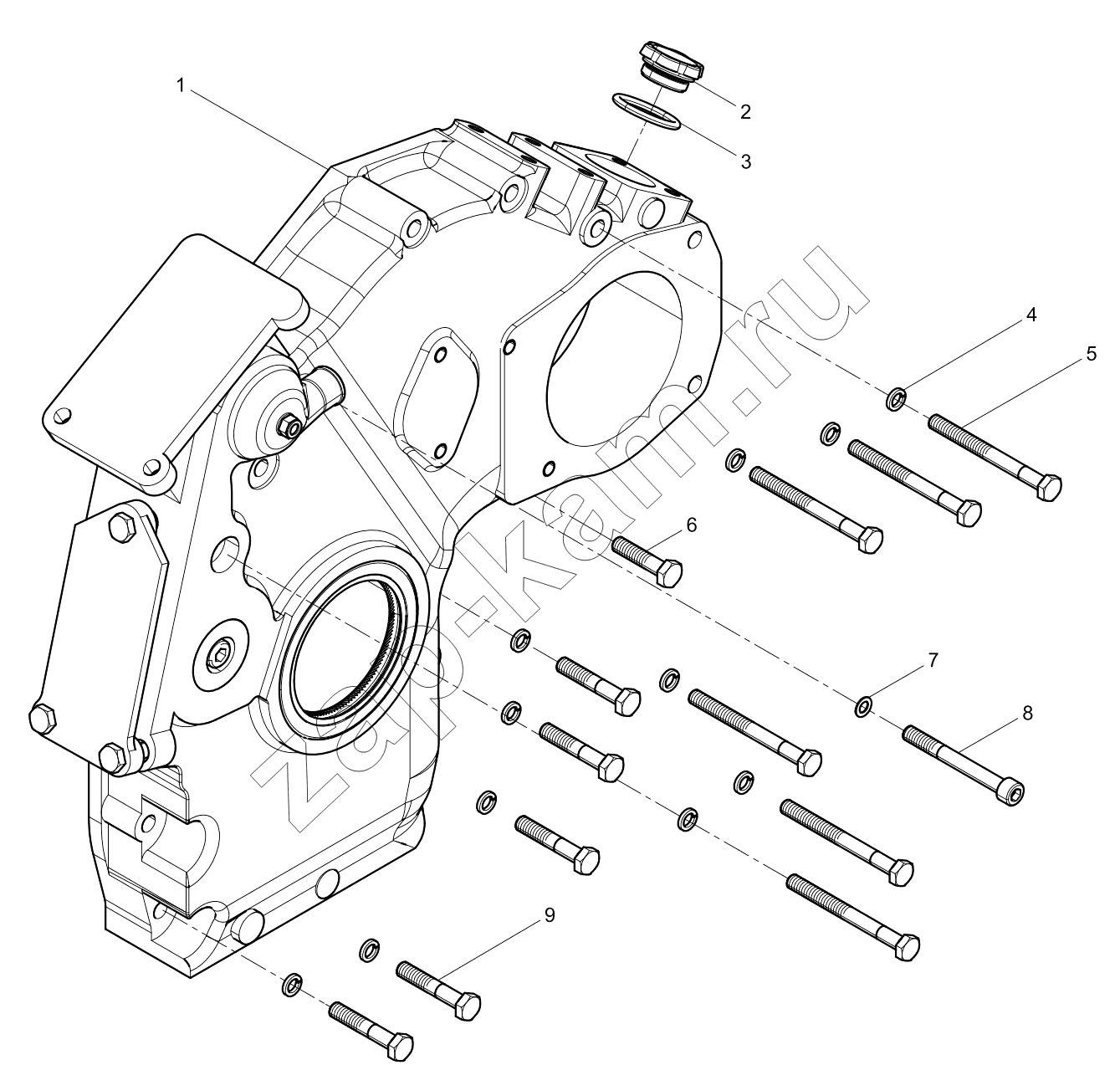

Поз.	Артикул		Название детали	Кол-во
1	13022293		Front End Cover Subassembly	1;
2	12165572		Резьбовая пробка	1;
3	06214722		О-образное резиновое кольцо	1;
4	01177981		Пружинная шайба	11;
5	01111184		Шестиугольный головочный болт	6;
6	01139584		Шестиугольный головочный болт	1;
7	01118654		Уплотняющая шайба	1;
8	01151462		Socket cap screw	1;
9	01111151		Шестиугольный головочный болт	5;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
