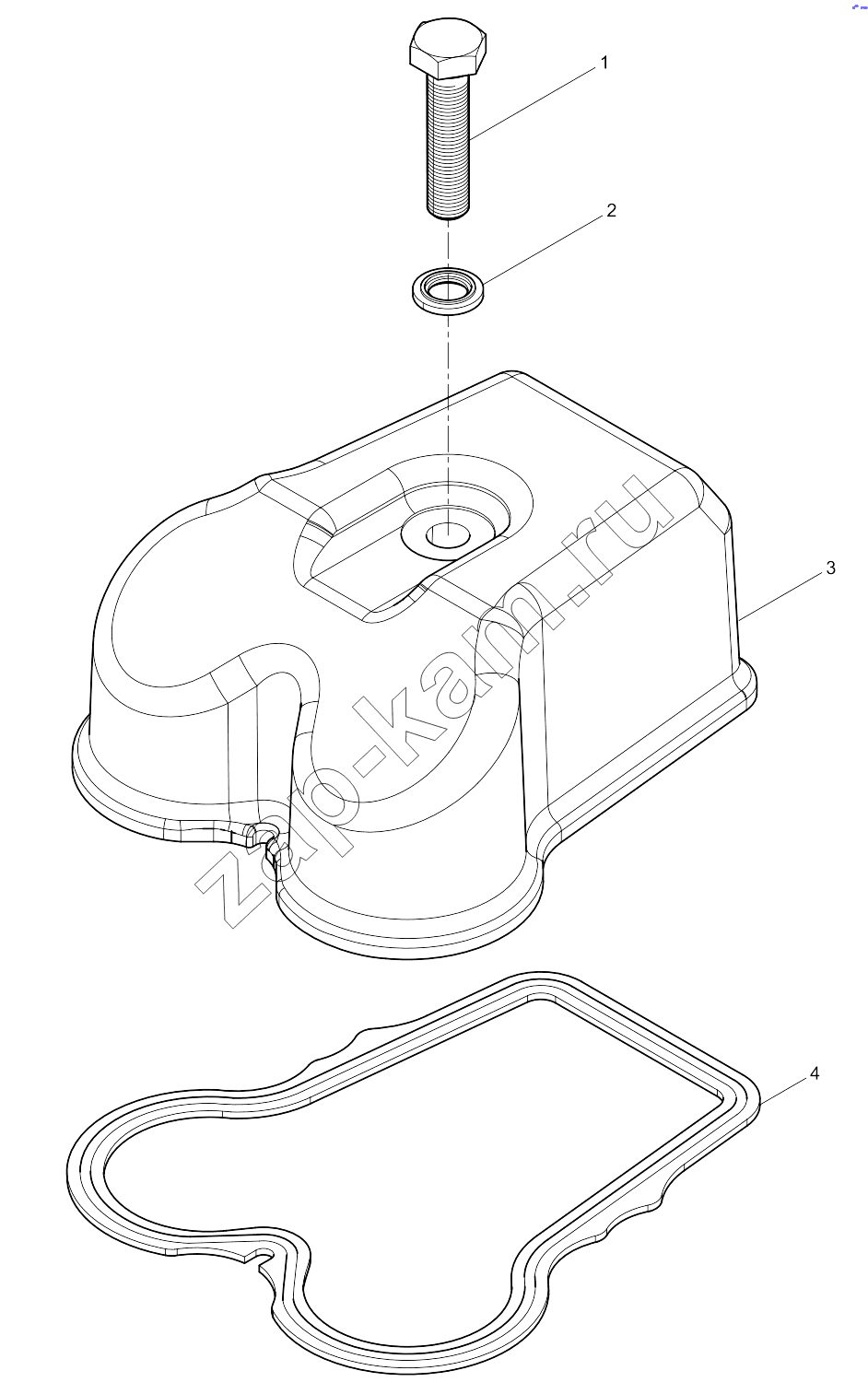

Сylinder Head Cover Group
/ Weichai 6M11 DHM11D0002

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Front cover group Idler Gear Assembly Spray Nozzle Group Oil-gas Separator Group Hydraulic Pump Group Oil Pan Assembly Crankshaft Group Main Bearing Set Thrust Bearing Se Main Bearing Set Thrust Plate Group Flywheel Group Flywheel Assembly Krankshaft Pulley Group Hub Piston and Connecting Rod Group Piston and Connecting Rod Group Piston Assembly Connecting Rod Assembly Connecting Rod Bearing Set Cylinder Head Assembly Сylinder Head Subassembly Сylinder Head Subassembly Сylinder Head Gasket Rocker Arm Bracket Assembly Rocker Arm Set Сylinder Head Cover Group Сamshaft Assembу Valve Train Group Lubricating Oil Pump Oil Cooler Group Oil Cooler Assembly Oil Inlet Pipe Assembly Turbocharger Oil Pipe Group Fuel Injection Pump Assembly Fuel Injector Group Fuel Filter Group Fuel Filter Assembly High Pressure Fuel Pipe Group Intake Manifold Group Air Filter Group Air Filter Water Pump Group Middle Filling Block Group Water Pump Pulley Assembly Tensioner And Belt Group Exhaust Manifold Group Turbocharger Group Alternator Bracket Group Alternator Group Starter Motor Group Сompressor Pipe Group Engine Bracket Group Flywheel Housing Assembly Sound Insulation Cover Group Water tank Group Packing Box Chassis Parts Group Spare Parts Attached to Engine Group

1

2

3

4

Поз.	Артикул		Название детали	Кол-во
1	90003800431		Болт с шестигранной головкой	6;
2	612600080201		Шайба уплотнительная	6;
3	13053431		Cylinder Head Cover	6;
4	13069138		Cylinder Head Cover Gasket	6;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
