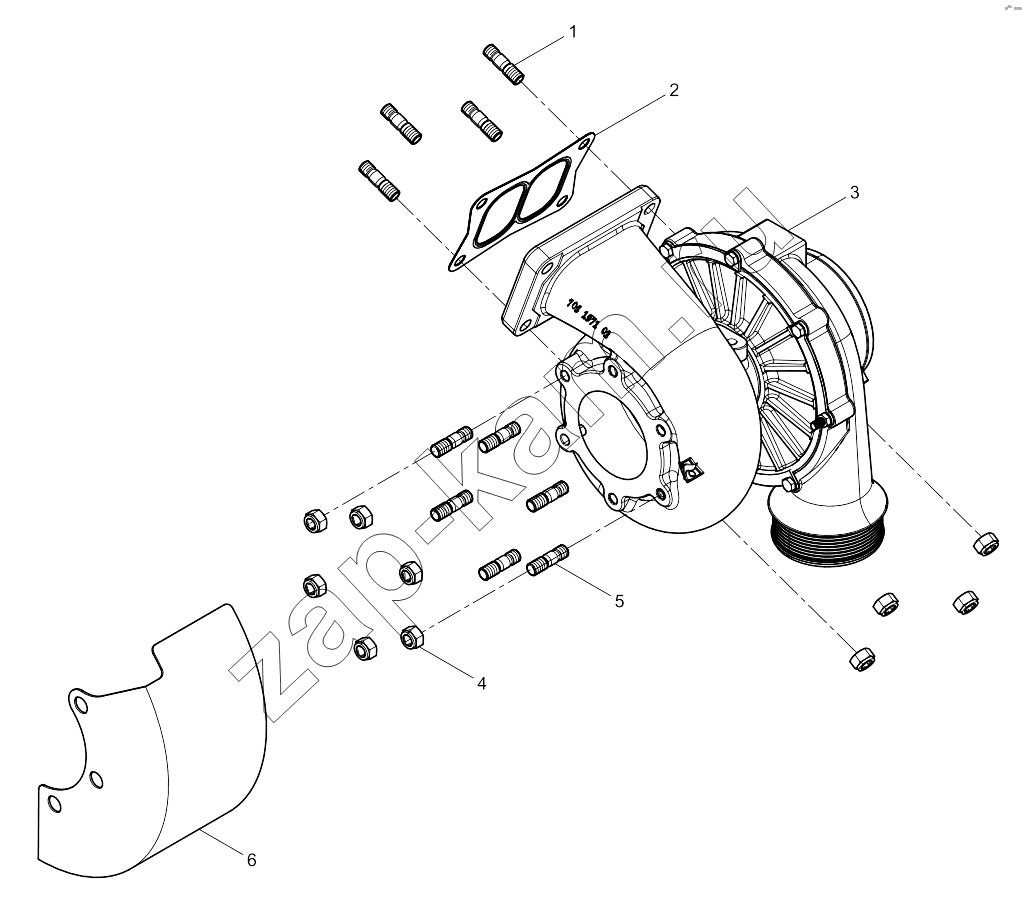

Turbocharger Group
/ Weichai 6M11 DHM16D0001

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Сrankcase assembly Сrankcase pre-assembly Oil Seal Set Spray Nozzle Group Flywheel Housing Group Timing Gear Housing Group Front cover group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Group Thrust Plate Group Flywheel Group Piston and Connecting Rod Group Piston Assembly Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Eye Ring Group Cylinder Head Cover Group Valve Train Group Rocker arm assembly Rocker Arm Shaft Set Camshaft Assembly Gear Drive Group Idler Gear Assembly Oil Pump Idle Gear Set Crankshaft Pulley Group Oil Pan Oil Pan Assembly Dipstick Group Oil Pump Group Oil Strainer Group Oil Cooler Group Oil Filter Group Oil Filter Oil Filling Tube Group Pressure-limiting Valve Group Oil-gas Separator Group Oil-gas Separator Assembly Water Pump Group Water Pump Inlet Pipe Group Water Outlet Pipe Group Thermostat Group Intercooler Group Fan and Hub Group Fuel Injection Pump Group Fuel Injection Pump Oil Pipe Group Fuel Injector Group Adapter of High Pressure Pipe Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Filter Fuel Coarse Filter High Pressure Fuel Pipe Group Intake Manifold Group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Air Filter Group Exhaust Manifold Group Rear Exhaust Manifold Group Air Conditioning Compressor Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Packing Box Chassis Parts Group Air Filter Separate Delivery Parts Group Attached to Engine Parts Box Group General-use Wire and Sensor Group Alternator Group

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во
1	81560110187		Шпилька двусторонняя	4;
2	61560110210		Прокладка под ткрбину	1;
3	1001050475		Turbocharger	1;
4	612600114387		Locknut	10;
5	612600110282		Шпилька	6;
6	1000908314		Turbocharger Heat Shield	1;
