Timing Gear Housing Group
/ Weichai 6M11 DHM16D0002

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Cylinder Block Preassembly Flywheel Housing Group Timing Gear Housing Group Front cover group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Flywheel Group Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Cylinder Head Cover Group Valve Train Group Camshaft Assembly Idler Gear Assembly Intake Rocker Arm Assembly Exhaust Rocker Arm Set Crankshaft Pulley Group Oil Pan Oil Pan Assembly Dipstick Group Oil Pump Group Oil Pump Idle Gear Set Oil Strainer Group Oil Cooler Group Oil Filter Group Oil Filter Oil Filling Tube Group Oil-gas Separator Group Oil-gas Separator Assembly Water Pump Group Water Pipe Connector Group Water Outlet Pipe Group Thermostat Group Intercooler Group Fan and Hub Group Fuel Injection Pump Group Fuel Injector Group Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Filter Fuel Coarse Filter High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Intake Manifold Group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Air Filter Group Exhaust Manifold Group Rear Exhaust Manifold Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Packing Box Chassis Parts Group Air Filter Separate Delivery Parts Group Attached to Engine Parts Box Group Alternator Group Alternator Bracket Group

1

2

3

4

5

6

7

8

9

10

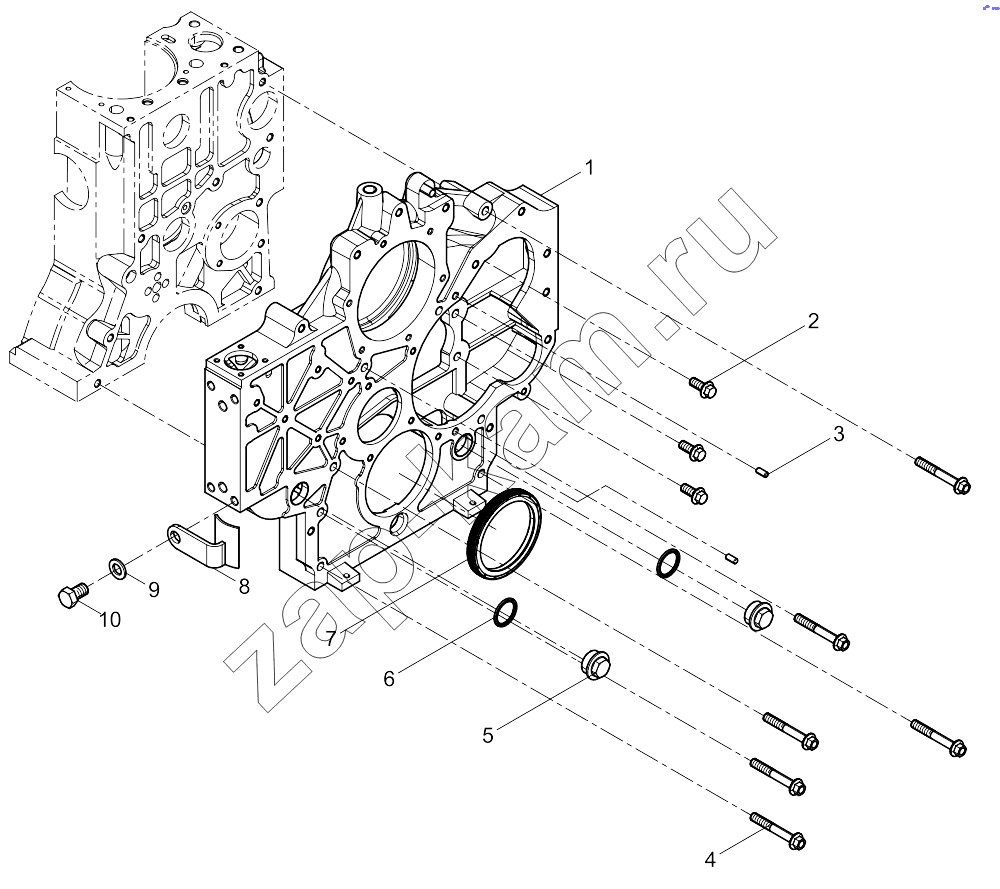

Поз.	Артикул		Название детали	Кол-во
1	612600012122		Timing gear case	1;
2	90011430008		Hexagon Flange Bolt	3;
3	90003901418		Вкладыш	2;
4	612600013483		Hexagon Flange Bolt	6;
5	90003962051		Болт	2;
6	612600010735		Кольцо упорное	2;
7	61500010037		Установочное кольцо переднего сальника	1;
8	612600160159		Water Pipe Bracket	1;
9	90014040009		Flat washer	1;
10	90011350132		Hexagon Head Bolt	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
