Cylinder Head Subassembly
/ Weichai BAUDOUIN 3M10

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Rear Oil Seal Cover Assembly Rear Oil Seal Cover Set Flywheel Housing Group Gear Housing Group Front End Cover Subassembly Crankshaft Group Main Bearing Set Thrust Bearing Set Main Bearing Set Thrust Plate Group Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Piston and Connecting Rod Group Piston Assembly Connecting Rod Assembly Connecting Rod Bearing Set Cylinder Head Assembly Cylinder Head Subassembly Intake and exhaust valve set Cylinder Head Subassembly Rocker Arm Bracket Assembly Rocker Arm Set Cylinder Head Gasket Cylinder Head Cover Group Camshaft Assembly Valve train assembly Crankshaft Pulley Group Hub Oil Pan Assembly Lubricating Oil Pump Oil Cooler Group Oil Cooler Coolant Pipe Group Oil Filter Group Filter seat assembly Oil Inlet Pipe Assembly Crankcase ventilation unit set Water Pump Group Water Pump Pulley Assembly Intermediate plate Radiator Group Fan Fuel Injection Pump Assembly Pipe Joint Injector assembly Injector Return Pipe Group Fuel Filter Group Fuel Filter High-pressure Fuel Pipe Assembly High-pressure Fuel Pipe Assembly Intake Manifold Group Air Filter Group Air Filter Exhaust Manifold Group Hydraulic pump cover assembly Starter Motor Group Engine Bracket Group Packing Box Chassis Parts Group Alternator Group Alternator Bracket Assembly

1

2

3

4

5

6

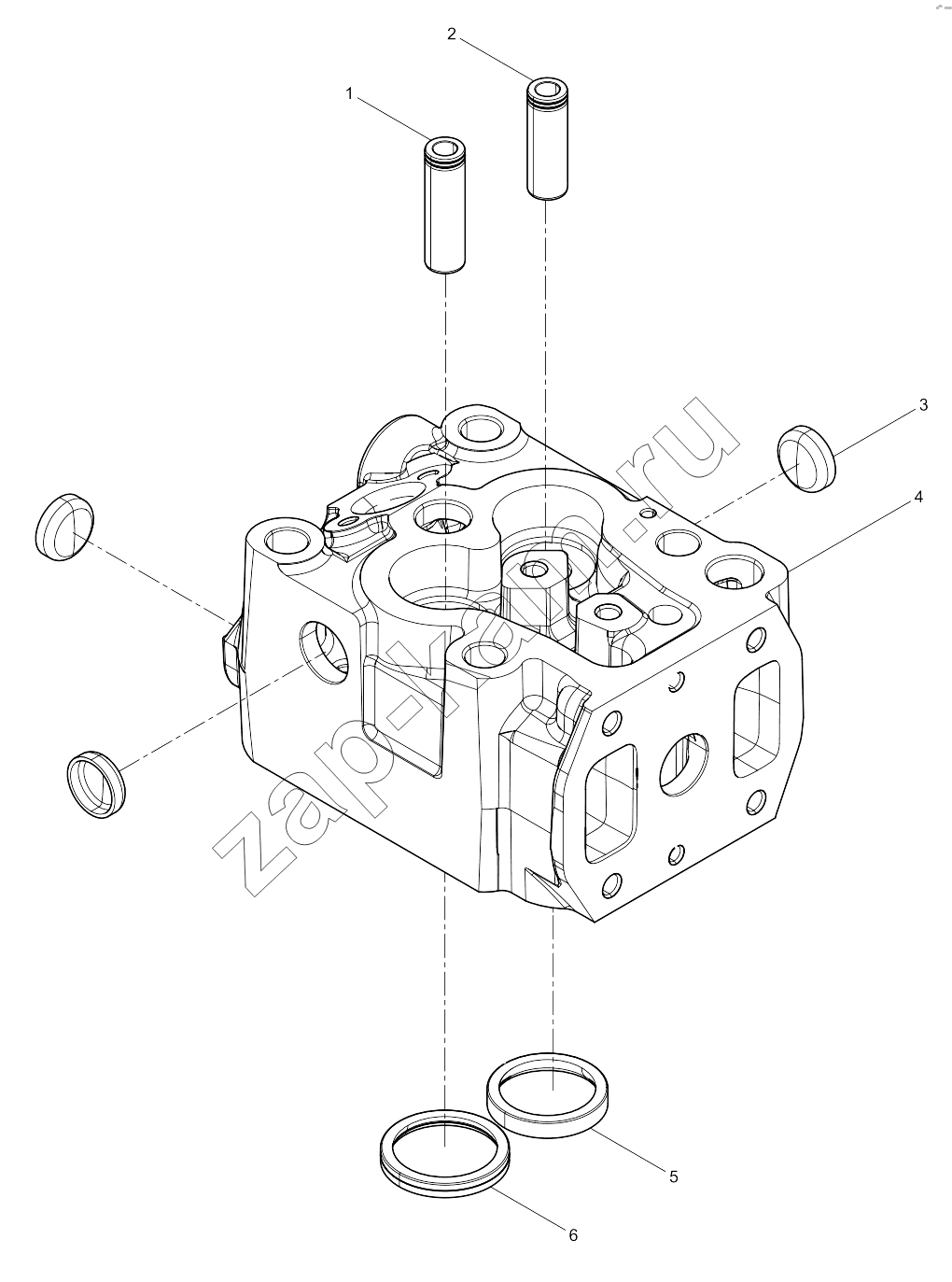

Поз.	Артикул		Название детали	Кол-во
1	13062451		Intake Valve Guide	1;
2	13062452		Exhaust Valve Guide	1;
3	612600040634		Bowl Plug	3;
4	13072139		Cylinder Head	1;
5	13058468		Exhaust Valve Seat	1;
6	13026865		Intake valve seat	1;
