Gear Drive Group
/ Weichai BAUDOUIN 4M06G44

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Flywheel Housing Group Gear Housing Cover Group Gear Housing Group Crankshaft Group Main Bearing Group Thrust Plate Group Flywheel Group Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Cylinder Head Front Cover Group Eye Ring Group Cylinder Head Cover Group Add oil cap assembly Valve Train Group Integrated Rocker Arm Shaft Assembly Gear Drive Group Crankshaft Pulley Group Oil Pan Group Oil Drain Plug Oil Dipstick Group Oil Pump Group Oil Strainer Group Oil Cooler Group Oil Filter Group Water Pump Group Thermostat Group Radiator Group Intercooler Group Fan and Hub Group Fuel Injection Pump Group Fuel Injection Pump Oil Pipe Group Fuel Injector Group Low Pressure Fuel Pipe Group Fuel Filter Group High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Intake Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Air Filter Group Exhaust Manifold Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Engine Peripheral Device Support Group Spare Parts Attached to Engine Group Alternator Group

1

2

3

4

5

6

7

8

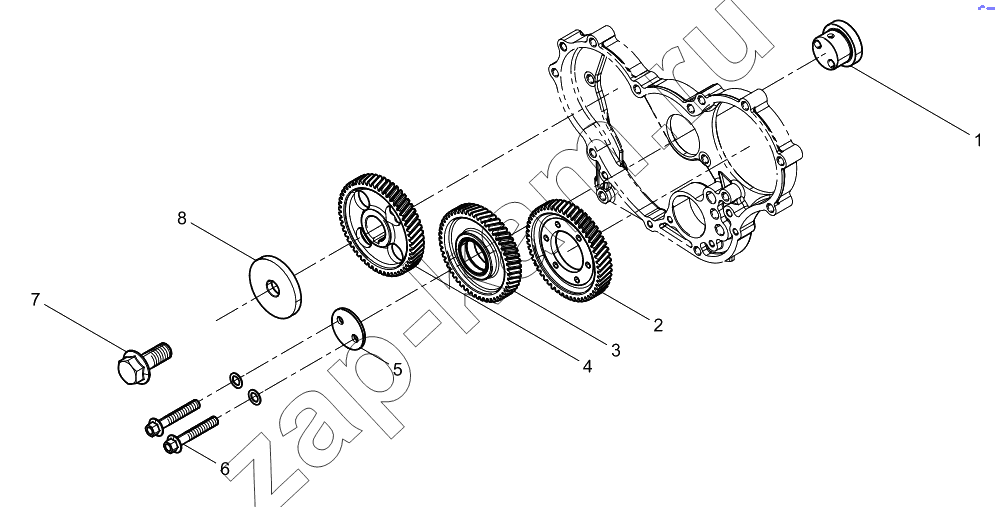

Поз.	Артикул		Название детали	Кол-во	Цена
1	2020101		Idler Gear Shaft	1;	-
2	2100101		Fuel Injection Pump Gear	1;	-
3	2021888		Idler Gear Assembly	1;	-
4	2050209		Camshaft Timing Gear	1;	-
5	2020109		Middle Gear Cover	1;	-
6	90011420024		Hexagon Flange Bolt	2;	-
7	2050118		Cover	1;	-
8	90011400048		Hexagon flange bolt, heavy series	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
