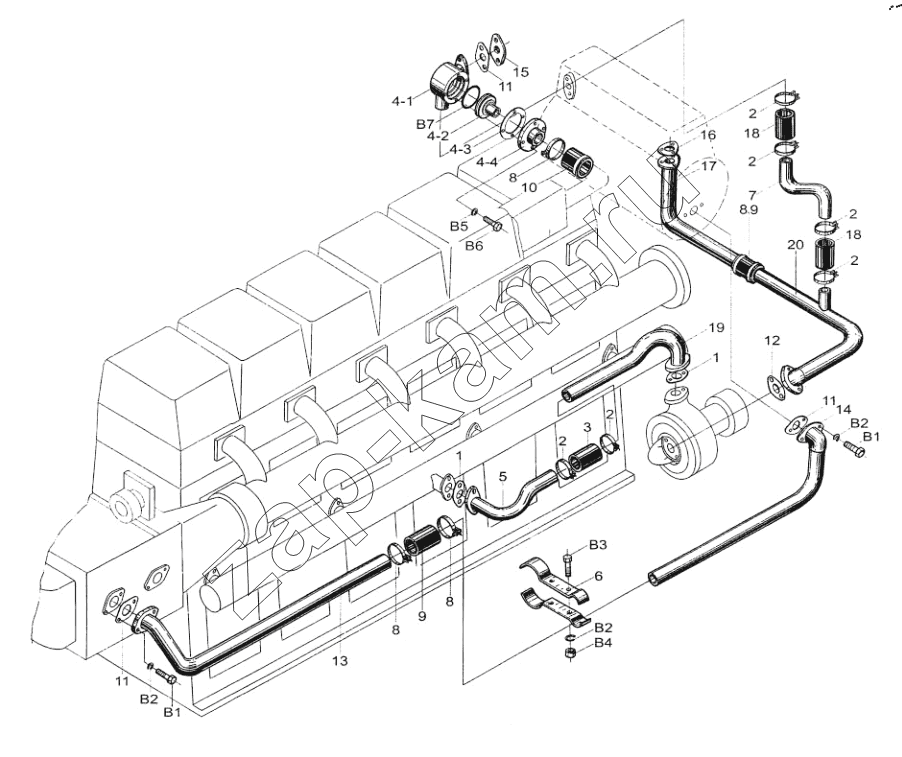

Cooling Water Piping Assembly
/ Weichai R6160
1
1
2
2
2
2
2
2
3
4-1
4-2
4-3
4-4
5
6
7
8
8
8
8
9
9
10
11
11
11
12
13
14
15
16
17
18
18
19
20
B1
B1
B2
B2
B2
B3
B4
B5
B6
B7
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160A.54.33 | Casket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 2 | 90003989306 | Хомут стягивающий | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 3 | 160Z.54.64A | Hose connection | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4 | 6160ZC7.54.610 | Thermostat sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 6160ZC5.54.610 | 6160ZC5.54.610 | Thermostat sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 4-1 | 160Z.54.610.01 | Thermostat sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 160Z.54.610.03 | 160Z.54.610.03 | Thermostat | 1 | 1 | 1 | 1 | 1 | ||||||||
| 4-2 | 170Z.20.60B.04 | Thermostat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4-3 | 170Z.20.60B.03 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 4-4 | 160Z.54.610.02 | Thermostat intake water assembly | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 4-4 | 160Z.54.610.04 | Thermostat intake water assembly | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5 | 160ZC4.54.310 | Rear intake water assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 160Z.54.88 | Clip | 2 | 2 | |||||||||||
| 6 | 160Z.54.89 | Clip | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| 7 | 616034000001 | Small circulating water pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 7 | 616054000003 | Small circulating water pipe sub-assy | 1 | 1 | |||||||||||
| 7 | 616054000005 | Small circulating water pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 7 | 616054000006 | Small circulating waler pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 7 | 616054190001 | Small circulating water pipe sub-assy | 1 | ||||||||||||
| 8 | 90003989311 | Clamp | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 4 | 4 | 4 | |
| 9 | 160А.54.42 | Hose connection | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | |
| 10 | 160Z.54.85 | Rubber pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 10 | 160Z.54.91 | Rubber pipe | 1 | 1 | 1 | 1 | 1 | ||||||||
| 11 | 170Z.17.09 | Gasket | 3 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 3 | 3 | 3 | |
| 12 | 160A.54.53 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 160ZC4.54.580A | Water outlet pipe of intercooler sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 13 | 160ZC17.54.580 | Waler outlet pipe of intercooler sub-assy | 1 | 1 | 1 | ||||||||||
| 14 | 616054005700 | Sea wealer inlet pipe of heat echanger | 1 | 1 | 1 | 1 | |||||||||
| 14 | 616054015700 | Sea weater inlel pipe of heal echanger | 1 | 1 | 1 | ||||||||||
| 15 | 160Z.54.93 | Flange | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 16 | 160Z.54.79 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 616054005100 | Fresh waler outlet pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 17 | 616054195100 | Fresh water outlet pipe | 1 | ||||||||||||
| 18 | 160Z.54.86 | Rubber pipe | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 19 | 160ZC4.54.300 | Front intake water assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 615054005900 | Water inlel pipe of waler pump sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 20 | 615054065900 | Water inlet pipe of water pump sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 20 | 616054195900 | Water inlel pipe of waler pump sub-assy | 1 | ||||||||||||
| B1 | M10x25 GB/T5783 | Hexagon bolt | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| B2 | 10 GB/T93 | Spring washer | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| B3 | М10Х45 GB/T5782 | Hexagon holt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| B4 | M10 GB/T6170-H- V | Hexagon nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| B5 | 8 GB/T93 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B6 | 48x25 GB/T5783 | Hexagon bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B7 | 90017510027 | O-ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
