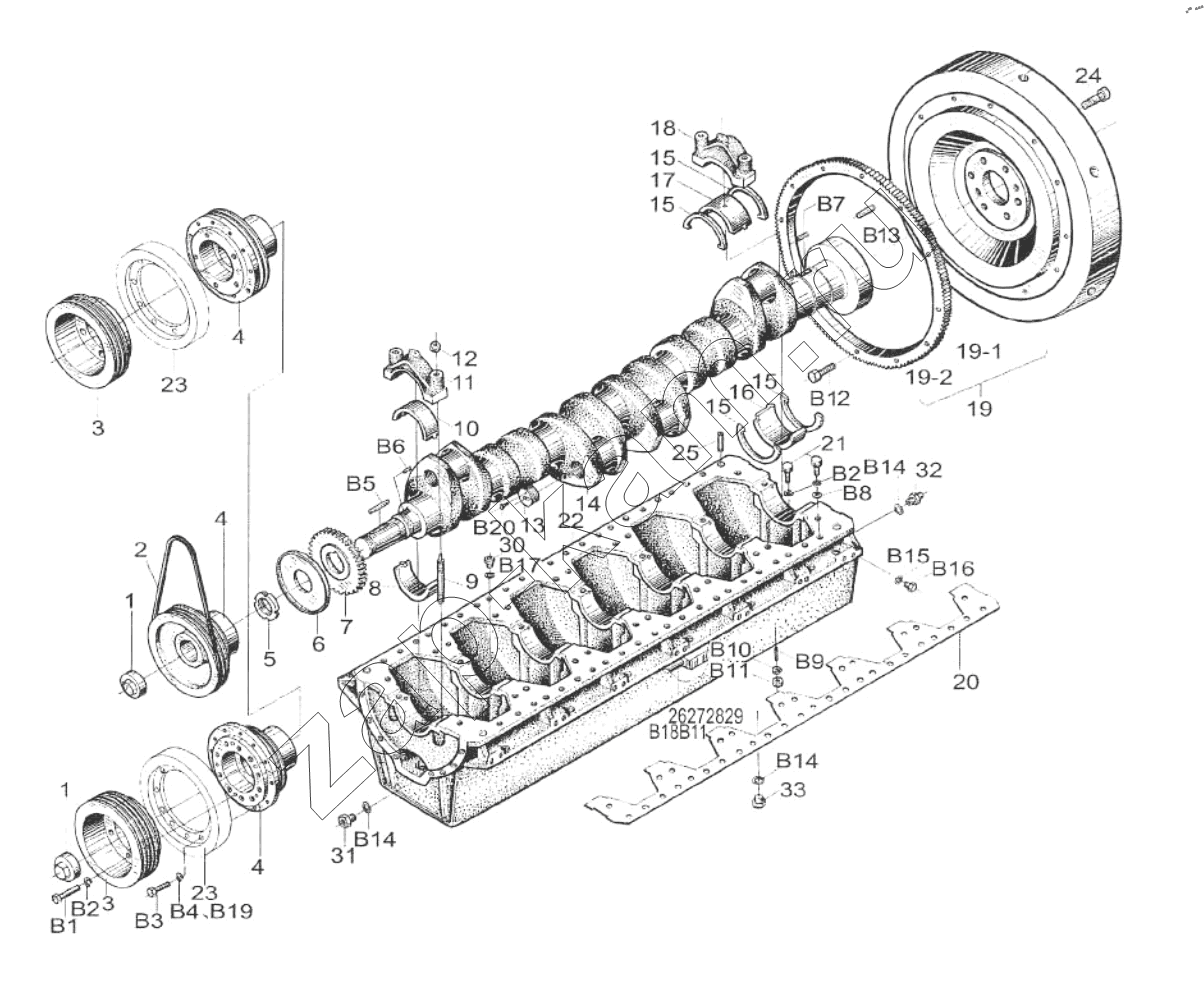

Crankcase Assembly
/ Weichai R6160
1
1
2
3
3
4
4
4
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
18
19
19-1
19-2
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
B1
B2
B2
B3
B4
B5
В6
B7
В8
В9
B10
B11
B11
B12
B13
В14
В14
В14
В15
В16
В17
В18
B19
В20
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160Z.02.189A | Nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 160Z.02.151A | V-belt | 2 | ||||||||||||
| 2 | 160Z.02.191 | V-belt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 3 | 616002010182 | Belt pullery | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 4 | 160Z.02.181A | Belt pullery | 1 | ||||||||||||
| 4 | 160Z.02.188A | Belt pullery | 1 | 1 | 1 | 1 | 1 | ||||||||
| 4 | 616002110002 | Belt pullery | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5 | 160Z.02.06 | Button nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 160Z.02.12 | Oil baffle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 160Z.02.174 | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 616002010004 | Main hearing, lower half | 6 | 6 | 6 | 6 | 6 | ||||||||
| 8 | 160A.02.133A | Main hearing, lower half | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 9 | 160A.02.152 | Main bearing stud | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| 10 | 160A.02.132А | Main hearing, upper half | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 10 | 616002010003 | Main hearing, upper half | 6 | 6 | 6 | 6 | 6 | ||||||||
| 11 | 616002010001 | Main bering cover | 6 | 6 | 6 | 6 | 6 | ||||||||
| 11 | 160Z.02.202 | Main bering cover | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 12 | 160A.02.137 | Main bearing nut | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| 13 | 160A.02.104 | Plug | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ft | 6 | |
| 14 | 61600211 0001 | Crankshaft | 1 | 1 | 1 | 1 | |||||||||
| 14 | 160Z.02.01B | Crankshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 14 | 616002090002 | Crankshaft | 1 | ||||||||||||
| 15 | 160A.02.46A | Thrust ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 16 | 160A.02.135A | Crankshaft thrust hearing,lower half | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 16 | 616002010006 | Crankshaft thrust bearing, lower halt | 1 | 1 | 1 | 1 | 1 | ||||||||
| 17 | 160А.02.134А | Crankshaft thrust bearing, lower hall | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 17 | 61602010005 | Crankshaft thrust bearing, lower half | 1 | 1 | 1 | 1 | 1 | ||||||||
| 18 | 616002010002 | Thrust bearing, cover | 1 | 1 | 1 | 1 | 1 | ||||||||
| 18 | 160Z.02.203 | Thrust bearing cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 19 | B6160ZC.02.50 | Flywheel assembly | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 19 | 616002010100 | Flywheel assembly | 1 | 1 | 1 | 1 | 1 | ||||||||
| 19 | 616002090100 | Flywheel assembly | 1 | ||||||||||||
| 19-1 | 160А.02.50.01A | Flywheel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 19-2 | 160А.02.10.02 | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 19-2 | 160А.02.50.02 | Gear | 1 | 1 | 1 | 1 | 1 | ||||||||
| 20 | 160A.02.34 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 21 | 160А.02.138 | Bolt | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | |
| 22 | 616002000007 | Crankcase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 22 | 616002010007 | Crankcase | 1 | 1 | 1 | 1 | 1 | ||||||||
| 23 | 6160Z.02.60 | Crankshaft torsions vibration damper | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 24 | 160Z.02.103 | Flywheel bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
| 24 | 616002090001 | Flywheel bolt | 8 | ||||||||||||
| 25 | 616002010008 | Positioning bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 26 | 616002000100 | Belt pulley | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | 616002000008 | Oil outlet | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 28 | 160Z.02.207 | Plate | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | 616002000210 | Plato | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | 616002000001 | Connector | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | 160Z.02.209 | Seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 32 | 616002000002 | Seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 33 | 160A.13.75 | Hexagon plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B1 | Q150B1280 | Hexagon bolt | 5 | 5 | 5 | 5 | 5 | 5 | |||||||
| B2 | 14 GB/T93 | Spring washer | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | |
| B3 | GB/T5783-10.9-ZnD | Hexagon bolt | 10 | 10 | 10 | 10 | 10 | 10 | |||||||
| B4 | GB/T93 | Spring washer | 15 | 15 | 15 | 15 | 15 | 15 | |||||||
| B5 | GB/T1096 | Flat key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| В6 | GB/T1096 | Flat key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B7 | GB/T1096 | Flat key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| В8 | Q40114 | Plain washer | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| В9 | GB/T898-8.8-H-Y | Slud | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B10 | GB/T93 | Spring washer | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B11 | GB/T1670-H-Y | Hexagon nut | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B12 | GB/T5782 | Hexagon head bolt | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| B13 | Q5211232 | Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| В14 | 27JB/T6013 | Gaskel | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| В15 | DIN7603 | Caskel | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | |
| В16 | Q617В10 | Hexagon plug | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | |
| В17 | 160A.13.36 | Copper-asbestos washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| В18 | GGB3452.1 | O-rubber seal ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B19 | Q40112 | Washer | 10 | 10 | 10 | 10 | 10 | 10 | |||||||
| В20 | 160А.13.87 | Socked head screw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
