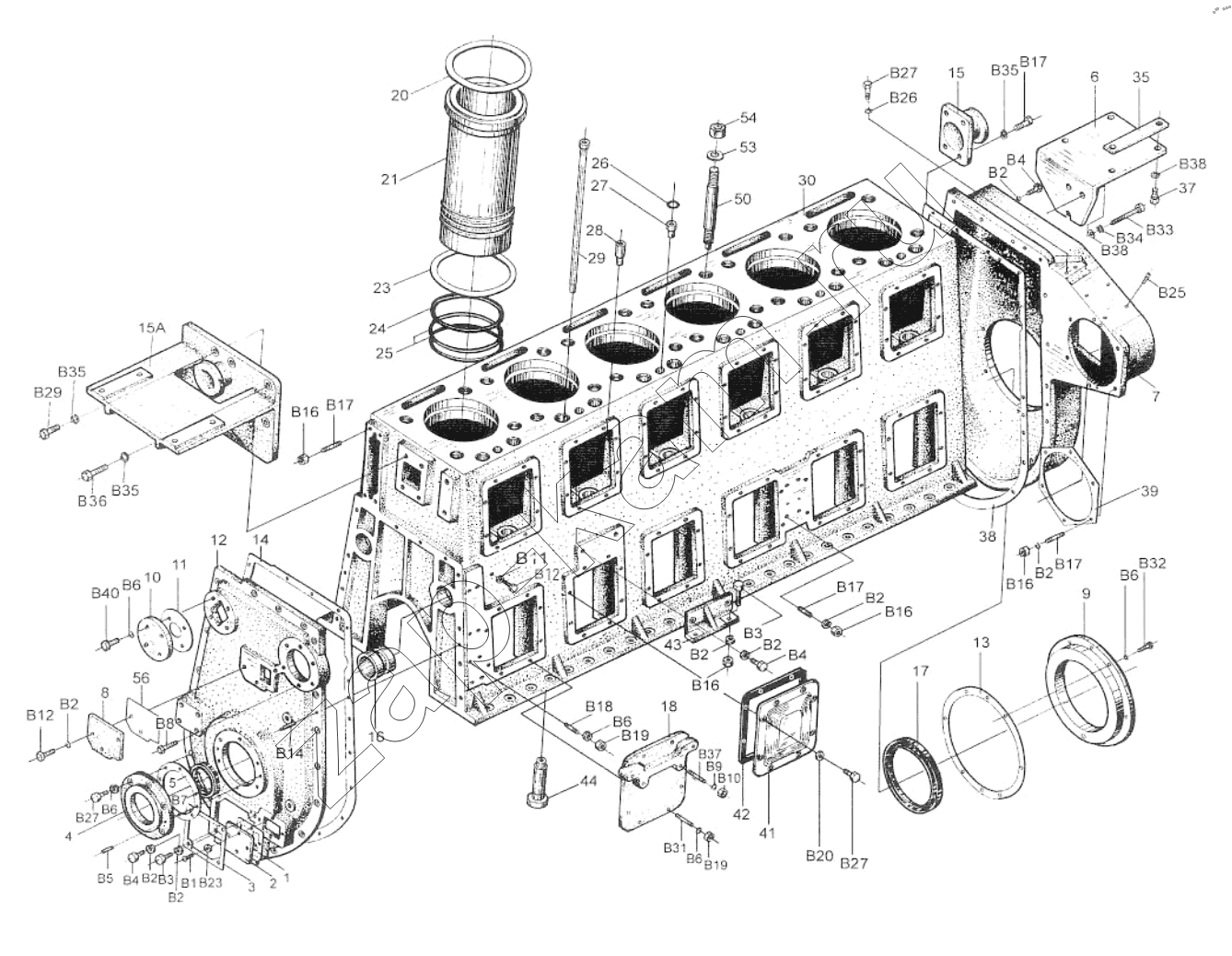

Cylinder Block Assembly
/ Weichai R6160
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15A
16
17
18
20
21
23
24
25
26
27
28
29
30
35
37
38
39
41
42
43
44
50
53
54
56
B1
B2
B2
B2
B2
B2
B2
B2
B2
B3
B3
B3
B3
B3
В4
В4
В4
В5
В6
В6
В6
В6
В6
В6
В7
B10
B11
B12
B12
B14
B16
B16
B16
B16
B17
B17
B17
B17
B18
B19
B19
B20
B23
B25
В26
В27
В27
В27
В29
В31
В32
В33
В34
В35
В35
В35
В36
В37
В38
В38
B40
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160A.01.169A | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 160A.01.68A | Cover plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 160A.01.197 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 3 | 160Z.01.277 | Gasket | 1 | 1 | 1 | 1 | 1 | ||||||||
| 4 | 160Z.0102A | Oil seal seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 4 | 160Z.01.02B | Oil seal seal | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5 | 160A.01.153 | Gaskel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 160Z.01.264 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 6 | 616001030004 | Bracket | 1 | 1 | 1 | 1 | 1 | ||||||||
| 7 | 616001170263 | Rear engine eover | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 7 | 616001180002 | Bear engine cover | 1 | 1 | 1 | 1 | 1 | ||||||||
| 7A | 616001200263 | Bear engine eover | 1 | ||||||||||||
| 8 | 160A.01.223 | Cover plale | 1 | ||||||||||||
| 9 | 160Z.01.02K | Oil seal cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 9 | 616001200002 | Oil seal cover | 1 | ||||||||||||
| 10 | 160Z.01.303 | Cover | 1 | ||||||||||||
| 11 | 160A.01.32 | Gasket | 1 | ||||||||||||
| 12 | 160Z.01.228A | Front engine cover | 1 | ||||||||||||
| 13 | 160Z.11.101A | Shim | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 160A.01.46 | Caskel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 160A.01.27 | Lifting lug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15A | 616001000003 | Sea-freshwater exchange devicebracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 616001000007 | 616001000007 | Bracket | 1 | 1 | 1 | 1 | 1 | ||||||||
| 16 | 160A.01.09 | Camshaft hearing | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 17 | 616001030001 | Oil seal | 1 | 1 | 1 | 1 | 1 | ||||||||
| 17 | 160Z.01.74 | Oil seal | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 17 | 616001200074 | Oil seal | 1 | ||||||||||||
| 18 | 160Z.01.282A | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 19 | 616001030288 | Front engine rover | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 19 | 616001010274 | Front engine cover | 1 | 1 | 1 | 1 | 1 | ||||||||
| 20 | 616001000001 | Upper Cylinder head gasket | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 20 | 616001000002 | Upper cylinder head gasket | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 21 | 616001010025 | Cylinder liner | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 22 | 160Z.01.70A | Jockey pulley sub-assembly | 1 | ||||||||||||
| 22 | 160Z.01.90A | Jockey pulley sub-assembly | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 22 | 160ZC8.01.90 | Jockey pulley sub-assembly | 1 | 1 | 1 | 1 | 1 | ||||||||
| 22-1 | 160Z.01.70.07 | End cover | 1 | ||||||||||||
| 22-2 | 16OZ.01.70.06 | Caskel | 1 | ||||||||||||
| 22-3 | 160Z.01.70.08 | Shied ring | 1 | ||||||||||||
| 22-4 | 160Z.01.70.05 | Oil shield ring | 1 | ||||||||||||
| 22-5 | 160Z.01.70.04 | Oil seal ring | 1 | ||||||||||||
| 22-6 | 160Z.01.70.01 | Jockey pulley | 1 | ||||||||||||
| 22-6 | 61400060161 | Jockey pulley | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 22-7 | 160Z.01.70.03A | Shaft for jockey pulley | 1 | ||||||||||||
| 22-7 | 160Z.01.90.01A | Shaft lor jocey pulley | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 22-7 | 160Z.01.90.07 | Shalt for jockey pulley | 1 | 1 | 1 | 1 | 1 | ||||||||
| 22-8 | 160Z.01.70.02B | Stand | 1 | 1 | |||||||||||
| 22-8 | 160Z.01.90.08 | Stand | 1 | 1 | 1 | 1 | 1 | ||||||||
| 22-8 | 160Z.01.90.05A | Stand | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 22-9 | 160Z.01.70.09 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 22-10 | 160Z.01.70.15 | Adjust washer | 1 | 1 | 1 | 1 | 1 | ||||||||
| 23 | 160A.01.24 | Lower cylider head gasket | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 24 | 160A .01.209 | Water-prool rubber ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 25 | 160A.01.26 | Water-proof rubber ring | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 26 | 160A.01.21 | Water jacket gasket | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 27 | 160A.01.33 | Water jacket | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 28 | 160A.01.62 | Oil collecting pipe | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | 160Z.01.80A | Valve tappet sub-assembly | 12 | 12 | 12 | 12 | 12 | 12 | |||||||
| 29 | 160A.01.20А | Valve lappet sub-assembly | 12 | 12 | 12 | 1 | 12 | 12 | 12 | ||||||
| 30 | 160Z.01.281 | Cylinder block | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 30 | 160Z.01.292 | Cylinder block | 1 | 1 | 1 | 1 | |||||||||
| 31 | 160A.01.174A | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 32 | 160A.01.173А | Plug nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 33 | R6160ZC.01.61 | Oil dipstick | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 34 | 616001010600 | Oil dipstick pipe assembly | 1 | 1 | 1 | 1 | |||||||||
| 34 | R6160ZC.01.60 | Oil dipstick pipe assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 35 | 160Z.01.238 | Heel plate | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| 36 | 616001030520 | Bracket | 1 | 1 | 1 | 1 | |||||||||
| 36 | 616001030511 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 37 | 160Z.01.237A | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||
| 38 | 160А.01.19 | Gaskel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 39 | 160А.01.34 | Caskel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 40 | 616001070200 | Oil gas separator sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 40 | 616001070400 | Oil gas separator sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 40-1 | 616001070100 | Oil gas separator | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 40-1 | 616001070300 | Oil gas separator | 1 | 1 | 1 | 1 | 1 | ||||||||
| 40-2 | 612600010489 | Крышка масляная | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 40-3 | 170Z.01.10A.02 | Rubber pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 40-4 | 9001820003 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 41 | 160Z.01.301 | Inspection window cover | 12 | 12 | 12 | 14 | 13 | 13 | 12 | 13 | 12 | 12 | 12 | 12 | |
| 42 | 160A.01.128В | Gasket | 17 | 17 | 17 | 18 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |
| 43 | 160Z.01.291 | Saddle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 44 | 160A.01.38 | Valve lappet | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 45 | 160A.01.289 | Cover plate | 1 | ||||||||||||
| 46 | 160A.01.177 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 47 | 160Z.01.302 | Camshafl thrust bearing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 48 | 160A.01.255 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 49 | 160A.01.15 | Clamp plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 50 | 160A.01.144 | Cylinder bead bolt | 24 | 24 | 24 | 24 | 24 | 24 | |||||||
| 50 | 160Z.01.256 | Cylinder bead bolt | 24 | 24 | 24 | 24 | 24 | 24 | |||||||
| 51 | 160A.01.22 | Caskel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 52 | 160A.01.11 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 53 | 160A.01.28 | Gasket | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| 54 | 160A.01.39 | Cylinder bead mil | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| 55 | 160А.01.50А | Upper inspection window cover sub - assy | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 55-1 | 160A.01.50.04 | Knob | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 55-2 | 160A.01.50.03A | Upper inspection window cover | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 55-3 | 160A.01.50.02 | Clamp plate | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 56 | 160A.01.224 | Gasket | 1 | ||||||||||||
| 57 | 616001200001 | Bracket | 1 | ||||||||||||
| B1 | GB/T5783-8.8-HY | Hexagon head bolt | 4 | 4 | 4 | 4 | 5 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B2 | 10GB/Y93 | Single coil spring lock w:asher | 73 | 73 | 73 | 65 | 74 | 73 | 73 | 73 | 73 | 73 | 73 | 73 | |
| B3 | GB/T5782 | Hexagon head bolt | 2 | 2 | 2 | 2 | 4 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| B3 | GB/T5782 | Hexagon head bolt | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| В4 | GB/T5783 | Hexagon head bolt | 41 | 41 | 41 | 41 | 45 | 41 | 41 | 41 | 41 | 41 | 41 | 41 | |
| В5 | GB/T117 | Taper pins | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В6 | GB/Т93 | Single coil spring lock washer | 42 | 42 | 42 | 32 | 46 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | |
| В7 | GB/T9877.1 | Oil seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 118 | GB/T898-8.8-HY | Double end stud | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| В9 | 12GB/T93 | Spring washer | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| B10 | GB/T6170-Н-Y | Hexagon head bolt | 10 | 10 | 10 | 12 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| B11 | GB/T97-1-140НY-ZnD | Plain washer | 3 | 3 | 3 | 3 | 6 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| B12 | GB/T5783 | Hexagon head bolt | 6 | 6 | 10 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| B13 | GB/T5783 | Hexagon head bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B14 | GB/T881 | Taper pins withexlernal thread | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В15 | GB/T971-140HV-Zn-D | Washer | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | ||
| B16 | GB/T6170-HY | Hexagon mil | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| B17 | GB/T898-8-8-H-Y | Double end slud | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| B18 | MB/T898-8-8-H-Y | Double end stud | 8 | 8 | 12 | 8 | 8 | 8 | 8 | ||||||
| B19 | GB/T6170-H-Y | Hexagon nut | 24 | 24 | 24 | 16 | 18 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| B20 | Q40008 | Small plain washer | 120 | 120 | 120 | 128 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |
| B21 | GB/T5783 | Hexagon head bolt | 17 | 17 | 17 | 8 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |
| B22 | GB/T5782 | Hexagon head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| B23 | 6GB/T97.1-140HV-ZnD | Washer | 8 | 8 | 8 | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| В24 | GB/T5782 | Hexagon head bull | 1 | 1 | |||||||||||
| B25 | GB/T827 | Rivets for name plate | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В26 | 8GB/T971-140HV-ZnD | Plain washer | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | ||
| В27 | GB/T5783 | Hexagon head bolt | 116 | 116 | 116 | 124 | 116 | 116 | 116 | 116 | 116 | 116 | 116 | 116 | |
| В28 | GB/T5783 | Hexagon head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В29 | GB/Т5783 | Hexagon head bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В30 | GB/Т5783 | Hexagon head bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| В31 | GB/T898-8-8-H-Y | Double end slud | 16 | 16 | 16 | 8 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| В32 | GB/T5783 | Hexagon head bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 88 | 8 | |
| В33 | GB/T5782 | Hexagon head bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||
| В34 | GB/T93 | Spring washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||
| В35 | Q403 16F9 | Spring washer | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| В36 | GB/T5783 | Hexagon head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В37 | GB/T898-8-8-H-Y | Double end slud | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В38 | Q40114 | Plain washer | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||||
| B39 | GB/T5783 | Hexagon head bolt | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| B39 | GB/T55782 | Hexagon head bolt | 1 | ||||||||||||
| B39 | GB/T55783 | Hexagon head bolt | 1 | ||||||||||||
| B39 | GB/T5783 | Hexagon head bolt | 1 | 1 | 1 | 1 | 1 | ||||||||
| B40 | GB/T5783 | Hexagon head bolt | 6 | 6 | 6 | 2 | 4 | 4 | 6 | 4 | 6 | 38 | 6 | 38 | |
| B41 | GB/T67-ZnD | Slotted pen head screw | 4 | ||||||||||||
| B42 | GB/T93 | Spring washer | 4 | ||||||||||||
| B43 | GB/T6173 | Hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B44 | 16 GB/T862-1 | Circlips lor holes | 1 | ||||||||||||
| B45 | 16 GB/T5971-140HV -ZN-D | Plain washer | 1 | ||||||||||||
| B46 | 6304 GB/T276 (90016020005) | Ball bearing | 2 | ||||||||||||
| B47 | 52 GB/T8931 | Circlips tor holes | 1 | ||||||||||||
| B48 | GB/T1152 | Oil cup | 1 | ||||||||||||
| B49 | 20 GB/T593 | Spring washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B50 | GB/T6170-H-Y | Hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
