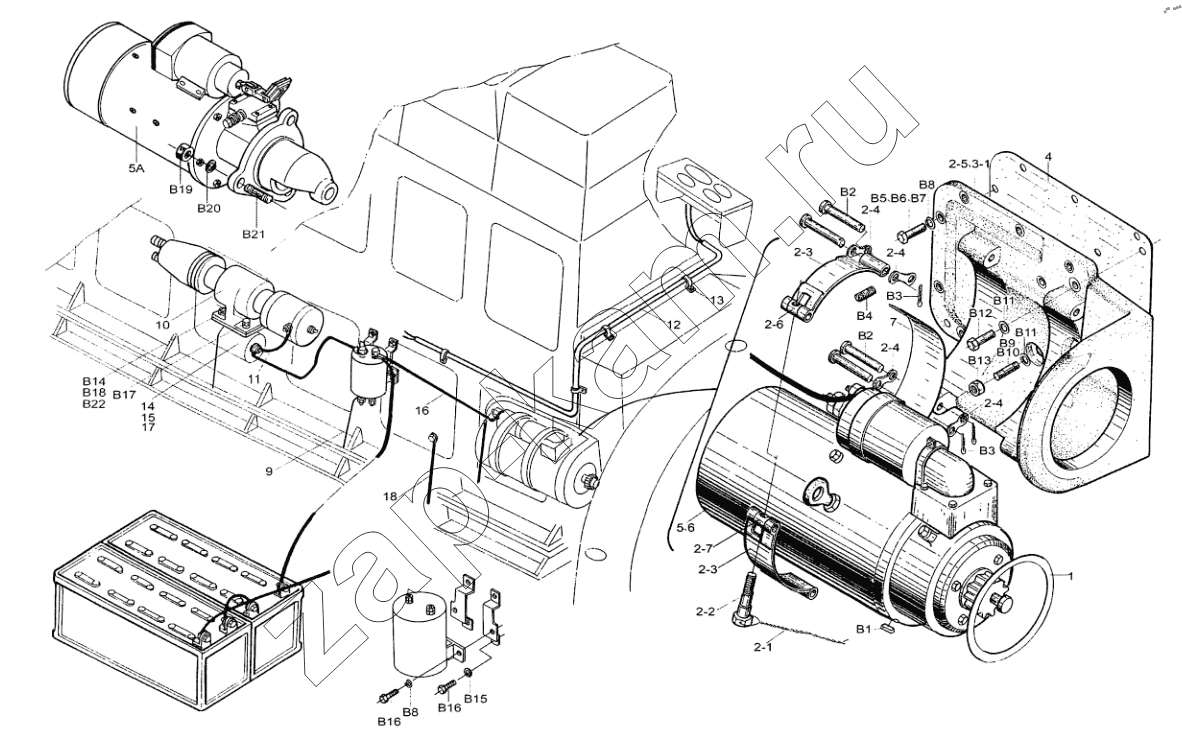

Electrical Eguipment Assembly
/ Weichai R6160
1
4
7
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160A.09.51 | Adjusting gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 2 | 160A.09.10 | Starting electrical machinery support sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 2 1 | 160A.09.10.08 | Fixed wire | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 2-2 | 160A.09.10.07 | Tight bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 2-3 | 160A.09.10.04 | Hoop | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||
| 2-4 | 160A.09.10.02 | Pulling plate | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||
| 2-5 | 160A.09.10.01 | Support | 1 | 1 | 1 | 1 | 1 | ||||||||
| 2-6 | 160A.09.10.06 | Post of tight holt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 2-7 | 160A.09.10.05 | Post of tight holt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 3 | 160A.09.120 | Starting electrical machinery support sub-easy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 3-1 | 160A.09.120.01 | Support | 1 | 1 | 1 | 1 | 1 | ||||||||
| 4 | 160A.09.07 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 5 | 160A.09.113 | Starting electrical machinery | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5А | 616009200113 | Starting electrical machinery | 1 | ||||||||||||
| 6 | 160A.09.114 | Starting electrical machinery | 1 | 1 | 1 | 1 | 1 | ||||||||
| 7 | 160A.09.06 | Adjusting gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 8 | 616009030300 | Electric pump wire connecting sub-assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 9 | 616009030400 | Earth clamp sub-assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 10 | 616009030600 | Electric pre-supply pump sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 10 | 616009040100 | Electric pre-supply pump sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 11 | 90003171356 | Chimp | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 12 | 160A.09.86 | Wire case | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 13 | 160A.09.85 | Case gasket | 5 | 5 | 5 | 4 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| 14 | 170Z.25.03 | Contactor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 15 | 616009030700 | Cibtactir bracket sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 16 | 616009030100 | Middle wire sub-assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 17 | 616009010100 | Bracket sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 18 | 160A.09.60 | Import grouil sire sub-assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| B1 | 10х22 GB1096-79 | Flat key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| B2 | В8x60 GB882 | Clevis pin with head | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||
| В3 | 3.2x16GB91-Zn-D | Citter pin | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||
| В4 | 8x55 GB881 | Taper pin | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| В5 | М8x25 GB/T5783-8.8-H-Y | Hexagon bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||
| В6 | М8x30 GB/T5783-8.8-H-Y | Hexagon bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| В7 | М8x35 GB//5783-8.8-H-Y | Hexagon bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| В8 | 8 GB93 | Spring washer | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| В9 | М14х30 GB/T898-8.8-H-Y | Stud | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| B10 | M14x35 GB898-8.8-H-Y | Stud | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| В11 | 14GB97.1-140HV-Zn-D | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| В11 | Q40114 | Plain washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||
| B12 | М14х35 GB/T5783-8.8-H - Y | Hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| В13 | M14 GB/T6170-8-H-Y | Hexagon nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| В14 | 10 GBT93 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| B15 | 8 GB/T97.1-140HV-Zn-D | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| В16 | М8х20 GB/T5783-8.8-H-Y | Hexagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| BI7 | M10x45 GB/T5782 | Hexagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| В18 | М10 GB/T6170-Н-Y | Hexagon nut | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| B19 | М16 GB/T6170-8-H-Y | Hexagon nut | 3 | ||||||||||||
| В20 | Q4031F9 | Spring washer | 3 | ||||||||||||
| В21 | M16x40 GB/7899 | Stud | 3 | ||||||||||||
| В22 | М10х40 GB/T5783-8.8-H-Y | Hexagon bolt | 2 | ||||||||||||
| 61601202000 | 61601202000 | Oil cooler assembly | 1 | 1 | |||||||||||
| 616012030000 | 616012030000 | Oil cooler assembly | 1 | 1 | 1 | ||||||||||
| 616012110000 | 616012110000 | Oil cooler assembly | 1 | 1 | 1 | ||||||||||
| 616012120000 | 616012120000 | Oil cooler assembly | 1 | 1 | 1 | ||||||||||
| R6160ZC.12.00 | R6160ZC.12.00 | Oil cooler assembly | 1 | ||||||||||||
| 6160ZC6.83.00 | 6160ZC6.83.00 | Centrifugal water pump assembly | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 6160ZС5.83.00 | 6160ZС5.83.00 | Centrifugal water pump assembly | 1 | ||||||||||||
| 6160ZC8.83.00 | 6160ZC8.83.00 | Water pump assembly | 1 | 1 | 1 | 1 | 1 | ||||||||
| 616083040000 | 616083040000 | Water tump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6160ZC5.86.00 | 6160ZC5.86.00 | Oil filter assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 616089000000 | 616089000000 | Ideat exchanger assembly | 1 | 1 | 1 | ||||||||||
| 616089010000 | 616089010000 | Sea anil fresh water heat exchanger sub-assy | 1 | 1 | |||||||||||
| 616089020000 | 616089020000 | Sea anil fresh water heal exchanger sub-assy | 1 | 1 | 1 | ||||||||||
| 616089030000 | 616089030000 | Ideal exchanger assembly | 1 | 1 | 1 | ||||||||||
| 616089040000 | 616089040000 | Ideal exchanger assembly | 1 | ||||||||||||
| 616041120002 | 616041120002 | Thermal turbosuper charger | 1 | 1 | 1 | ||||||||||
| 616041120003 | 616041120003 | Thermal turbosuper charger | 1 | 1 | |||||||||||
| 616041110002 | 616041110002 | Thermal turbosuper charger | 1 | 1 | |||||||||||
| 616004190001 | 616004190001 | Thermal turbosuper charger | 1 | 1 | |||||||||||
| 616041190002 | 616041190002 | Thermal turbosuper charger | 1 | 1 | |||||||||||
| 616041170002 | 616041170002 | Exhaust gas turbosuper charger | 1 | ||||||||||||
| 616041170001 | 616041170001 | Thermal turbosuper charger | 1 | ||||||||||||
| 616041200000 | 616041200000 | Thermal turbosuper charger | 1 | ||||||||||||
| 616041000101 | 616041000101 | Thermal lurhosuper charger | 1 | 1 | 1 | ||||||||||
| 616041000102 | 616041000102 | Thermal lurhosuper charger | 1 | 1 | 1 | ||||||||||
| 616041180001 | 616041180001 | Thermal turbosuper charger | 1 | 1 | 1 | ||||||||||
| 616041000003 | 616041000003 | Exhanst gas turbosuper charger | 1 | 1 | |||||||||||
| 616041000004 | 616041000004 | Exhaust gas turbosuper charger | 1 | 1 | |||||||||||
| 616041180002 | 616041180002 | Exhausl gas turbosuper charger | 1 | 1 | |||||||||||
| 616067110000 | 616067110000 | Fuel injector assembly | 1 | ||||||||||||
| 616067120000 | 616067120000 | Fuel injector assembly | 1 | ||||||||||||
| 616067130000 | 616067130000 | Fuel injector assembly | 1 | ||||||||||||
| 616067140000 | 616067140000 | Fuel injector assembly | 1 | ||||||||||||
| 616067150000 | 616067150000 | Fuel injector assembly | 1 | ||||||||||||
| 616067160000 | 616067160000 | Fuel injector assembly | 1 | ||||||||||||
| ВР6154 | ВР6154 | Fuel injector assembly | 1 | 1 | |||||||||||
| ВР6635 | ВР6635 | Fuel injector assembly | 1 | ||||||||||||
| ВР6609 | ВР6609 | Fuel injector assembly | 1 | ||||||||||||
| 616067040000 | 616067040000 | Fuel injector assembly | 1 | ||||||||||||
| 616067090000 | 616067090000 | Fuel injector assembly | 1 |
