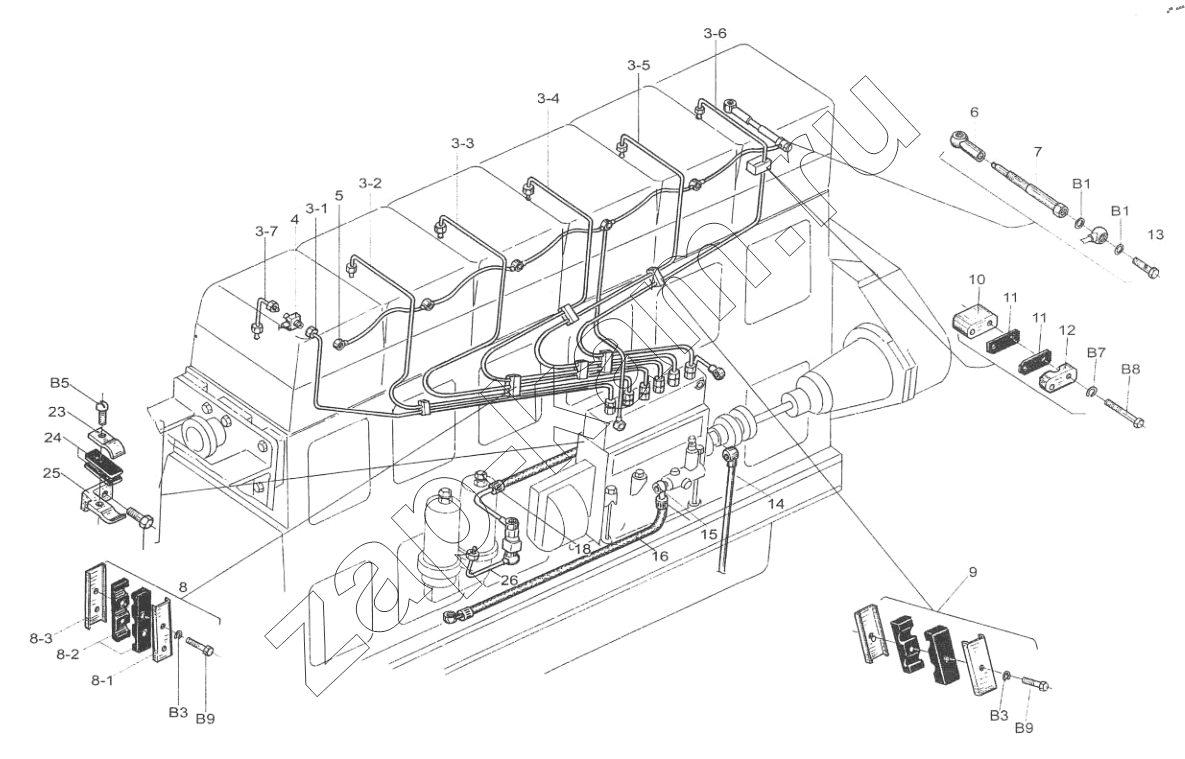

Fuel Piping Assembly
/ Weichai R6160
3-1
3-2
3-3
3-4
3-5
3-6
3-7
4
5
6
7
8
8-1
8-2
8-3
9
10
11
11
12
13
14
15
16
18
23
24
25
26
B1
B1
В3
В3
В5
B7
В8
В9
В9
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | Цена | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 616019030020 | Fuel outlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | ||
| 2 | 616019051400 | High pressure oil pipe | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 2-1 | 6160ZC7.19.610 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 2-2 | 6160ZC7.19.620 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 2-3 | 6160ZC7.19.630 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 2-4 | 6160ZC7.19.640 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 2-5 | 6160ZC7.19.650 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 2-6 | 616019040010 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | - | ||||||||
| 3 | 616019050200 | High pressure oil pipe | 1 | - | ||||||||||||
| 3-1 | 6160ZC5.19.310 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 3-2 | 6160ZC5.19.320 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 3-3 | 6160ZC5.19.330 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 3-4 | 6160ZC5.19.340 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 3-5 | 6160ZC5.19.350 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 3-6 | 6160ZC5.19.360 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 3-7 | 6160ZC5.19.300 | Injection pipe sub-assy | 1 | - | ||||||||||||
| 4 | 170ZC.23.270 | Fuel outlet pipe sub-assy | 1 | - | ||||||||||||
| 5 | 6160ZC5.19.380 | Fuel outlet pipe sub-assy | 1 | - | ||||||||||||
| 6 | 170Z.23.01A | Connector | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 7 | 160Z.19.11 | Pipe | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 8 | 616019050020 | Three tube clamp assembly | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 8-1 | 616019050021 | Clip | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 8-2 | 616019050022 | Vibration damper | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | - | |
| 8-3 | 616019050023 | Clip | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 8-4 | 90014350003 | Шайба пружинная | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | - | |
| 8-5 | 90011260039 | Hexagon bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | - | |
| 9 | 616019050010 | Two tube clamp assembly | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 10 | 160Z.19.14 | Plate | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 11 | 160Z.19.15 | Pad | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| 12 | 160Z.19.13 | Clip | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 13 | 170Z.23.03 | Screw | 7 | 7 | 7 | 6 | 8 | 6 | 6 | 6 | 6 | 7 | 7 | 7 | - | |
| 14 | 160А.19.30 | Fuel pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 15 | 160A.19.4011 | Circle connector pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 16 | 6160А.19.40A | Fuel pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | ||||||
| 17 | 6160A.19.60A | Fuel pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 18 | 6160ZC5.19.70 | Fuel pipe sub-assy | 1 | 1 | 1 | 1 | - | |||||||||
| 19 | 160А.19.28 | Support | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 20 | 160А.19.29 | Clamp | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 21 | 160A.19.31 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | - | |||||||
| 22 | 160А.19.32 | Rubber gasket | 2 | 2 | 2 | 2 | 2 | 2 | - | |||||||
| 23 | 160А.19.23 | Plate | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 24 | 160А.19.24 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | - | |||||||
| 25 | 160А.19.22 | Clamp bracket | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 26 | 6160ZC.19.60B | Fuel pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27 | 616019051300 | High pressure oil pipe | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27-1 | 616019030010 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27-2 | 6160ZC5.19.320 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27-3 | 6160ZC5.19.330 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27-4 | 6160ZC5.19.340 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27-5 | 6160ZC5.19.350 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 27-6 | 6160ZC5.19.360 | Injection pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| 28 | 6160ZC7.19.70 | Kiel pipe suit-assy | 1 | 1 | - | |||||||||||
| 29 | 160A-2.19.60D | Fuel piping assembly | 1 | 1 | 1 | - | ||||||||||
| B1 | 160А.13.71 | Copper washer | 14 | 14 | 14 | 12 | 16 | 12 | 12 | 12 | 12 | 14 | 14 | 14 | - | |
| B2 | 90011270069 | Heagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | - | |||||||
| В3 | 90014350003 | Шайба пружинная | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | - | |
| B4 | М6 GB/T6170-Н-V | Hexagon nut | 2 | 2 | 2 | 2 | 2 | 2 | - | |||||||
| В5 | М6х20 GB/T67-Zn-D | Slotted pan head screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| В6 | М8х20 GB/T5783 | Hexagon bolt | 1 | 1 | 1 | 1 | 1 | 1 | - | |||||||
| B7 | 8 GB/T93 | Spring washer | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| В8 | М8х55 GB/T5782 | Hexagon bolt | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| В9 | М6х30 GB/T5783 | Hexagon bolt | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
