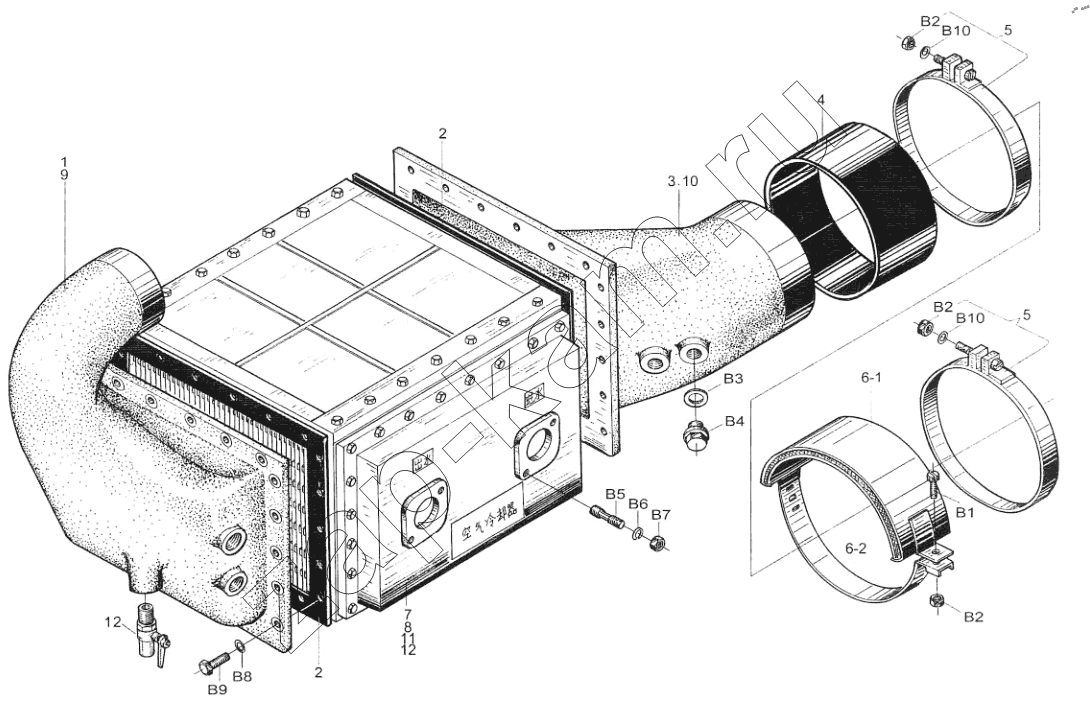

Intercooler Assembly
/ Weichai R6160
1
2
2
3
4
5
5
6-1
6-2
7
8
9
10
11
12
12
B1
B2
B2
B2
B3
B4
В5
В6
В7
В8
В9
B10
B10
| Поз. | Артикул | Название детали | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160Z.57.11 | Air inlet cover | 1 | 1 | 1 | 1 | 1 | ||||
| 2 | 160Z.57.02 | Casket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 3 | 160Z.57.03A | Air outlel cover | 1 | 1 | 1 | 1 | 1 | ||||
| 4 | 160Z.57.04 | Rubber piping connection | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5 | 160Z.57.30 | Clamp sub-assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| 6 | 160Z.57.20A | Clamp sub-assy | 1 | 1 | 1 | 1 | 1 | ||||
| 6-1 | 160Z.57.20A.01 | Heal-proof case | 1 | 1 | 1 | 1 | |||||
| 6-2 | 160Z.57.20A.02 | Clamp | 1 | 1 | 1 | 1 | |||||
| 7 | 616057160100 | Air cooler sub-assy | 1 | 1 | 1 | 1 | |||||
| 8 | 616057150100 | Air cooler sub-assy | 1 | 1 | 1 | ||||||
| 9 | 160Z.57.12 | Air inlet cover | 1 | 1 | 1 | ||||||
| 10 | 160Z.57.07 | Air outlel cover | 1 | 1 | 1 | ||||||
| 11 | 6160ZC4.57.10 | Air cooler sub-assy | 1 | ||||||||
| 12 | 170Z.21.112 | Straight Nozzle Drain Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B1 | M6x30 GB/T67Zn-1 | Slotted pan bead screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B2 | M6 GB/T6170-H-Y | Hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B3 | 160A.13.36 | Copper-asbestos washer | 1 | 2 | 2 | 2 | 1 | 2 | 1 | 2 | |
| B4 | 900039600005 | Hexagon plug | 1 | 2 | 2 | 2 | 1 | 2 | 1 | 2 | |
| В5 | М10х25 GB/T898-8x8-НxY | Stud | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В6 | 10GB/T93 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В7 | М10 GB/T6170-H-Y | Hexagon nut | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В8 | 10GB/T848-140HV-Zn-D | Small washer | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | |
| В9 | М10х20 GB/T5783 | Hexagon bolt | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | |
| B10 | 6GB/T97 -1-140HV-Zn-D | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
