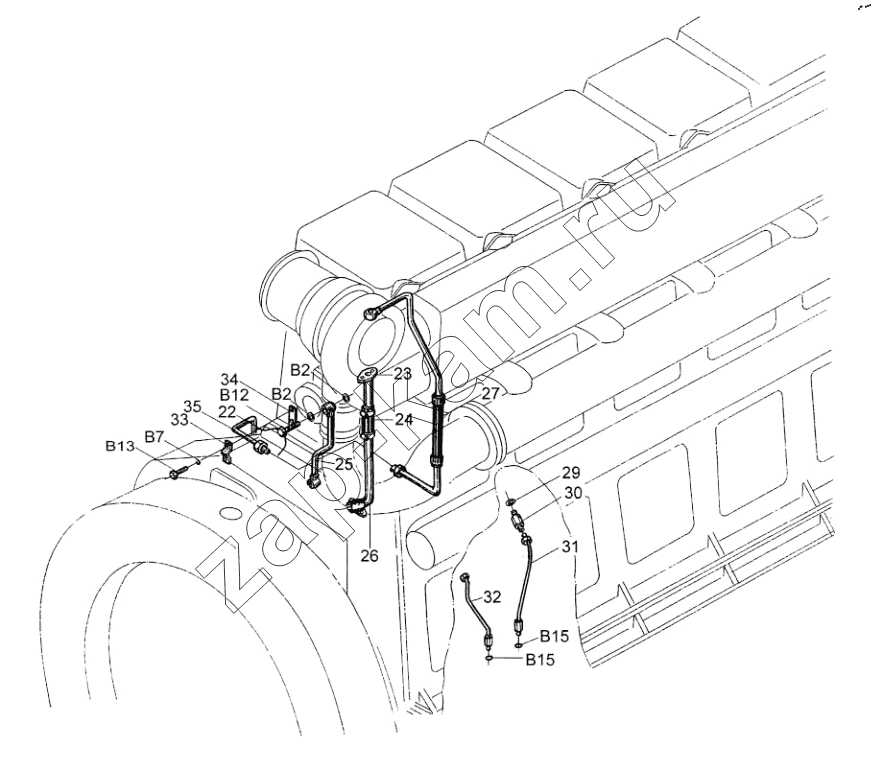

Oil Pipe Assembly
/ Weichai R6160
22
23
24
25
26
27
29
30
31
32
33
34
35
B2
B2
B7
B12
B13
В15
В15
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160A.22.270 | Oil pipe sub-assy | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 2 | 616022040500 | Oil pipe sub-assy | 1 | 1 | 1 | 1 | |||||||||
| 2 | 616022030500 | Oil pipe sub-assy | 1 | 1 | |||||||||||
| 2 | 616022010500 | Oil pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 2 | 616022020500 | Oil pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 3 | 616022040200 | Electric pre-supply fuel pump outlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 3 | 616022030200 | Electric pre-supply fuel pump outlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| R6160ZC.22.230 | R6160ZC.22.230 | Oil outlet pipe for hand pump sub-assy | 1 | ||||||||||||
| 4 | R6160ZC.22.70 | Oil inletpipe for cooling sub-assy | 1 | ||||||||||||
| 4 | 616022010700 | Oil inletpipe for cooling sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5 | 616022010400 | Oil inlel pipe sub-assy | 1 | ||||||||||||
| 616022040100 | 616022040100 | Electric pre-supply fuel pump nutlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 616022030100 | 616022030100 | Electric pre-supply fuel pump nutlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 6 | 616022020200 | Oil nutlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 616022120001 | Rubber pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 90003989301 | Хомут шланга | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 9 | R6160ZC.22.30 | Oil outlet pipe sub assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 616022000001 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 616022110100 | Oil pump intake pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 11 | 616022120100 | Oil inlet pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 11 | 616022010100 | Oil inlet pipe sub-assy | 1 | 1 | 1 | 1 | |||||||||
| 11 | 616022020100 | Oil pump intake pipe sub-assy | 1 | 1 | |||||||||||
| 12 | R6160ZC.22.90 | Oil inlet pipe for filter sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 12 | 616022020900 | Oil inlet pipe ior filter sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 13 | 616022030300 | Oil pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 13 | 160ZC6.22.100 | Oil pipe sub-assy | 1 | ||||||||||||
| 14 | 160А.22.177 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 14 | 160А.01.177 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 160А.11.10.06 | Gaske | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 16 | 616022020110 | Oil outel pipe for filter sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 16 | R6160ZC.22.110 | Oil outlet pipe for filter sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 17 | 160А.22.03 | Turning connection bolt | 1 | 1 | 1 | 1 | 1 | ||||||||
| 18 | 160А.22.120 | Oil pipe sub-assy | 1 | 1 | |||||||||||
| 19 | 160А-2.22.120 | Oil pipe sub-assy | 1 | ||||||||||||
| 20 | 160А.22.290А | Oil pipe sub-assy | 1 | 1 | 1 | ||||||||||
| 21 | 160А.22.44 | Turning connection bolt | 1 | 1 | 1 | ||||||||||
| 22 | 160А.22.27 | Iron wire | 1 | 1 | 1 | ||||||||||
| 23 | 616022084400 | Oil outlet pipe for turbocharger sub-assy | 1 | 1 | |||||||||||
| 23 | 616022074400 | Oil oullet pipe for turbocharger sub-assy | 1 | 1 | |||||||||||
| 23 | 616022064400 | Oil oullet pipe for turbocharger sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 23 | 616022094400 | Oil oullet pipe for turbocharger sub-assy | 1 | 1 | 1 | ||||||||||
| 24 | 160А.22.25 | Rubber pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | 160A.22.260 | Oil pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 616022067900 | Oil outlet pipe sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| 26 | 616022087900 | Oil outlet pipe sub-assy | 1 | 1 | |||||||||||
| 616022077900 | 616022077900 | Turbosuper charger lower oil pipe outlet sub-assy | 1 | 1 | |||||||||||
| 27 | 616022018200 | Oil inlet pipe lor lurbocharger sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 27 | 616022028200 | Oil inlet pipe for turbocharger sub-assy | 1 | 1 | 1 | ||||||||||
| 27 | 616022118200 | Oil inlet pipe for tlurbocharger sub-assy | 1 | 1 | |||||||||||
| 27 | 616022128200 | Oil inlet pipe for turbocharger sub-assy | 1 | 1 | |||||||||||
| 28 | 160Z.22.102 | Connector | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 29 | 616022010005 | Shim | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | ||
| 30 | 616022010004 | Pipe connector | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | ||
| 31 | 616022030800 | Camshaft oil inlet pipe | 6 | 1 | 6 | 6 | 6 | 1 | 6 | 1 | 6 | 1 | 6 | ||
| 32 | 616022031000 | Camshaft oil inlet pipe | 1 | 6 | 1 | 1 | 1 | 6 | 1 | 6 | 1 | 6 | 1 | ||
| 33 | 616022010002 | Clamp | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 34 | 616022010003 | Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 35 | 616022023000 | Oil outlet pipe for fine filter sub-assy | 1 | 1 | 1 | 1 | |||||||||
| 616022013000 | 616022013000 | Oil inlet pipe for turbocharger sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 36 | 616022110300 | Oil pressure for lurbocharger sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 37 | 616022110003 | Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 38 | 616022110002 | Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B1 | 160A.13.83 | Screw | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| B2 | 160A.13.71 | Copper washer | 52 | 64 | 52 | 52 | 52 | 64 | 52 | 64 | 52 | 64 | 52 | 64 | |
| B3 | M24x15JB/T6013 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B4 | 160A.13.42 | Copper-asbestos washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| B5 | 160A.13.47 | Copper washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B6 | M10x25GB/T5783 | Hexagon bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| B7 | 10GB/T93 | Spring washer | 8 | 8 | 8 | 7 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B8 | 8GB/T93 | Sping washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B9 | M8x35GB/T5783 | Hexagon nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 2 | |
| B10 | 160A.13.08 | Copper-asbestos washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B11 | M10GB/T923 | Cup nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B12 | 160A.13.64 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B13 | M10x16GB/T5783 | Hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B14 | 160A.13.36 | Copper-asbestos washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| В15 | 90017510033 | O-ring | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| В16 | 90011270066 | Hexagon nul | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В17 | 90014010012 | Single Coil Spring Lock Washer, Normal Type | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В18 | 90011270077 | Hexagon head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 2 | 1 |
