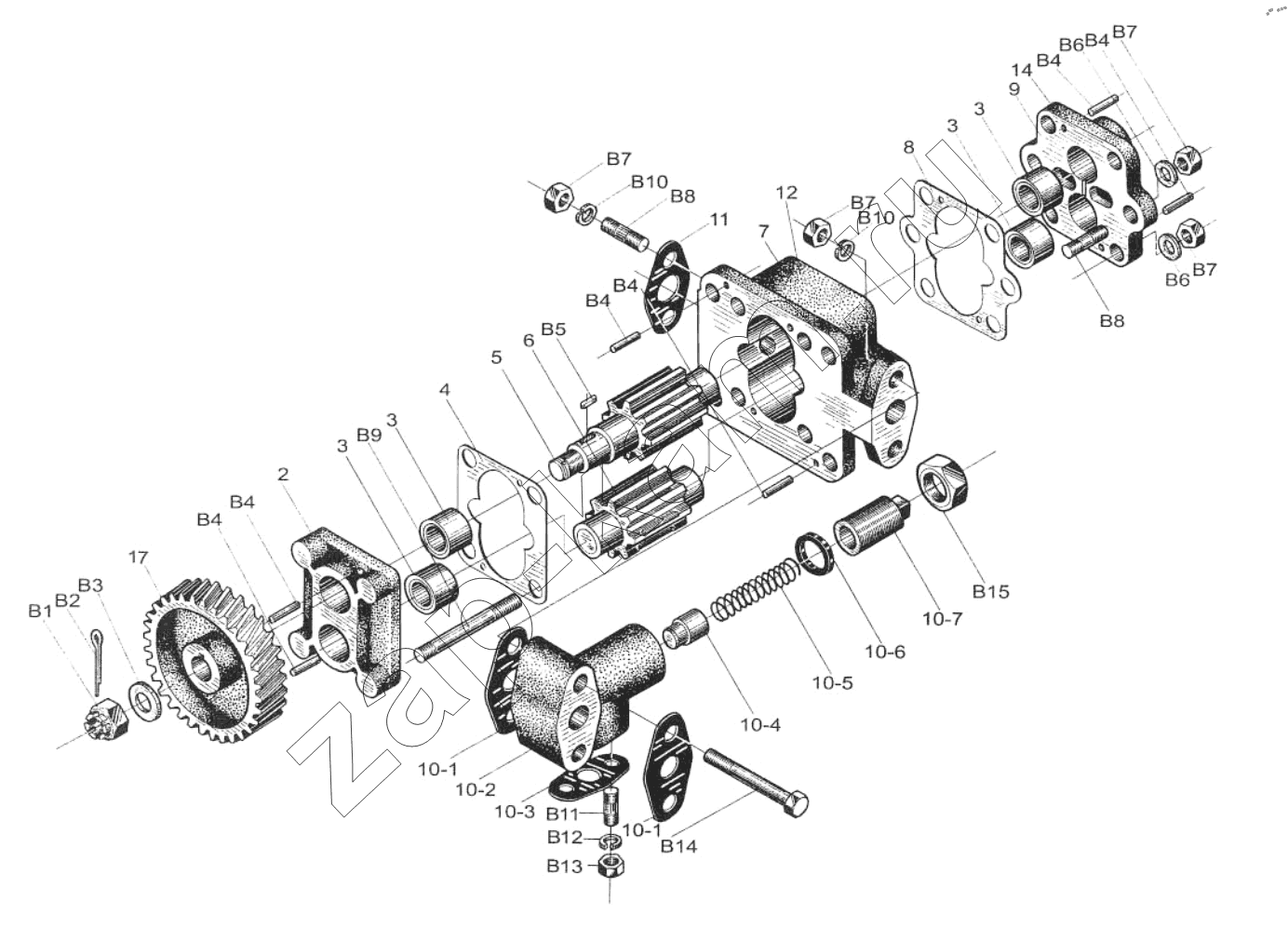

Oil Pump Assembly
/ Weichai R6160
2
3
3
3
3
4
5
6
7
8
9
10-1
10-1
10-2
10-3
10-4
10-5
10-6
10-7
11
12
14
17
B1
B2
B3
B4
B4
B4
B4
B4
B4
B5
B6
B6
B7
B7
B7
B7
B8
B8
B9
B10
B10
B11
B12
B13
B14
B15
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160A.11B.00 | 160A.11B.00 | Oil pump sub-assy | 1 | 1 | 1 | ||||||||||
| 6160ZC1.11B.00 | 6160ZC1.11B.00 | Oil pump sub-assy | 1 | 1 | 1 | ||||||||||
| 616011010000 | 616011010000 | Oil pump sub-assy | 1 | 1 | 1 | 1 | |||||||||
| 616011020000 | 616011020000 | Oil pump sub-assy | 1 | ||||||||||||
| 1 | 160Z.11.36 | Driving gear | 1 | 1 | 1 | 1 | 1 | ||||||||
| 2 | 160A.11.24 | Rear cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 3 | 160А.11.22 | Bush | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| 4 | 160А.11.33 | Caskcl | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 5 | 160А.11.14А | Driving gear | 1 | 1 | 1 | 1 | |||||||||
| 6 | 160A.11.11 | Driven gear | 1 | 1 | 1 | 1 | |||||||||
| 7 | 160А.11.04А | Oil pump body | 1 | 1 | |||||||||||
| 8 | 160A.11.29 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 9 | 160A.11.21A | Front cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 10 | 160А.11.10А | Pressure regulating valve sub-assy | 1 | 1 | 1 | 1 | |||||||||
| 10 | 616011010010 | Pressure regulating valve sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 10-1 | 160А.11.10.06 | Gaske | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 10-2 | 160А.11.10.01 В | Pressure regulating valve body | 1 | 1 | 1 | 1 | |||||||||
| 10-3 | 160A.11.10.08 | Gaske | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 10-4 | 160A.11.10.03 | Valve | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 10-5 | 160А.11.10.05 | Spring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| 10-6 | 160А.11.10.09A | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| 10-7 | 160A.11.10.04A | Adjusting screw | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 10-8 | 1607.11.20.01 | Pressure regulating valve body | 1 | 1 | |||||||||||
| 10-9 | 616011010011 | Adjusting screw | 1 | 1 | |||||||||||
| 11 | 160A.11.27 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 12 | 160Z.11.41 | Oil pump body | 1 | 1 | 1 | ||||||||||
| 13 | 160Z.11.35 | Driving gear | 1 | 1 | |||||||||||
| 14 | 160Z.11.34 | Oil pump body | |||||||||||||
| 15 | 160Z.11.39 | Oil pump body | 1 | 1 | |||||||||||
| 16 | 160A.13.49 | Flange gaskel | 1 | 1 | |||||||||||
| 17 | 160Z.11.37 | Transmission gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| B1 | GB/T9457-HY | Slotted nut | 1 | 1 | 1 | 1 | 1 | ||||||||
| B2 | GB/T91-ZnD | Cotter pin | 1 | 1 | 1 | 1 | 1 | ||||||||
| B3 | Q40116 | Washer | 1 | 1 | 1 | 1 | 1 | ||||||||
| B4 | GB117 | Dowel pin | 6 | 6 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | ||
| B5 | GB/T1096 | Flat key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B6 | Q40110 | Washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| B7 | GB/T6170-8-H-Y | Hexagon nut | 10 | 8 | 10 | 12 | 12 | 12 | 12 | 12 | 12 | 8 | 10 | 8 | |
| B8 | GB/T898-8.8-HY | Double end stud | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 3 | 3 | 3 | |
| B9 | GB/T898-8.8-HY | Double end stud | 4 | 4 | 4 | 4 | 4 | 4 | |||||||
| B10 | GB/T-93 | Spring washer | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 4 | 4 | 4 | |
| B11 | GB98-8.8-HY | Stud | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| B12 | GB93 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| B13 | GB6170-H Y | Hexagon nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| B14 | GB/T782 | Hexagon bolt | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| B15 | GB6173-HY | Thin hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B16 | GB/T898-8.8-Н Y | Stud | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| B17 | M10x95 GB/T98-8.8-H-Y | Stud | 4 | 4 | 4 | 4 | 4 | 4 | |||||||
| B18 | 160Z.11.42 | Hexagon bolt | 1 | 1 | 1 | ||||||||||
| B18 | M10x40 | Hexagon bolt | 1 | 1 | 1 | ||||||||||
| B18 | GB/T5783-8.8-H-Y | Hexagon bolt | 1 | 1 | 1 | ||||||||||
| B19 | 18GB/T856-H-Y | External lab washer | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| B20 | GB/T6171-8-H-Y | Hexagon nut | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| B21 | GB308 | Steel ball | 1 | 1 | 1 | 1 | 1 |
