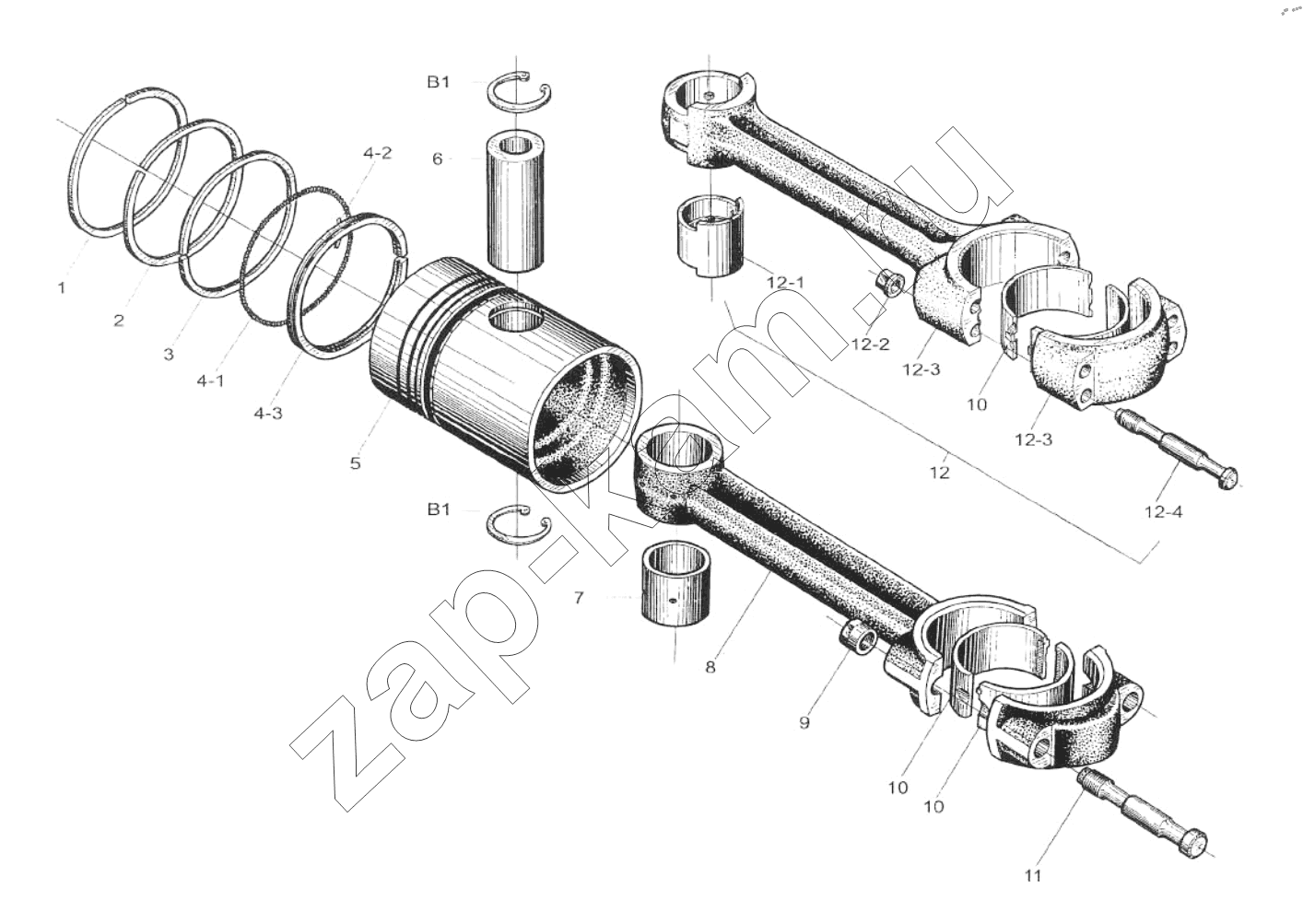

Piston and Connecting Rod Assembly
/ Weichai R6160
1
2
3
4-1
4-2
4-3
5
6
7
8
9
10
10
10
10
10
10
10
10
10
11
B1
B1
B1
B1
B1
12
12-1
12-2
12-3
12-3
12-4
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160А-6.05А.00 | 160А-6.05А.00 | Piston and connecting rod assembly | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
| 160ZC6.05.00 | 160ZC6.05.00 | Piston and connecting rod assembly | 6 | 6 | 6 | 6 | 6 | ||||||||
| 616005020000 | 616005020000 | Piston anil connecting rod assembly | 6 | ||||||||||||
| 1 | 160А.05.12В | Barrel ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 1 | 616005020012 | Barrel ring | 6 | ||||||||||||
| 2 | 160A.05.02С | Rectangular ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 2 | 616005020006 | Rectangular ring | 6 | ||||||||||||
| 3 | 160A.05.02B | Conical ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 3 | 616005020007 | Conical ring | 6 | ||||||||||||
| 4 | 160A.05.20 | Sprial spring oil ring sub-assy | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 4 | 616005022000 | Sprial spring oil ring sub-assy | 6 | ||||||||||||
| 4-1 | 160A.05.20.02 | Spiral slay spring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 4-1 | 616005022002 | Spiral slay spring | 6 | ||||||||||||
| 4-2 | 160A05.20.03 | Pin | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 4-2 | 616005022003 | Pin | 6 | ||||||||||||
| 4-3 | 160A.05.20.01 | Oil ring body | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| 4-3 | 616005022001 | Oil ring body | 6 | ||||||||||||
| 5 | 160A.05.23А | Piston | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
| 5 | 160Z.05.27A | Piston | 6 | 6 | 6 | 6 | 6 | ||||||||
| 5 | 616005020027 | Piston | 6 | ||||||||||||
| 6 | 160A.05.06A | Piston pin | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
| 6 | 160Z.05.31 | Piston pin | 6 | 6 | 6 | 6 | 6 | ||||||||
| 6 | 616005020031 | Piston pin | 6 | ||||||||||||
| 7 | 160A.05.05 | Connecting rod bushing | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
| 7 | 160Z.05.29 | Connecting rod bushing | 6 | 6 | 6 | 6 | 6 | ||||||||
| 8 | 160A.05.13 | Connecting rod | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
| 8 | 160Z.05.2S | Connecting rod | 6 | 6 | 6 | 6 | 6 | ||||||||
| 9 | 616005000021 | Connecting rod nul | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||
| 10 | 160A.05.14А | Connecting rod bearing | 12 | 12 | 12 | 12 | 12 | 12 | |||||||
| 10 | 160Z.05.14 | Connecting rod bearing | 12 | 12 | 12 | 12 | 12 | ||||||||
| 10 | 616005020004 | Connecting rod bearing | 12 | ||||||||||||
| 11 | 616005000019 | Connecting rod bolt | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||
| B1 | 55 GB/T893 | Retainer for hole | 12 | 12 | 12 | 12 | 12 | 12 | |||||||
| B1 | 60 GB/T893 | Retainer for hole | 12 | 12 | 12 | 12 | 12 | 12 | |||||||
| 12 | 616005020010 | Connecting rod Assembly | 6 | ||||||||||||
| 12-1 | 616005020005 | Connecting rod bushing | 6 | ||||||||||||
| 12-2 | 616005020002 | Connecting rod nut | 24 | ||||||||||||
| 12-3 | 616005020003 | Connecting rod | 6 | ||||||||||||
| 12-4 | 616005020001 | Connecting rod bolt | 24 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
