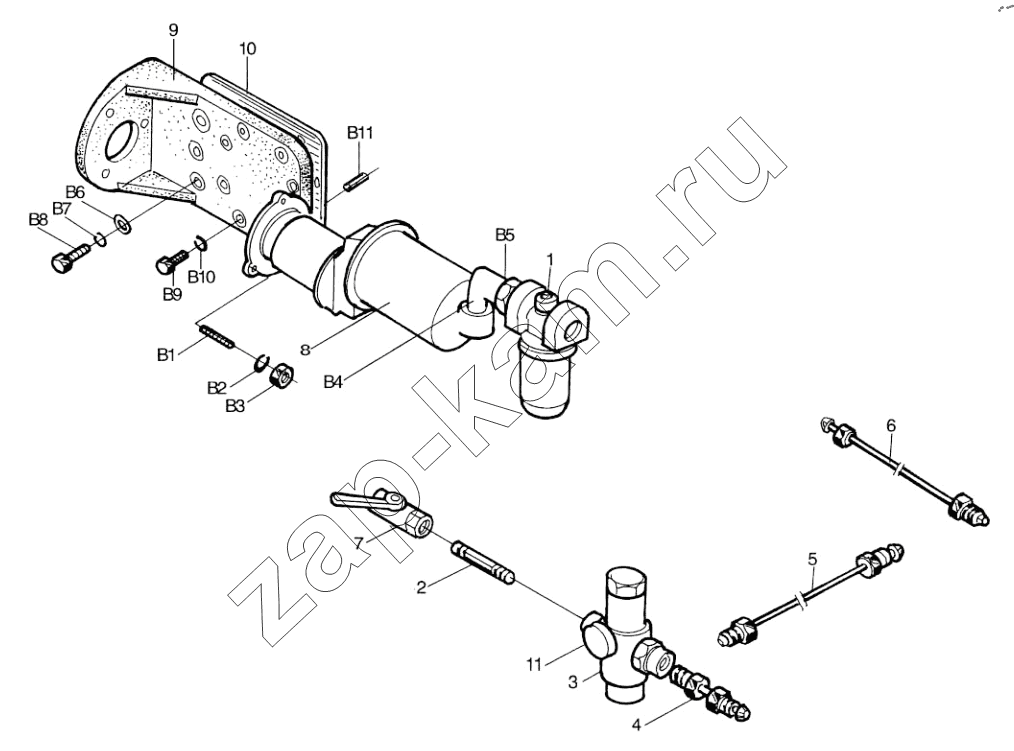

Pneumatic Motor Assembly
/ Weichai R6160
1
2
3
4
5
6
7
8
9
10
11
B1
B2
B3
B4
В5
В6
В7
В8
В9
В10
В11
| Поз. | Артикул | Название детали | R6160 A-1 | |
|---|---|---|---|---|
| 6160ZC.29.00 | 6160ZC.29.00 | Pneumatic motor assembly | 1 | |
| 1 | 170Z.29.01 | Oil fogger | 1 | |
| 2 | 170Z.29.14 | Connecting pipe between pressure release valve and switch valve | 1 | |
| 3 | 170Z.29.12 | Lower pressure valve | 1 | |
| 4 | 170Z.29.16 | Connecting pipe subassembly betwenn air bottle anil pressure release valve | 1 | |
| 5 | 200.20.2S0 | Connecting pipe subassembly for air bottle | 1 | |
| 6 | 160A.20.120 | Air charging pipe | 1 | |
| 7 | 170Z.29.15 | Switch valve | 1 | |
| 8 | 160Z.29.01 | Pneamatic motor | 1 | |
| 9 | 160Z.29.02 | Saddle | 1 | |
| 10 | 160A.09.07 | Gasket | 1 | |
| 11 | 170Z.29.03 | Gas pressure gauge | 1 | |
| B1 | M16x35 GB/T898-8.8-H-Y | Stud | 1 | |
| B2 | Q40316F9 | Spring washer | 1 | |
| B3 | M16 GB/T6170-H-Y | Hexagon nut | 1 | |
| B4 | 90017110003 | Connector | 1 | |
| В5 | 90017110001 | Return beml | 1 | |
| В6 | Q40114 | Plain washer | 3 | |
| В7 | 14GB/T93 | Spring washer | 3 | |
| В8 | М14х45 GB/T5783 | Hexagon bolt | 3 | |
| В9 | М8х35 GB/T5783 | Hexagon bolt | 8 | |
| В10 | 8GB/T93 | Sping washer | 8 | |
| В11 | 90015160005 | Pin | 2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
