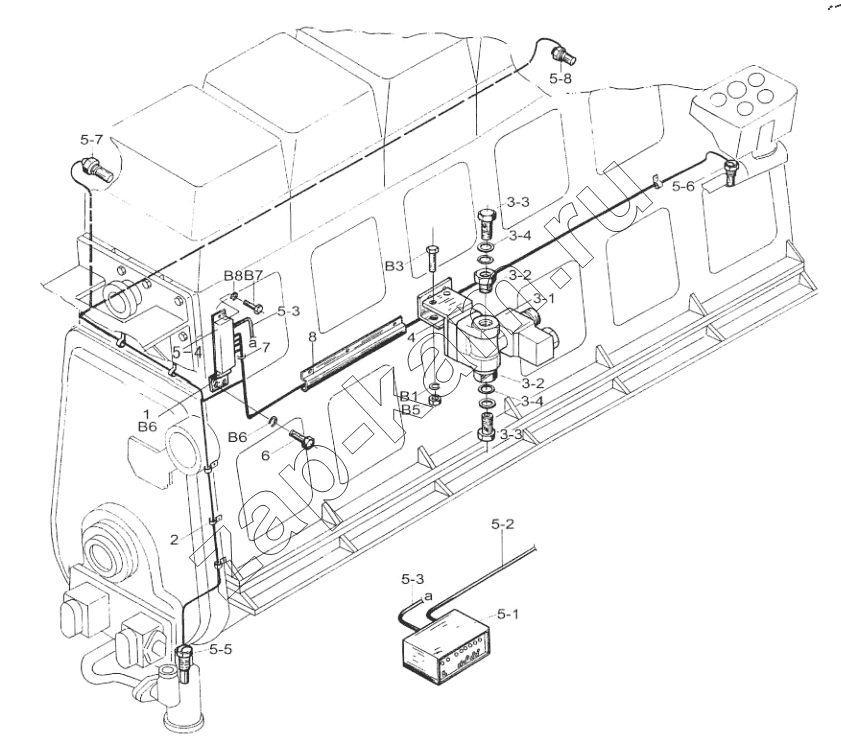

Safeguard Assembly
/ Weichai R6160
1
2
3-1
3-2
3-2
3-3
3-4
3-4
4
5-1
5-2
5-3
5-3
5-4
5-5
5-6
5-7
5-8
6
7
8
B1
B3
В5
В6
В6
В7
В8
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160Z.94.01 | Support | 1 | ||||||||||||
| 1 | 160Z.94.38..A | Support | 1 | 1 | 1 | ||||||||||
| 1 | 616094140001 | Support | 1 | 1 | 1 | ||||||||||
| 1 | 616094160001 | Support | 1 | 1 | 1 | 1 | 1 | ||||||||
| 2 | 160А.22.22 | Oil pipe clamp | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| 2 | 6160ZCS.94.10 | Electromagnetic valve sub-assy | 1 | 1 | 1 | 1 | |||||||||
| 2 | 6160ZC7.94.10 | Electromagnetic valve sub-assy | 1 | 1 | |||||||||||
| 3-1 | 160Z.94.10.07 | Valve | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 3-2 | 160Z.94.10.08 | Pipe connector | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| 3-3 | 1212A.30.01 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| 3-4 | 505-071 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | |||||||
| 4 | 160Z.94.10.09 | Bracket | 1 | 1 | 1 | 1 | |||||||||
| 4 | 160Z.94.10.11 | Bracket | 1 | 1 | |||||||||||
| 5 | 616094130100 | Safeguard assembly | 1 | 1 | 1 | 1 | |||||||||
| 5 | 6160ZC5.94.110 | Safeguard assembly | 1 | ||||||||||||
| 5 | 616094120100 | Safeguard assembly | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5 | 616094210100 | Safeguard assembly | 1 | ||||||||||||
| 5-1 | 6160ZC.94.110.01A | Protect device | 1 | ||||||||||||
| 5-2 | 6160A.94.110.02 | Wire | 1 | ||||||||||||
| 5-2 | 616094030103 | Wire | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5-3 | 616QZC.94.110.02 | Wire | 1 | ||||||||||||
| 616094030104 | 616094030104 | Tele cable | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5-4 | 6160ZC.94.110.03 | Cable box and wire | 1 | ||||||||||||
| 5-4 | 616094030110 | Cable box and wire | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5-4 | 616094130101 | Cable box and wire | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5-5 | 6160A.94.110.05 | Oil temperature warning | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5-6 | 6160ZC.94.110.04 | Rotating speed sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 5-6 | 6160A.94.110.04 | Rotating speed sensor | 1 | 1 | 1 | 1 | |||||||||
| 5-6 | 616094210104 | Rotating speed sensor | 1 | ||||||||||||
| 5-7 | 6160А.94.110.06 | Water temperature warning | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5-8 | 6160А.94.110.07 | Oil pressure warning switch | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5-9 | 616094030101 | Wire | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5-10 | 616094030102 | Wire | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5-11 | 616094120101 | Box | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5-12 | 616094130104 | Wire | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5-13 | 616094130105 | Wire | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5-14 | 616094120102 | Box | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5-14 | 616094130102 | Box | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 616094130103 | 616094130103 | Oil pressure sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | 160А.94.55А | Bolt | 1 | 1 | 1 | 2 | 1 | 1 | 1 | ||||||
| 7 | 90003171697 | Хомут пластмассовый | 6 | 6 | 6 | 10 | 12 | 10 | 10 | 10 | 10 | 6 | 6 | 6 | |
| 8 | 616094130202 | Cablle protecting housing sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 8 | 616094130201 | Cablle protecting housing sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| B1 | 8 GB/T93 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| B2 | 10 GB/T93 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| B3 | М8x20 GB/T5783 | Hexagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| В4 | М10х20 GB/T5783 | Hexagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| В5 | M8 GB/T6170-H-Y | Hexagon nut | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
| В6 | 12 GB/T93 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| В7 | М6x6 GB/T 5783 | Hexagon bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В8 | 6 GB/T93 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
