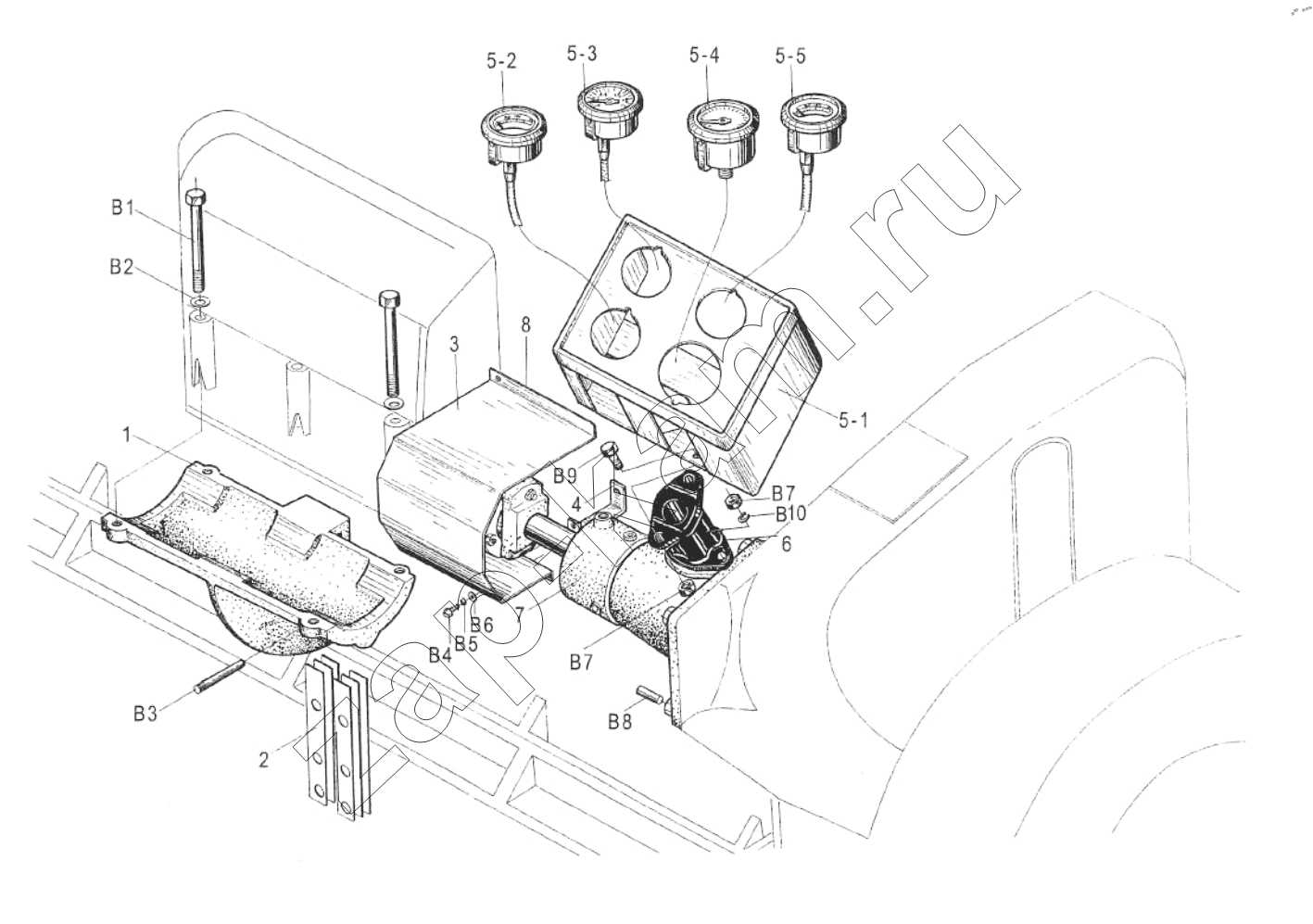

Transmission Shaft & Instrument Assembly
/ Weichai R6160
1
2
3
4
5-1
5-2
5-3
5-4
5-5
6
7
8
B1
В2
В3
В4
В5
В6
В7
В7
В8
В9
B10
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 160Z.07.28 | Fuel pump support | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 160A.07.08 | Adjusting shim | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 160Z.07.41 | Connector guide bousing | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 3 | 160Z.07.42 | Connector guide housing | 1 | 1 | 1 | 1 | 1 | ||||||||
| 3 | 616007100034 | Connector guide housing | 1 | ||||||||||||
| 4 | 160Z.07.35 | Support | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 5 | 616007020300 | Instrument hoard sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5 | 616007010300 | Instniment hoard sub-assy | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5 | 616007100300 | Instrument board sub-assy | |||||||||||||
| 5-1 | 616007000101 | Instrument board | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| 5-1 | 616007020101 | Instrument board | 1 | 1 | 1 | 1 | 1 | ||||||||
| 5-2 | 817027011303 | Water temperature gage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5-3 | 617027001301 | Oil pressure gage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5-4 | 616007010102 | Tachometer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5-4 | 616007100102 | Tachometer | |||||||||||||
| 5-5 | 617027011302 | Oil temperature gage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | 160A.07.20A | Supprot sub-assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 7 | 616007010200 | Transmission Shalt Assembly | 1 | 1 | 1 | ||||||||||
| 7 | 616007100200 | Transmission Shall Assembly | 1 | ||||||||||||
| 7 | 616007030200 | Transmission Shafl Assembly | 1 | 1 | |||||||||||
| 7 | 616007040200 | Transmission Shafl Assembly | 1 | 1 | 1 | ||||||||||
| 7 | 616007050200 | Transmission Shafl Assembly | 1 | 1 | 1 | ||||||||||
| 8 | 160A.07.31 | Support | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B1 | GB/T5782 | Hexagon head bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В2 | GB/T849 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В3 | GB/T881 | Taper pins withexlernal thread | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В4 | GB/T67-ZnD | Slotted pen head screw | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В5 | GB/T93 | Spring washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В6 | GB/T97.1-140HV-ZnD | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| В7 | GB/T6170-8-H-Y | Hexagon nut | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| В8 | GB/T117 | Taper pins | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| В9 | GB/T5783-8-8-Н-У | Hexagon bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| B10 | GB/T93 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
