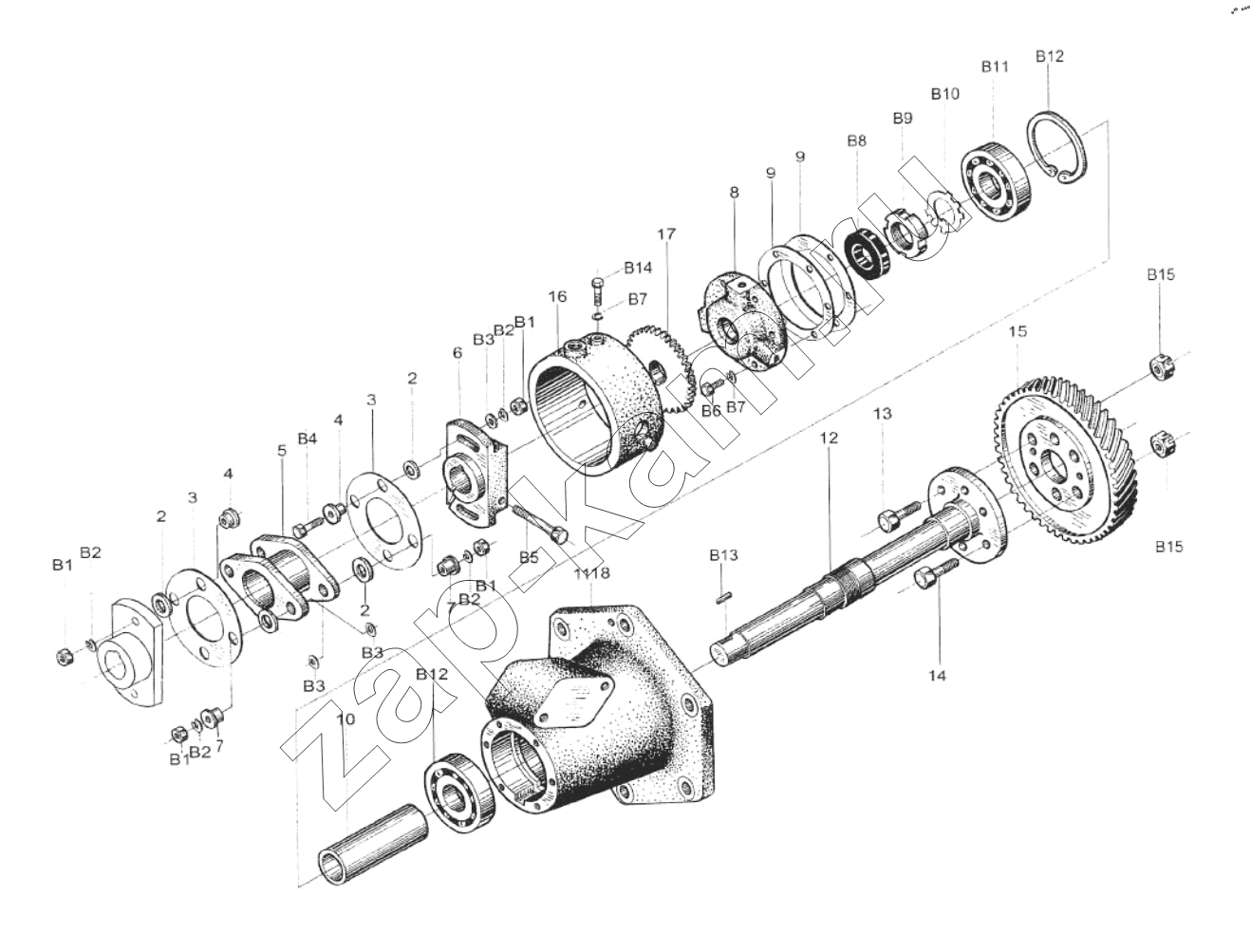

Transmission Shaft Sub-assembly
/ Weichai R6160
2
2
2
3
3
4
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
B1
B1
B1
B1
B2
B2
B2
B2
B3
B3
B3
B4
B5
B6
B7
B7
В8
В9
B10
B11
B12
B12
B13
B14
B15
B15
| Поз. | Артикул | Название детали | R6160 ZC1 | R6160 ZC2 | R6160 ZC3 | R6160 ZC4 | R6160 A-1 | R6160 A-2 | R6160 A-3 | R6160 A-4 | R6160 A-5 | R6160 A-6 | R6160 Z-1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 616007010200 | Transmission Shalt Assembly | 1 | 1 | 1 | ||||||||||
| 1 | 616007100200 | Transmission Shall Assembly | 1 | ||||||||||||
| 1 | 616007030200 | Transmission Shafl Assembly | 1 | 1 | |||||||||||
| 1 | 616007040200 | Transmission Shafl Assembly | 1 | 1 | 1 | ||||||||||
| 1 | 616007050200 | Transmission Shafl Assembly | 1 | 1 | 1 | ||||||||||
| 2 | 160Z.07.10.106 | Washer | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 3 | 614080123 | Упругая соединительная пластинка | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 4 | 160Z.07.10.97 | Short lining sleeve | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 5 | 160Z.07.10.121 | Connector flange assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5 | 616007100121 | Connector flange assembly | 1 | ||||||||||||
| 6 | 160Z.07.10.94 | Adjusting flange | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 160Z.07.10.98 | Long lining sleeve | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 8 | 160Z.07.10.88 | Oil seal seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 8 | 160Z.07.10.78A | Oil seal seal | 1 | ||||||||||||
| 9 | 160Z.07.10.83 | Adjusting shim | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 160Z.07.10.82 | Bearing spacing sleeve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 16OZ.O7.10.81 | Shall support | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 12 | 160Z.07.10.86C | Transmission shaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 12 | 616007100086 | Transmission shaft | 1 | ||||||||||||
| 13 | 616007000129 | Positioning bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 616007000158 | Bolt | 5 | 5 | 5 | 5 | 5 | 5 | S | 5 | 5 | 5 | 5 | 5 | |
| 15 | 160Z.07.10.101A | Cear | 1 | 1 | 1 | 1 | |||||||||
| 15 | 160Z.07.10.102A | Gear | 1 | 1 | |||||||||||
| 15 | 160Z.07.10.104 | Gear | 1 | 1 | 1 | ||||||||||
| 15 | 160Z.07.10.105 | Gear | 1 | 1 | 1 | ||||||||||
| 16 | 160Z.07.10.84B | Gear case | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 17 | 160Z.07.10.85B | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 18 | 616007030201 | Shaft support | 1 | 1 | 1 | 1 | 1 | ||||||||
| B1 | GB/T6170-8-НY | Hexagon nut | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B2 | GB/T93 | Spring washer | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B3 | 10GB/T97.1-140HV-Zn-D | Hexagon bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| B4 | GB/T5783-10-9-ZnD | Hexagon holt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| B5 | GB/T5783-10-9-Zn-D | Hexagon holt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| B6 | GB/T5783-8.8 -HY | Hexagon bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| B7 | GB/T93 | Spring washer | 9 | 9 | 9 | 6 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| В8 | PD30х50x10HG4-692 | Oil seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| В9 | GB/T812 | Button nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B10 | GB/T858 | Lock washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B11 | GB/T292 | Angular contalt ball bearing | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| B12 | GB/T893.1 | Retainer lor hole | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B13 | Q5510828 | Flae key | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| B14 | GB/T5783-8.8-H.Y | Hexagon bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| B15 | GB/T6176-H.Y | Slottde nut | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
