Low Pressure Oil pipe Group
/ Weichai WD10 DHD10C0009

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Timing Gear Housing Group Camshaft gear cover combination Oil-gas Separator Group Oil-gas separator assembly Dipstick Group Oil Tilling Tube Group Flywheel Housing Group Crankshaft Group Crankshaft assembly Flywheel Group Piston and Connecting Rod Group Piston ring assembly Connecting rod assembly Cylinder head assembly Cylinder head subassembly Cylinder Head Cover Group Valve Train Group Camshaft assembly Intermediate gear assembly Intake valve rocker arm Exhaust valve rocker assembly Water Outlet Pipe Group Water Inlet Pipe Group Water pump assembly Oil pump assembly Oil Pump Idle Gear Assembly Oil filter assembly Filter assembly Oil Suction Strainer Group Oil cooler assembly Injector assembly High Pressure Fuel Injection Pipe Group (01) High pressure pipe assembly High pressure pump assembly Shut-down Device Group Starter Motor Group Intake Manifold Group Air inlet pipe assembly Exhaust Manifold Group Oil Pan Group Instrument assembly High Pressure Fuel Injection Pipe Group High pressure pipe assembly High pressure pump assembly Crankshaft Pulley Group Thermostat Group Tensioner and belt combination Fuel Filter Group Fuel filter-water separator Fuel filter Low Pressure Oil pipe Group Generator Group Generator Bracket Group Turbocharger assembly Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Intercooler assembly Intercooler assembly Heat exchanger assembly Heat exchanger assembly Engine Bracket Group Packing Box Chassis Parts Group Packing Box Chassis Parts Group Parts Kit Assembly Stop booster tool

1

2

3

4

5

6

7

8

9

10

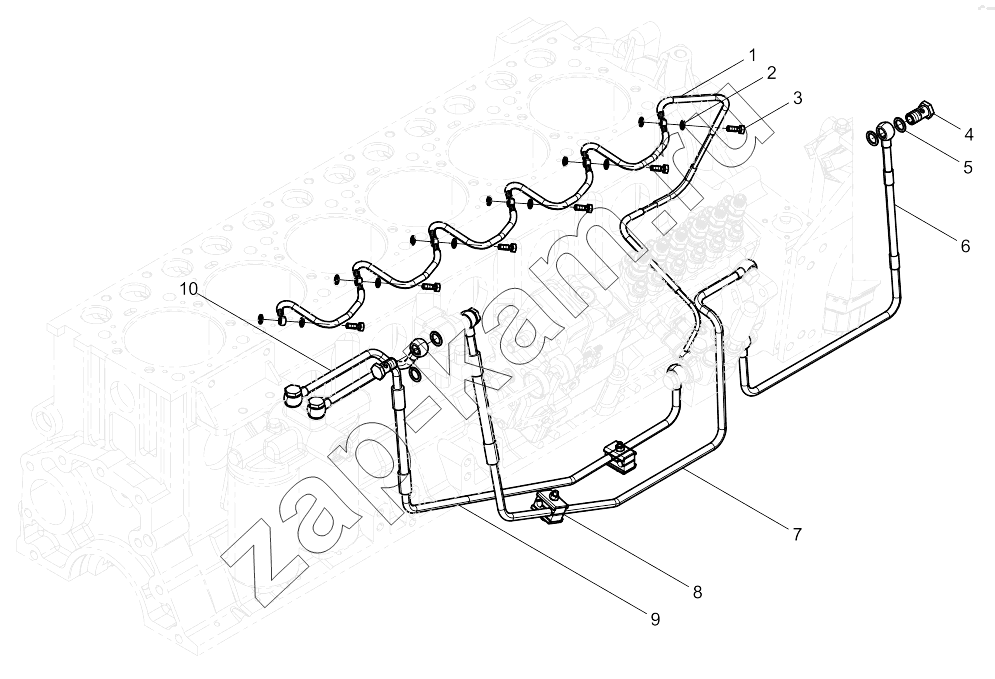

Поз.	Артикул		Название детали	Кол-во	Цена
1	612600082553		Oil return pipe assembly of injector	1;	-
2	612600080688		Seal washer	12;	-
3	61500080169		Hollow bolt	6;	-
4	90003962621		Болт	4;	-
5	90003098015		Шайба уплотнительная	8;	-
6	612600082548		Fuel pipe assembly	1;	-
7	612600082413		Solenoid valve-pump fuel pipe assembly	1;	-
8	612600082712		Pipe clamp assembly	2;	-
9	612600082412		Fuel pump-filter fuel pipe assembly	1;	-
10	612600081761		Filter-solenoid fuel pipe assembly	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
