Flywheel group
/ Weichai WD10 G220E23

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine block group Crankcase assembly Cylinder block preassembly Flywheel housing group Gear housing group Front cover group Crankshaft subassembly Crankshaft assembly Crankshaft subassembly Flywheel group Piston and connecting rod group Connecting rod assembly Piston ring set Cylinder head group Cylinder head subassembly Cylinder head cover group Cylinder head cover group Valve train group Camshaft assembly Idler gear assembly Intake rocker arm assembly Exhaust rocker arm set Crankshaft pulley group Oil pan group Oil pan assembly Dipstick group Oil pump group Oil pump idle gear set Oil strainer group Oil cooler cap group Oil filter group Oil filter Oil filling tube group Oil-gas separator group Oil separator Water pump group Water pipe connector group Water outlet pipe group Thermostat group Fan bracket group Fuel injection pump group Fuel injector group Low pressure fuel pipe group Fuel filter group Fuel filter High pressure fuel pipe group High-pressure fuel pipe assembly Intake manifold group Turbocharger group Turbocharger oil pipe group Compressor pipe group Air filter group Exhaust manifold group Muffler assembly Accelerator soft shaft group Air compressor group Air compressor assembly Air compressor set Tensioner and belt group Starter motor group Packing box chassis parts group Fuel system protector Direct delivery parts group Air cleaner Air filter body First coarse air filter Parts box group General-use wire and sensor group Alternator group Alternator bracket group

1

2

3

4

5

6

7

8

9

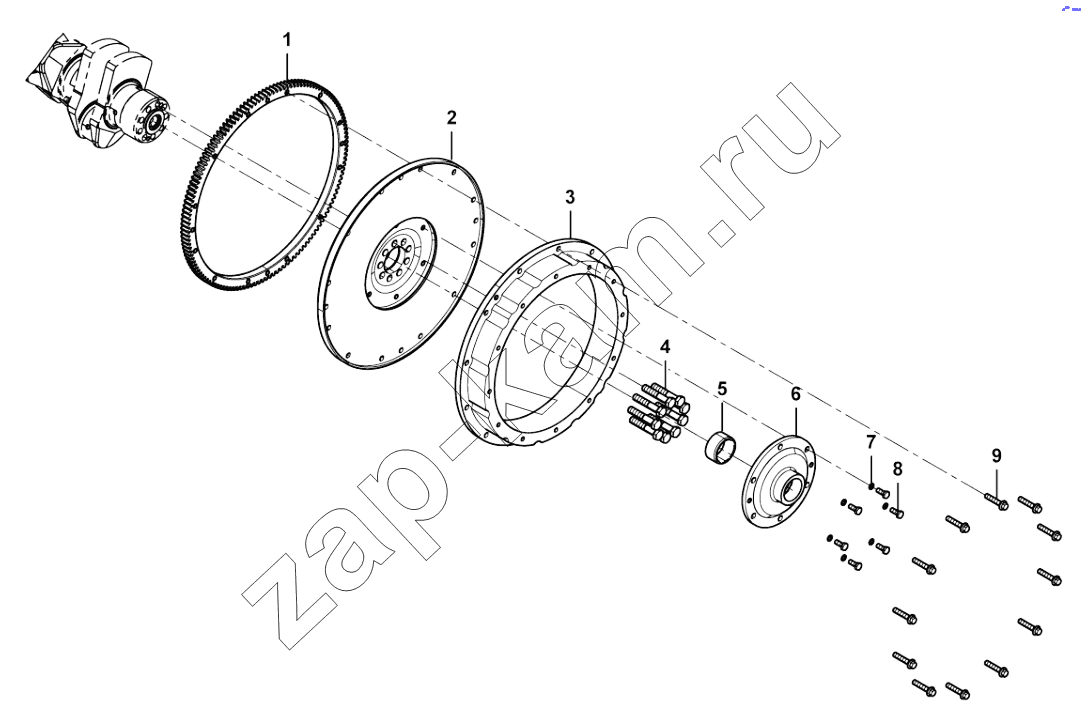

Поз.	Артикул		Название детали	Кол-во
1	2600020208		Gear ring	1;
2	612600020721		Flywheel	1;
3	615G00020002		Соединительное кольцо маховика	1;
4	612600020011		Шестиугольный головочный болт	9;
5	615G00020001		Гильза	1;
6	615G00020003		Опорная рама	1;
7	90003932024		Шайба пружинная	6;
8	90003802523		Болт	6;
9	90011430010		Hexagon Flange Bolt	12;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
