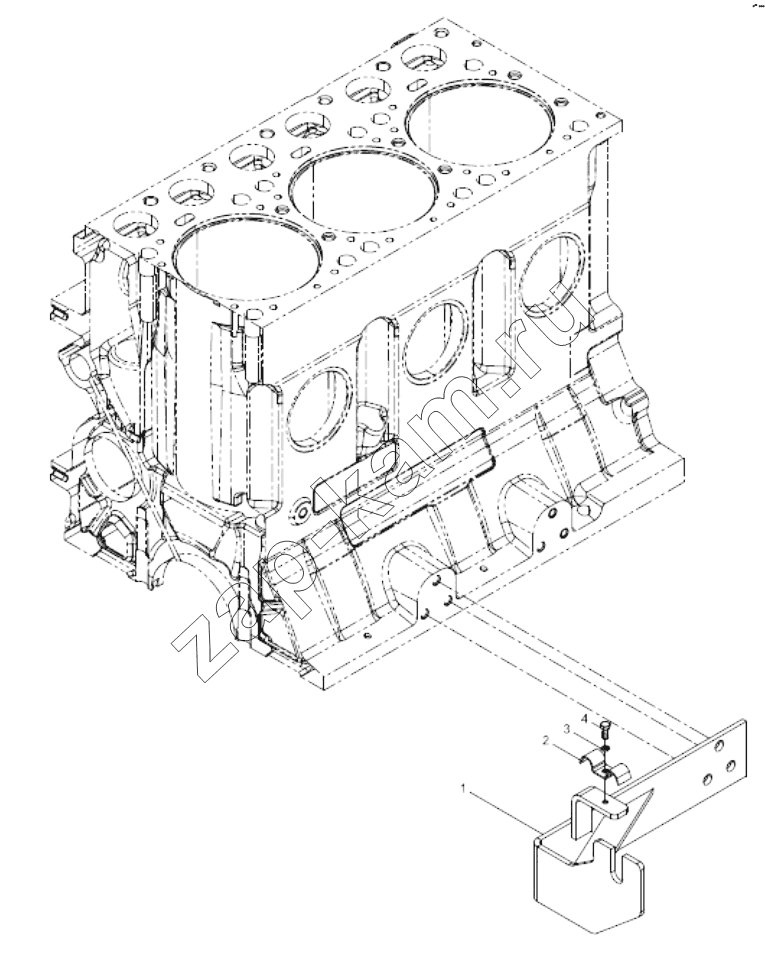

Flexible shaft group
/ Weichai WD10G220E21

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine block group 612600013825 Cylinder block preassembly Timing gear box group End cap group Oil-gas separator group 612600013168 Combined oil-gas separator Dipstick group Oil flling tube group Flywheel housing group Flexible shaft group Crankshaft group 612600020718 Crankshaft assembly Flywheel group Crankshaft pulley group Connecting rod and piston 61500030009 Connecting rod assembly 612600030051 Piston ring assembly Cylinder head group 61560040040A Cylinder head subassembly Cylinder head cover group Valve train mechanism group 612600050085 Camshaft assembly 61560050053 Middle gear assembly 612600050177 Intake rocker arm assembly 612600050178 Exhaust rocker arm assembly Water outlet pipe group Thermosat group Water pump assembly Water pipe joint group Fan bracket group Tensioner and belt group Oil cooler assembly Oil pump group 612600070364 Oil pump gear group Oil flter group 612600070351 Oil flter assembly Oil suction strainer group Injector assembly High pressure fuel injection pipe group 612600082202 High pressure fuel injection pipe assembly High pressure pump group Fuel flter group 612600081333 Fuel flter Low pressure fuel injection pipe group Generator group Generator bracket group Starter motor group Cable harness and sensor group Air inlet pipe group Air flter group Exhaust manifold group Turbocharger assembly Turbocharger oil pipe group Inlet pipe group Silencer assembly Single cylinder air compussor 612600130651 Air compussor assembly 612600130496 Air compussor group Oil pan group 612600150391 Oil pan assembly Engine bracket group Packing box chassis parts group 612600083263 Fuel system protecter Spare parts group 612600113194 Air cleaner Parts box assembly

1

2

3

4

Поз.	Артикул		Название детали	Кол-во	Цена
1	612600012995		Flexible shaft bracket	1;	-
2	612600082201		Clip	1;	-
3	90014350002		Spring washer	1;	-
4	90011270059		Hexagonal head bolt full thread	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
