Connecting rod and piston
/ Weichai WD10G220E22

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Timing Gear Housing Group Camshaft gear cover combination group Oil-gas Separator Group Oil-gas separator assembly Dipstick Group Oil Tilling Tube Group Flywheel Housing Group Accelerator Soft Shaft Group Crankshaft Group Crankshaft assembly Flywheel Group Crankshaft Pulley Group Connecting rod and piston Connecting rod assembly Piston ring assembly Cylinder head assembly Cylinder head subassembly Cylinder Head Cover Group Cylinder Head Cover Group Cylinder head cover Assy Cylinder Head Cover Group Valve Train Group Camshaft assembly Intermediate gear assembly Intake valve rocker arm Exhaust valve rocker arm assembly Water Outlet Pipe Group Thermostat Group Water pump assembly Water Pipe Connector Group Fan Bracket Group Fan and Hub Group Tensioner and Belt Assembly Oil pump assembly Oil Pump Idle Gear Assembly Oil filter assembly Oil filter assembly Oil Suction Strainer Group Oil cooler cover combination group Injector assembly High Pressure Fuel Injection Pipe Group High pressure pipe assembly High pressure pump assembly Fuel Filter Group Fuel filter Fuel filter-water separator Low Pressure Oil pipe Group Generator Group Generator Bracket Group Starter Motor Group General-use Wire and Sensor Group Intake Manifold Group Air inlet pipe assembly Air Filter Group Exhaust Manifold Group Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Air compressor Air compressor assembly Air compressor assembly Engine Bracket Group Oil Pan Group Oil pan assembly Parts Kit Assembly Direct delivery parts combination group Air filter Air filter Packing Box Chassis Parts Group

1

2

3

4

5

6

7

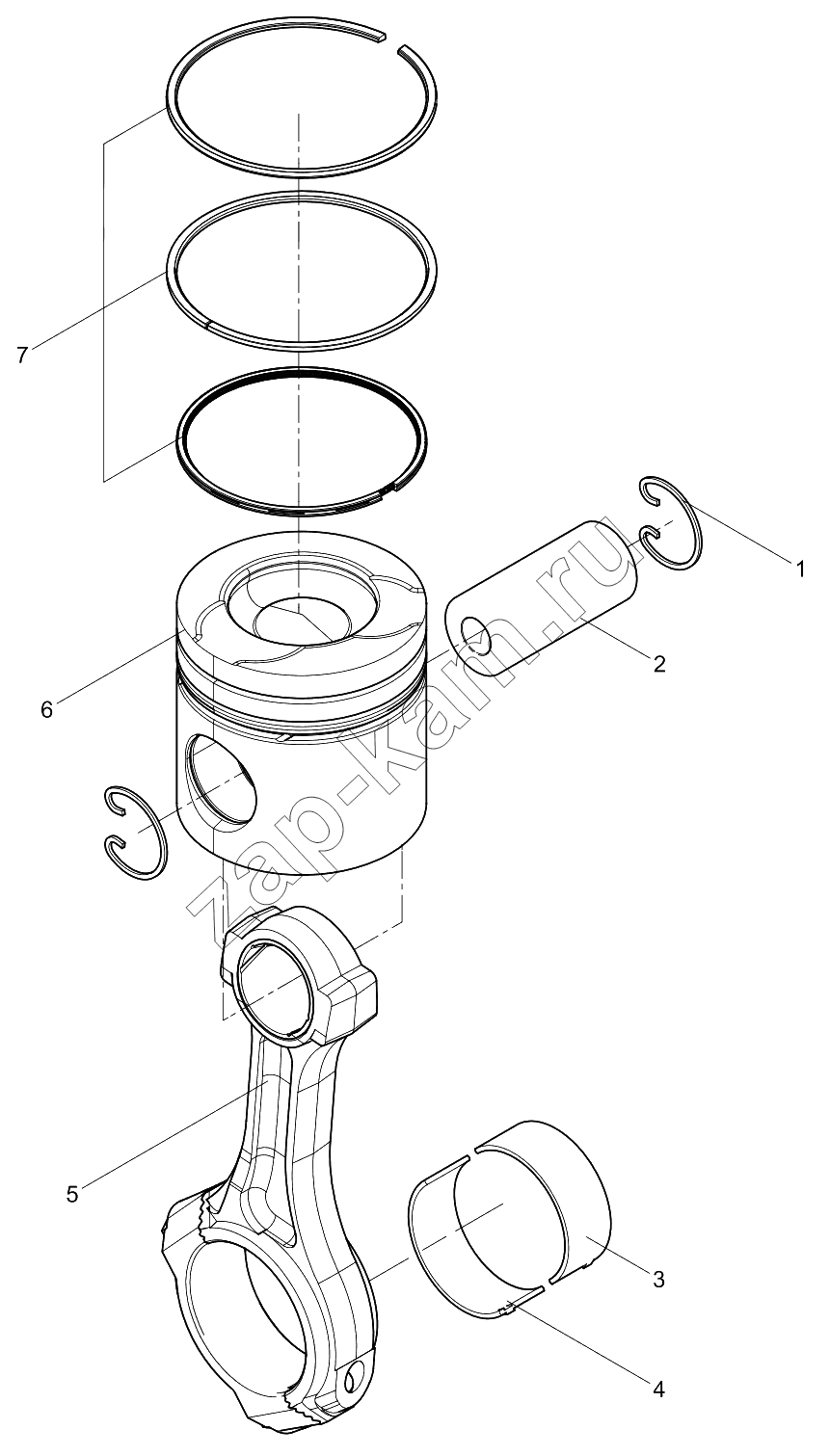

Поз.	Артикул		Название детали	Кол-во
1	81560030012		Стопорное кольцо	12;
2	61560030013		Палец поршневой	6;
3	612600030020		Вкладыш верхний	6;
4	61560030033		Вкладыш нижний	6;
5	61500030009		Шатун в сборе	6;
6	612600030010		Поршень	6;
7	612600030051		Piston ring assembly	6;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
