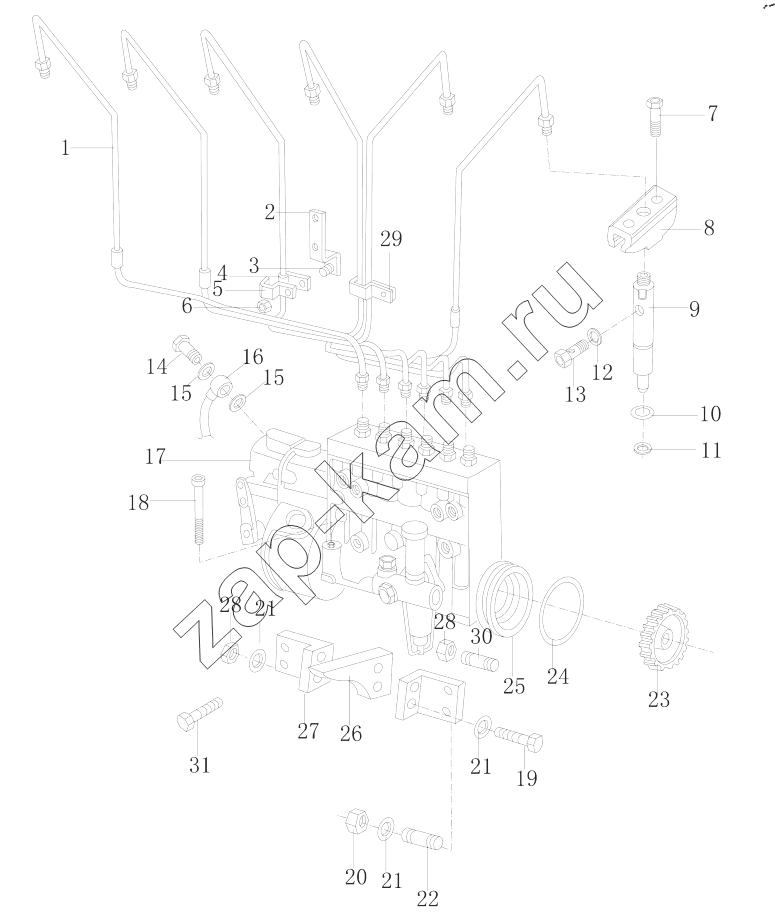

FUEL INJECTION SYSTEM
/ Weichai WD12.375
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
15
16
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
21
21
21
22
23
23
24
25
26
27
28
28
29
30
31
| Поз. | Артикул | Название детали | |||||
|---|---|---|---|---|---|---|---|
| 1 | 612600080368 | High pressure pipe | 1 | 1 | 1 | 1 | |
| 2 | 61560080172 | Кронштейн | 5 | 5 | 5 | 5 | |
| 3 | 206012832910 | Hexagon bolt | 4 | 4 | 4 | 4 | |
| 4 | 614080061 | Нижняя платинка хомут трубы | 4 | 4 | 4 | 4 | |
| 5 | 614080060 | Прижимная скоба | 4 | 4 | 4 | 4 | |
| 6 | 90003871232 | Гайка | 4 | 4 | 4 | 4 | |
| 7 | 612600080383 | Болт | 12 | 12 | 12 | 12 | |
| 8 | 61500080094А | Anchor plate | 6 | 6 | 6 | 6 | |
| 9 | 612600080311 | Injector | 6 | 6 | |||
| 9 | 612600080730 | Injector | 6 | 6 | |||
| 10 | 609070080 | Сальник | 6 | 6 | 6 | 6 | |
| 11 | 614080082 | Шайба | 6 | 6 | 6 | 6 | |
| 12 | 612600080688 | Seal washer | 12 | 12 | 12 | 12 | |
| 13 | 61500080090 | Болт | 6 | 6 | 6 | 6 | |
| 14 | 90003962612 | Болт | 2 | 2 | 2 | 2 | |
| 15 | 90003098012 | Шайба уплотнительная | 4 | 4 | 4 | 4 | |
| 16 | 61800080064 | Pipe | 1 | 1 | 1 | 1 | |
| 17 | 612600087233 | High-pressure oil pump | 1 | ||||
| 17 | 612600082233 | Fuel pump | 1 | ||||
| 17 | 612600081233 | High-pressure oil pump | 1 | ||||
| 17 | 612600087226 | High-pressure oil pump | 1 | ||||
| 17 | 612600082226 | Fuel pump | 1 | ||||
| 17 | 612600081226 | High-pressure oil pump | 1 | ||||
| 17 | 612600087232 | High-pressure oil pump | 1 | ||||
| 17 | 612600082232 | Fuel pump | 1 | ||||
| 17 | 612600081232 | High-pressure oil pump | 1 | ||||
| 17 | 612600087231 | High-pressure oil pump | 1 | ||||
| 17 | 612600082231 | Fuel pump | 1 | ||||
| 17 | 612600081231 | High-pressure oil pump | 1 | ||||
| 18 | 90003800323 | Hexagon bolt | 2 | 2 | 2 | 2 | |
| 19 | 206012890098 | Hexagon bolt | 2 | 2 | 2 | 2 | |
| 20 | 90003888452 | Гайка | 4 | 4 | 4 | 4 | |
| 21 | 90003930271 | Шайба | 10 | 10 | 10 | 10 | |
| 22 | 90003813537 | Шпилька двусторонняя | 4 | 4 | 4 | 4 | |
| 23 | 612600080675 | Gear | 1 | 1 | 1 | 1 | |
| 23 | 61800080034 | Gear | 1 | 1 | 1 | 1 | |
| 24 | 90003120088 | Seal washer | 1 | 1 | 1 | 1 | |
| 25 | 61800080015 | Flange, injection pump | 1 | 1 | 1 | 1 | |
| 26 | 61800080039 | Bracket | 1 | 1 | 1 | 1 | |
| 27 | 61800080040 | Bracket | 1 | 1 | 1 | 1 | |
| 28 | 90003871305 | Гайка | 7 | 7 | 7 | 7 | |
| 29 | 61560080174 | Хомут прижимной | 1 | 1 | 1 | 1 | |
| 30 | 90003813527 | Шпилька двусторонняя | 3 | 3 | 3 | 3 | |
| 31 | 90003802523 | Болт | 4 | 4 | 4 | 4 | |
| 32 | 90003098010 | Шайба уплотнительная | 8 | 8 | 8 | 8 | |
| 33 | 61560070012А | Oil inlet pipe | 1 | 1 | 1 | 1 | |
| 34 | 90003962607 | Болт | 1 | 1 | 1 | 1 | |
| 35 | 612600080733 | Return pipe | 1 | 1 | 1 | 1 | |
| 36 | 90003802627 | Болт | 2 | 2 | 2 | 2 | |
| 37 | 61800080041 | Bracket assembly | 1 | 1 | 1 | 1 | |
| 38 | 90003802519 | Hexagon bolt | 2 | 2 | 2 | 2 | |
| 39 | 90003559844 | Соединение масляной трубки | 1 | 1 | 1 | 1 | |
| 40 | 90003962607 | Болт | 1 | 1 | 1 | 1 | |
| 41 | 61800080062 | Fuel pipe | 1 | 1 | 1 | 1 | |
| 42 | 90003098015 | Шайба уплотнительная | 2 | 2 | 2 | 2 | |
| 43 | 206783400106 | Hollow screw | 3 | 3 | 3 | 3 | |
| 44 | 614080295 | Fuel filter | 1 | 1 | |||
| 44 | 614080295А | Fuel filter | 1 | 1 | |||
| 45 | 61800080061 | Fuel pipe | 1 | 1 | 1 | 1 | |
| 46 | 61500080171 | Seal ring | 6 | 6 | 6 | 6 |
