5. 612600040282 Cylinder head subassembly

612600040282 Cylinder head subassembly
/ Weichai WD12.420

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine block group 612600014234 Pre-assembled cylinder block Timing gear housing group Cylinder block front cover group Oil-gas separator group Dipstick group 612600012067 Oil dipstick assembly Oil tilling tube group Flywheel housing group Crankshaft group 612600020862 Crankshaft assembly Flywheel group Crankshaft pulley group Piston and connecting rod group 61800030041 Connecting rod assembly 612600030051 Piston ring assembly Cylinder head assembly Cylinder head cover Valve train group 612600050087 Camshaft assembly 61800050098 Intermediate gear assembly 612600050179 Evb exhaust rocker arm set 612600050177 Intake valve rocker arm Water outlet pipe group Water pump assembly Fan bracket group Fan and hub group Tensioner and belt assembly Oil pump assembly Oil filter assembly 612600070384 Oil filter assembly Oil suction strainer group Oil cooler assembly Injector assembly High pressure fuel injection pipe group 612600082332 High pressure pipe assembly High pressure pump assembly Fuel filter group 612600082647 Fuel filter Low pressure oil pipe group Shut-down device group 612600080517 Pneumatic accelerator assembly Generator group Generator bracket group Starter motor group General-use wire and sensor group Intake manifold group 612600115467 Air inlet pipe assembly Exhaust manifold group Turbocharger assembly Turbocharger oil pipe group Compressor pipeline group Air compressor group 612600131109 Air compressor assembly Hydraulic pump group Oil pan 612600150379 Oil pan assembly Engine bracket group Parts box group 612600082776 Fuel system protector 612600040282 Cylinder head subassembly

1

2

3

4

5

6

7

8

9

10

11

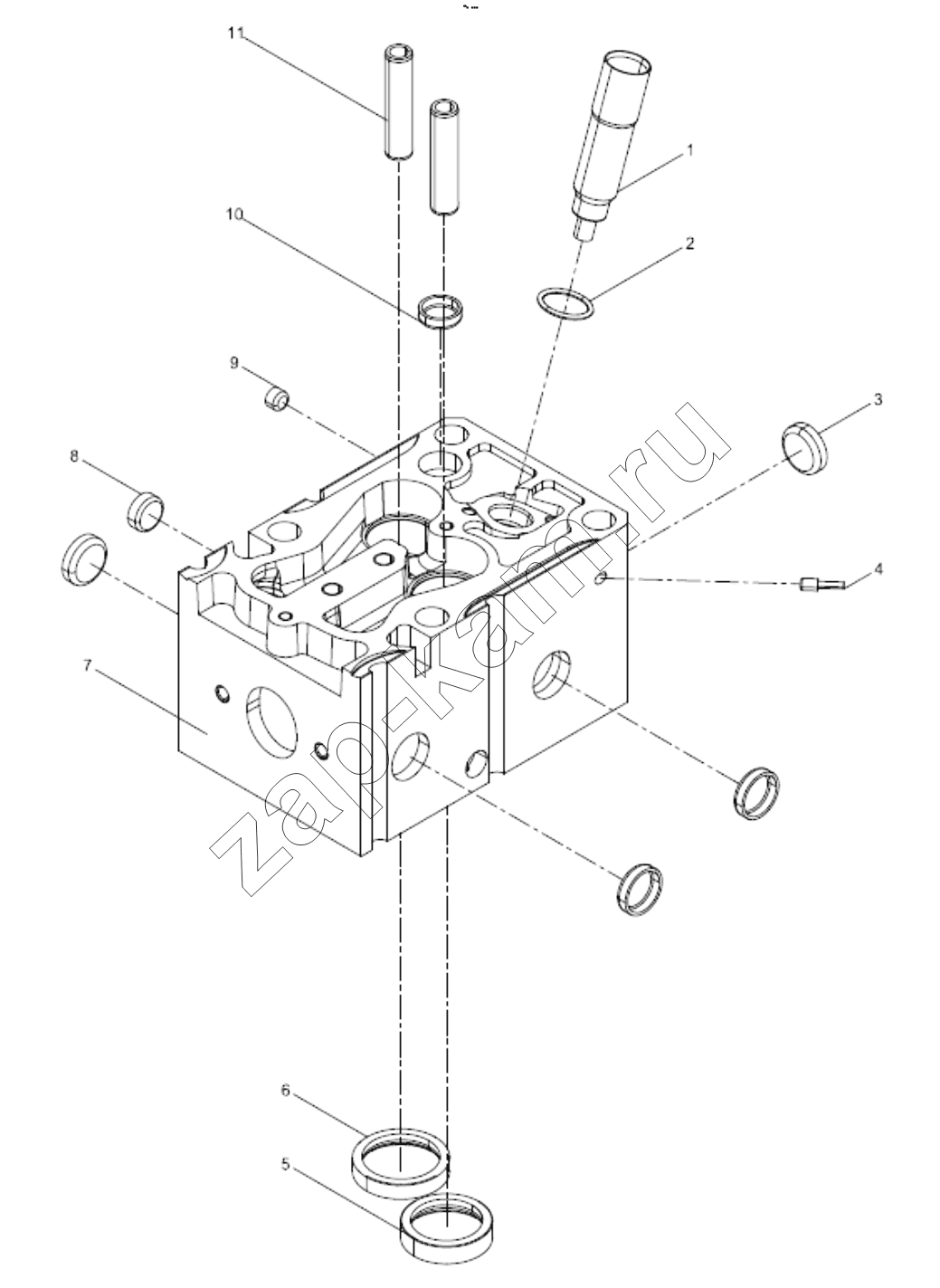

Поз.	Артикул		Название детали	Кол-во	Цена
1	612600040099 1		Injector bushing	1;	-
2	406060010 1, 25.2x3DR100N05040		Seal washer	1;	-
3	90003989294 4		Corehole plug	4;	-
4	612600040228 1		Tensioned rivet	1;	-
5	81560040037 1		Exhaust valve seat	1;	-
6	61560040057 1		Intake valve seat	1;	-
7	612600040283 1		Cylinder head	1;	-
8	90003989721 1		Corehole plug	1;	-
9	90003989277 1		Corehole plug	1;	-
10	90003989725 1		Corehole plug	1;	-
11	612600040113 2		Valve guide	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
