Connecting rod assembly
/ Weichai WD615 (DH615Q1890)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Timing Gear Housing Group Cylinder Block Front Cover Group Oil-gas Separator Group Oil-gas separator assembly Dipstick Group Oil dipstick assembly Dipstick tube assembly Oil Tilling Tube Group Flywheel Housing Group Crankshaft Group Crankshaft assembly Flywheel Group Crankshaft Pulley Group Piston and Connecting Rod Group Connecting rod assembly Piston ring assembly Cylinder head assembly Cylinder head subassembly Cylinder head cover assembly Valve Mechanism Camshaft assembly EVB Exhaust Rocker Arm Set Intake valve rocker arm Intermediate gear assembly Water Outlet Pipe Group Thermostat Group Water Inlet Pipe Group Water pump assembly Water Pipe Connector Group Tensioner and Belt Assembly Oil pump assembly Oil Pump Idle Gear Assembly Oil filter assembly Oil filter assembly Oil Suction Strainer Group Oil cooler assembly Injector assembly High Pressure Fuel Injection Pipe Group High pressure pipe assembly High pressure pump assembly Coupling assembly Fuel Filter Group Fuel filter Low Pressure Oil Pipe Group Shut-down Device Group Pneumatic throttle control mechanism Generator Group Generator Bracket Group Air Conditionning Compressor Group Starter Motor Group Flame Preheater Group Flame preheated equipment General-use Wire and Sensor Group Intake Manifold Group Air inlet pipe assembly Exhaust Manifold Group Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Air Compressor Group Transmission shaft assembly Hydraulic Pump Group Oil pan Oil pan assembly Engine Bracket Group Packing Box Chassis Parts Group Parts Kit Assembly Fuel filter-water separator

1

2

3

4

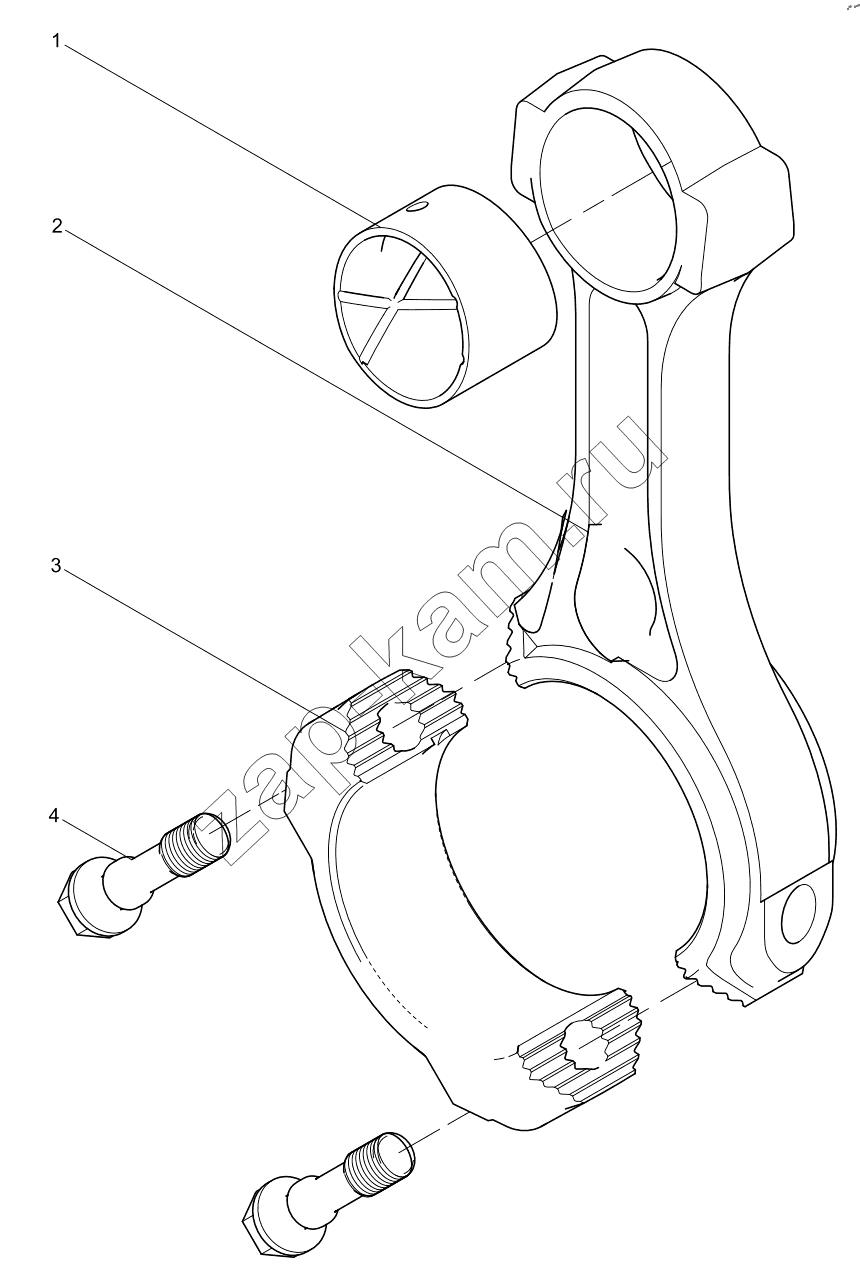

Поз.	Артикул		Название детали	Кол-во
1	61500030077		Вкладыш шатуна	6;
2	61500030008		Шатун	6;
3	61500030022		Болт	6;
4	81500030023		Основание шатуна	12;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
