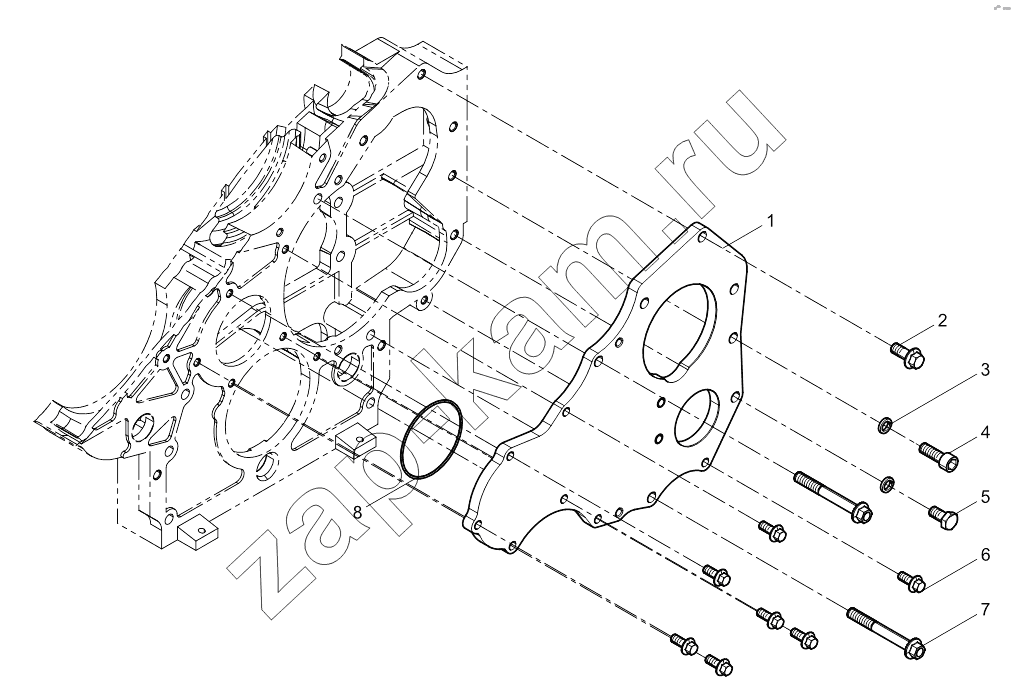

End Cover Group
/ Weichai WP10336N (Евро 3)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Timing Gear Room Assembly Crankshaft Group Crankshaft assembly Piston and Connecting Rod Group Connecting rod assembly Piston ring assembly Cylinder head assembly Cylinder head subassembly Valve Train Group Camshaft assembly EVB Exhaust Rocker Arm Set Intake valve rocker arm Intermediate gear assembly Oil pump assembly Oil Pump Idle Gear Assembly Oil cooler assembly Common rail system combined group Control Unit High pressure pump assembly High pressure pipe assembly End Cover Group Oil-gas Separator Group Oil-gas separator assembly Dipstick Group Oil dipstick assembly Oil Tilling Tube Group Flywheel Housing Group Oil Cooler Cover Bonding Set Flywheel Group Crankshaft Pulley Group Cylinder cover cover assembly Water Outlet Pipe Group Thermostat Group Water pump assembly Water Pipe Connector Group Fan and Hub Group Tensioner and Belt Assembly Oil Suction Strainer Group Oil filter assembly Oil filter assembly Fuel Filter Group Fuel Filter Assembly Fine filter Fuel strainer assembly Primary fuel filter Low Pressure Oil pipe Group Electronic Control System Harness and Sensor Group Electronic Control System Harness and Sensor Group Injector assembly Generator Group Generator Bracket Group Starter Motor Group Intake Manifold Group Air inlet pipe assembly Exhaust Manifold Group Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Rear Exhaust Manifold Group Intercooler assembly Air Compressor Group Air compressor assembly Hydraulic Pump Group Oil pan group Oil pan assembly Engine Bracket Group Parts Box Group Fuel System Protector

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во
1	612600012190		End cover	1;
2	90011430008		Hexagon Flange Bolt	1;
3	90003931122		Шайба	2;
4	90003862532		Винт (под угольник)	1;
5	90011350026		Hexagon bolt	1;
6	90011430016S		Hexagon Flange Bolt	7;
7	612600061711		Hexagon Flange Bolt	2;
8	90003120602		Уплотнительное кольцо	1;
