Exhaust pipe group
/ Weichai WP10 DHL10Q0032

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Enging block group Sylinder block preassembly Timing Gear Housing Group Crankshaft Group Crankshaft Assembly Piston and connecting rod assembly Piston and connecting rod group Piston ring assembly Piston Cylinder head subassembly Cylinder head subassebly Valve train assembly Camshaft group Idle gears assembly Rocker arm shaft set Rocker arm assembly Rocker arm assembly Evb bracket group Oil pump assembly Idle gear assembly of oil pump Oil cooler cap group The common rail system group Injection pump group High-Pressure pipe set Front cover group Oil-Gas separator assembly Oil-Gas separator asm. Dipstick assembly Oil scale assembly Oil filling tube group Flywheel shell assembly Oil cooler cover group Flywheel assembly Crankshaft pulley group crankshaft pulley group Cylinder head cover assembly Water pump group Water pump Water Pipe Connector Group Fan and Hub Group Tensioner and belt asesmbly Lubricating oil suction strainer Rotating centrifugal lubricating oil filter group Oil filter sub-assembly Fuel Filter Group Fuel prefilter Fine filter Water pump group Electronic Control System Harness and Sensor Group Speed sensor assembly Oil Pressure Sensor Set Fuel injector assembly Adapter of high pressure pipe Complete alternator 8/13m26.3 Air conditioning compressor group Starter assembly Intake pipe assembly Pipe assembly Exhaust pipe group Turbocharger asm Turbocharger oil pipe group Compressor Pipeline Group Intercooler assembly Air compressor assembly Air Compressor Assembly Hydraulic pump assembly Oil pan group Oil pan Engine bracket assembly Parts kit group Water filter-fuel separator with function of electric heat and pump fuel Dashboard assembly Single transprot parts attached to engine group (01) SCR chamber assembly Single transprot parts attached to engine group (02) SCR chamber assembly

1

2

3

4

5

6

7

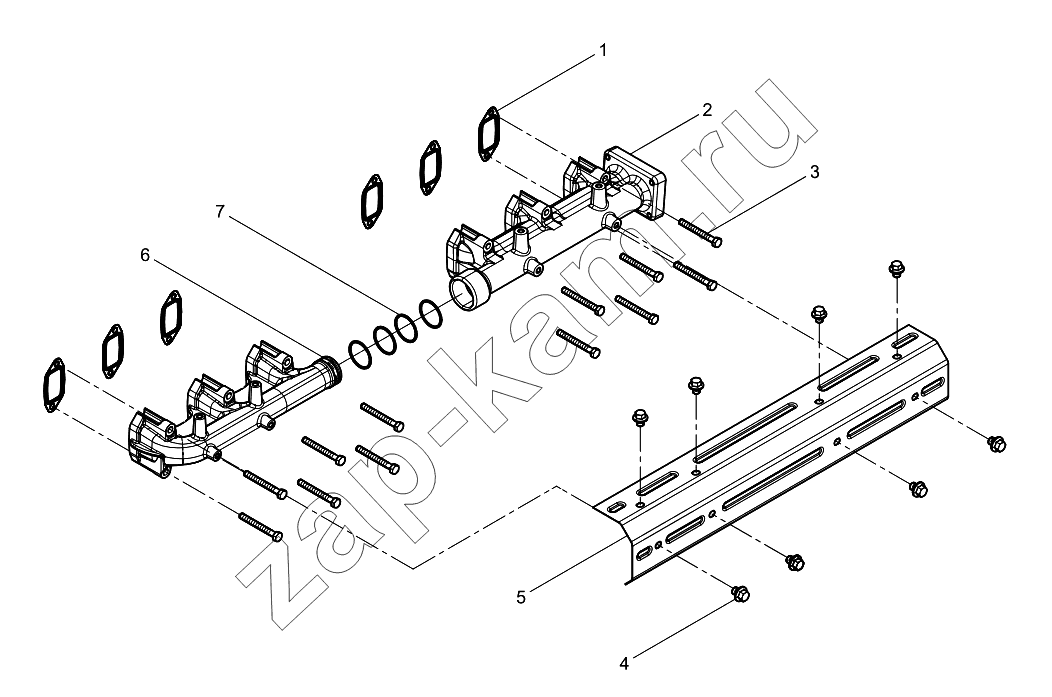

Поз.	Артикул		Название детали	Кол-во
1	612650110003		Exhasut Manifold Gasket	6;
2	612650110048		Rear exhaust pipe	1;
3	61560110104		Болт	12;
4	612640110398		Bolt	8;
5	612640110206		Turbocharger heat shield	1;
6	612650110062		Front exhaust pipe	1;
7	61260110162		Уплотняющее кольцо выхлопной трубы	4;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
