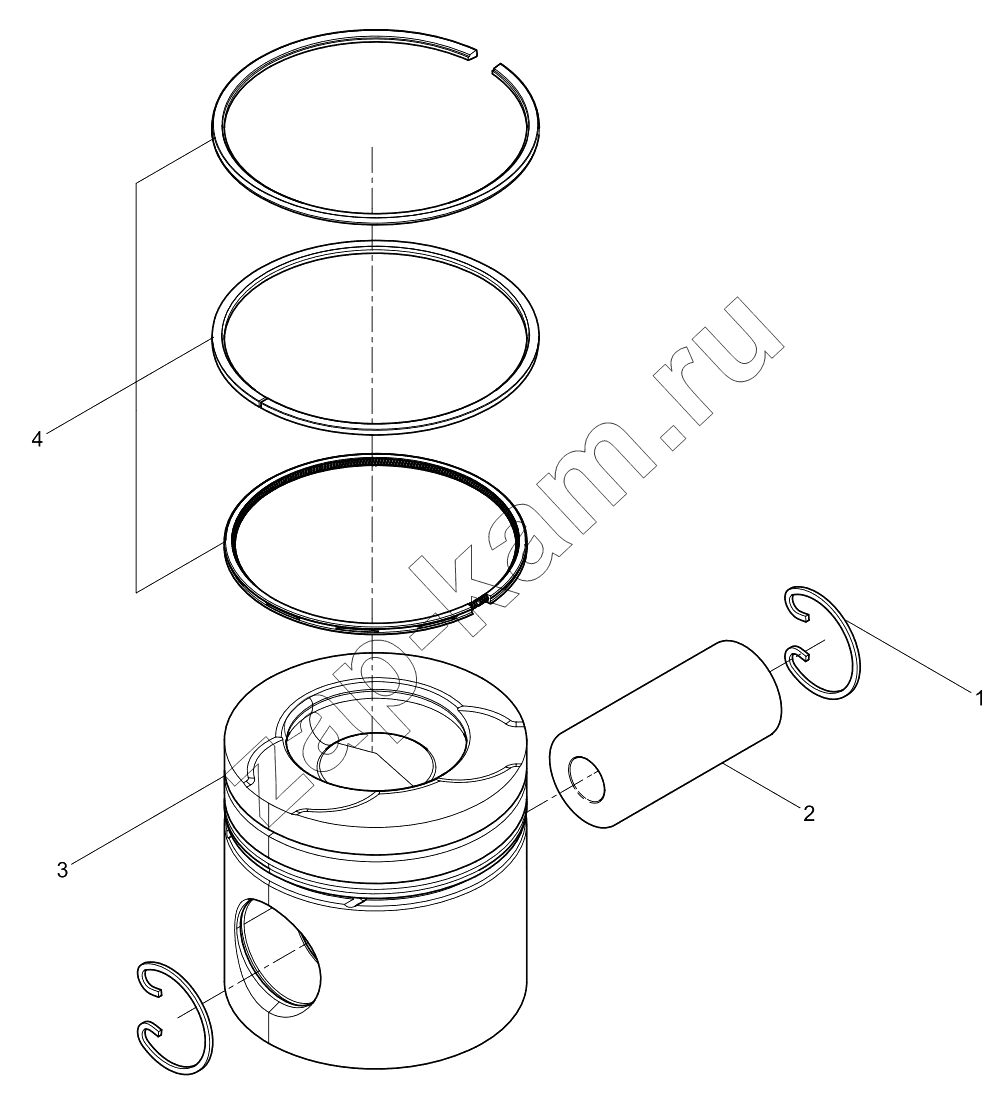

PISTON ASSEMBLY
/ Weichai WP10 DHL10Q0213

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано ENGINE BLOCK GROUP CYLINDER BLOCK PREASSEMBLY TIMING GEAR HOUSING GROUP CRANKSHAFT GROUP CRANKSHAFT ASSEMBLY CRANKSHAFT SUBASSEMBLY PISTON AND CONNECTING ROD GROUP PISTON ASSEMBLY PISTON RING SET CONNECTING ROD ASSEMBLY CYLINDER HEAD GROUP CYLINDER HEAD SUBASSEMBLY VALVE TRAIN GROUP CAMSHAFT ASSEMBLY IDLER GEAR ASSEMBLY ROCKER ARM SHAFT SET ROCKER ARM SET ROCKER ARM ASSEMBLY EVB BRACKET ASSEMBLY OIL PUMP GROUP OIL PUMP IDLE GEAR SET OIL COOLER GROUP COMMON RAIL SYSTEM ASSEMBLY HIGH PRESSURE PUMP GROUP HIGH-PRESSURE FUEL PIPE ASSEMBLY FRONT COVER GROUP OIL-GAS SEPARATOR GROUP OIL-GAS SEPARATOR ASSEMBLY DIPSTICK GROUP DIPSTICK ASSEMBLY OIL FILLING PIPE GROUP FLYWHEEL HOUSING GROUP OIL COOLER CAP GROUP FLYWHEEL GROUP CRANKSHAFT PULLEY GROUP CYLINDER HEAD COVER GROUP WATER OUTLET PIPE GROUP WATER-OUTLET PIPE ASSEMBLY WATER PUMP GROUP WATER PIPE CONNECTOR GROUP FAN AND HUB GROUP TENSIONER AND BELT GROUP OIL STRAINER GROUP OIL FILTER GROUP OIL FILTER FUEL FILTER GROUP PRIMARY FUEL FILTER SET FUEL COARSE FILTER FINE FUEL FILTER SET FINE FILTER LOW PRESSURE FUEL PIPE GROUP ELECTRONIC CONTROL SYSTEM HARNESS AND SENSOR GROUP SPEED SENSOR OIL PRESSURE SENSOR FUEL INJECTOR GROUP ADAPTER OF HIGH PRESSURE PIPE ALTERNATOR GROUP AIR CONDITIONING COMPRESSOR GROUP STARTER MOTOR GROUP INTAKE MANIFOLD GROUP INTAKE MANIFOLD ASSEMBLY EXHAUST MANIFOLD GROUP TURBOCHARGER GROUP TURBOCHARGER OIL PIPE GROUP COMPRESSOR PIPE GROUP INTERCOOLER GROUP AIR COMPRESSOR GROUP AIR COMPRESSOR ASSEMBLY HYDRAULIC PUMP GROUP OIL PAN SET OIL PAN SET ENGINE BRACKET GROUP PARTS BOX GROUP FUEL SYSTEM PROTECTOR PACKING BOX CHASSIS PARTS GROUP

1

2

3

4

Поз.	Артикул		Название детали	Кол-во	Цена
1	81560030012		Стопорное кольцо	2;	-
2	61560030013		Палец поршневой	1;	-
3	612650020002		Piston	1;	-
4	612600030053		Piston ring assembly	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
