5. Turbocharger Oil pipe Group

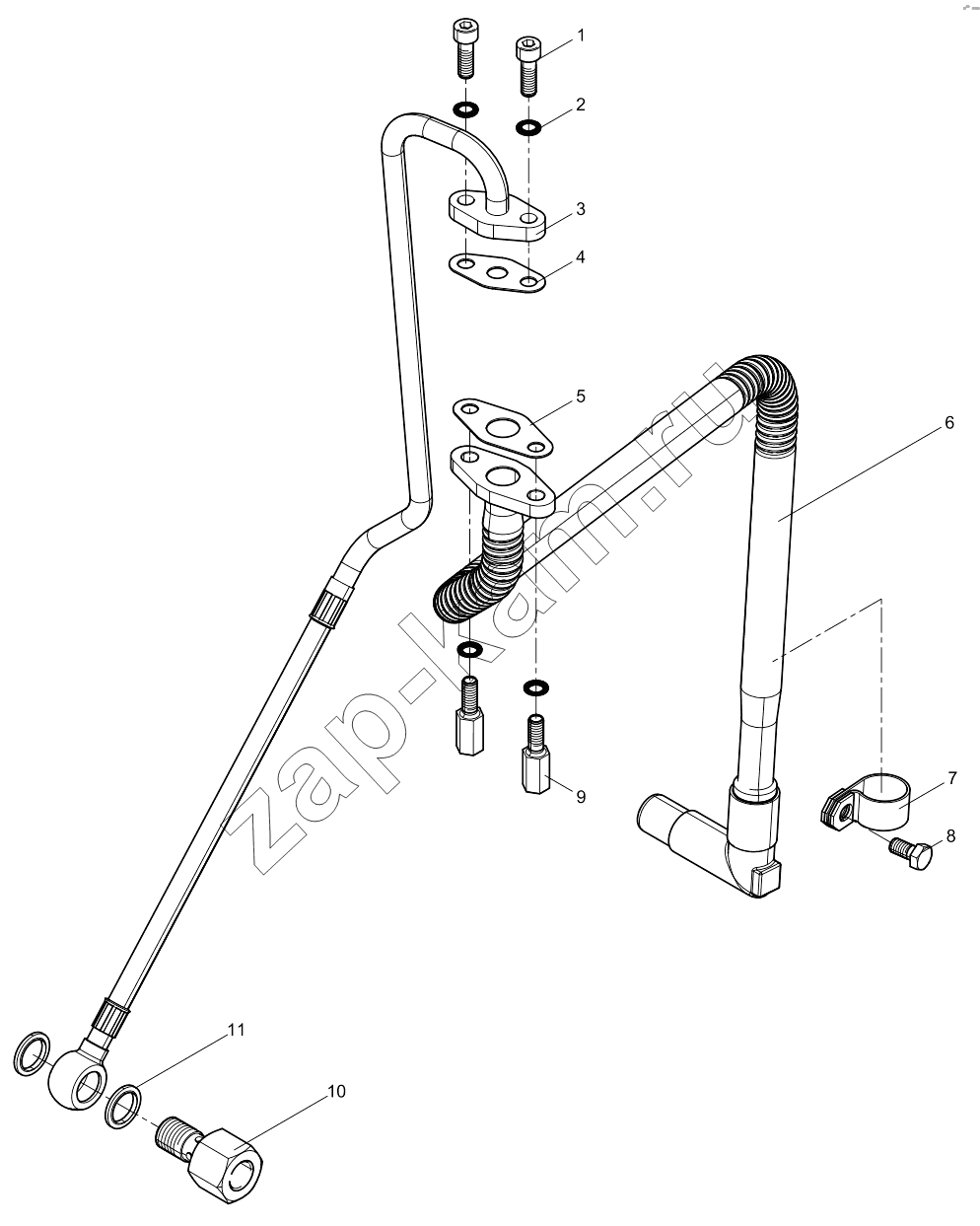

Turbocharger Oil pipe Group
/ Weichai WP10 DHP10Q1242

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Timing gear housing assembly Crankshaft Group Crankshaft assembly Piston and Connecting Rod Group Connecting rod assembly Piston ring assembly Cylinder head assembly Cylinder head subassembly Valve Train Group Camshaft assembly EVB Exhaust Rocker Arm Set Intake valve rocker arm Intermediate gear assembly Oil pump assembly Oil Pump Idle Gear Assembly Oil cooler assembly Common rail system combination group High pressure pump assembly High pressure pipe assembly End cap combination group Oil-gas Separator Group Oil-gas separator assembly Dipstick Group Oil dipstick assembly Oil Tilling Tube Group Flywheel Housing Group Oil cooler cover assembly Flywheel Group Crankshaft Pulley Group Cylinder head cover assembly Water Outlet Pipe Group Thermostat Group Water pump assembly Water Pipe Connector Group Fan and Hub Group Tensioner and belt combination group Oil Suction Strainer Group Oil filter assembly Oil filter assembly Fuel Filter Group Primary fuel filter assembly Primary fuel filter Fuel fine filter assembly Fine filter Electronic Control System Harness and Sensor Group Speed sensor assembly Oil Pressure Sensor Set Injector assembly Generator Group Generator Bracket Group Starter Motor Group Intake Manifold Group Air inlet pipe assembly Exhaust Manifold Group Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Air compressor Air compressor assembly Oil Pan Group Oil pan assembly Engine Bracket Group Parts Box Group Urea level sensor 4-hole connector assembly Urea pump 12-hole connector assembly Vehicle 94-hole connector assembly Exhaust temperature sensor connector Double-ended 2-hole connector assembly Urea nozzle 2-hole connector assembly Nitrogen oxygen sensor female connector assembly Fuel System Protector Single Transport Parts Attached to Engine Group SCR box assembly Integrated urea tank assembly Packing Box Chassis Parts Group Electronic control silicone oil clutch fan assembly

1

2

3

4

5

6

7

8

9

10

11

Поз.	Артикул		Название детали	Кол-во	Цена
1	90003862428		Винт	2;	-
2	188250083		Шайба	4;	-
3	612600112506		Oil inlet pipe for turbocharger	1;	-
4	612600114275		Fuel inlet pipe gasket	1;	-
5	61260110048		Шайба фланца возвратной трубы	1;	-
6	612600113671		Oil return pipe assembly of turbocharger	1;	-
7	612600111639		Зажим	1;	-
8	90011270073		Hexagon bolt, full thread	1;	-
9	61460070014		Болт	2;	-
10	612600090391		Oil pressure sensor joint	1;	-
11	612600080275		Шайба прокладочная	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
