Phase Sensor Set
/ Weichai WP10NG DHP10Q1667

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Cylinder Block Preassembly Timing gear housing group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Connecting rod and Piston Connecting Rod Assembly Piston Ring Set Cylinder Head Group Cylinder Head Subassembly Valve Mechanism assembly Camshaft Assembly Intake Rocker Arm Assembly Exhaust Rocker Arm Set Idler Gear Assembly Oil Pump Group Oil Pump Idle Gear Set Oil Cooler Group High Pressure Pump Group Cap Group Oil-gas Separator Group Oil-gas Separator Assembly Dipstick Group Dipstick Assembly Oil Filling Tube Group Flywheel Housing Group Oil cooler cap Group Flywheel Group Crankshaft Pulley Group Cylinder Head Cover Group Water Outlet Pipe Group Thermostat Group Water Pump Group Water Pipe Connector Group Fan and Hub Group Fan Clutch Assembly Tensioner And Belt Group Oil Strainer Group Oil Filter Group Oil Filter Electronic Control System Harness and Sensor Group Alternator Group Alternator Bracket Group Starter Motor Group Intake Manifold Group Intake Manifold Assembly Exhaust Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Rear Exhaust Manifold Group Intercooler Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Oil Pan Group Oil Pan Assembly Mixer Intake System Group Mixer Assembly Fuel Supply System Set FMV Set Turbo Set System Group Exhaust Control Set Signal Generator and Indictor Group Phase Sensor Set Ignition System Group Pass in and out Water pipe annex set Engine Harness Group Accessory Box Set Electronical Foot Pedal High Pressure Fillter Set Pressure Reducer set ECU and Program Set Engine Bracket Group Parts Box Group

1

2

3

4

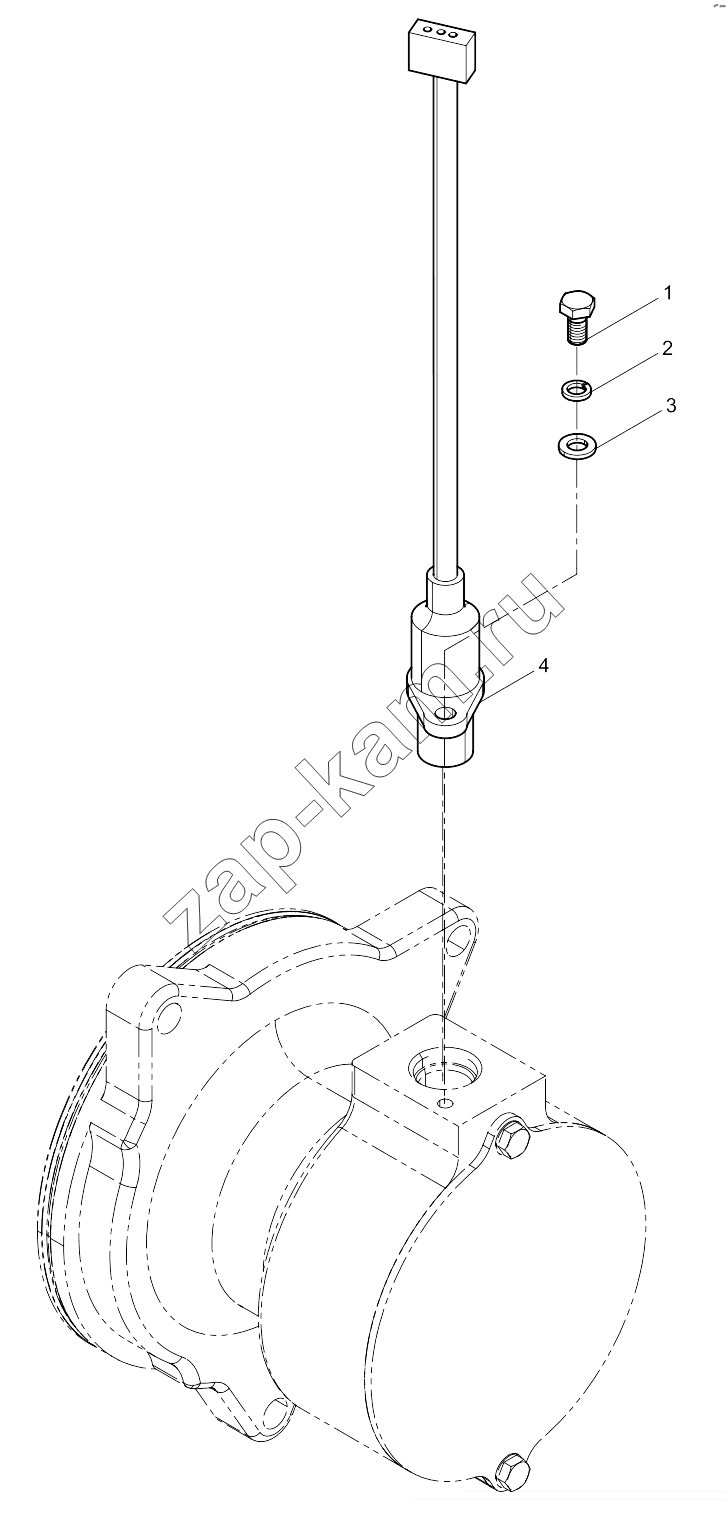

Поз.	Артикул		Название детали	Кол-во	Цена
1	90003802312		Болт	1;	-
2	90014350003		Шайба пружинная	1;	-
3	90014040006		Plain Washer	1;	-
4	13034188		Phase Sensor	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
