1. Каталоги запчастей к технике
2. Двигатели
3. Weichai
4. WP12 375E40 (Евро 4)
5. Oil Cooler Cap Bonding Set

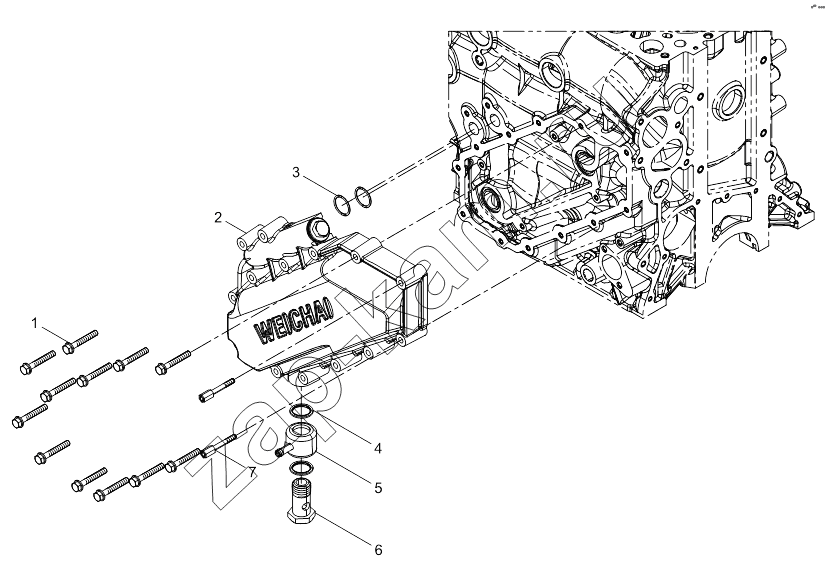

Oil Cooler Cap Bonding Set
/ Weichai WP12 375E40 (Евро 4)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Oil cooler assembly Front cover assembly Oil pump assembly Crankshaft Group Crankshaft assembly Linkage and piston combination group Connecting rod assembly Connecting rod Piston assembly Piston ring assembly Gear Transmission Components Intermediate gear subassembly Middle Gear Set High pressure pump assembly Injection pump assembly Cylinder head assembly Cylinder head subassembly Valve Train Group Rocker combination subgroup Rocker arm assembly Rocker shaft combination subgroup Camshaft assembly Common Rail System Combined Group High pressure pipe assembly Oil-gas Separator Group Dips tick Group Oil dipstick assembly Oil Tilling Tube Group Flywheel Housing Group Oil Cooler Cap Bonding Set Oil cooler cover assembly Body peripheral attachment combination group Flywheel Group Flywheel assembly Crankshaft Pulley Group Cylinder head cover assembly Air Discharging Pipe Group Thermostat Group Water pump assembly Water Pipe Connector Group Fan Bracket Group Fan and Hub Group Tensioner and Belt Assembly Oil Suction Strainer Group Oil filter assembly Fuel Filter Group Primary fuel filter Fine filter Low Pressure Oil pipe Group Electronic Control System Harness and Sensor Group Injector assembly Generator Group Generator Bracket Group Air Conditionning Compressor Group Starter Motor Group Intake System Combined Group Air inlet pipe assembly Exhaiist Manifold Group Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Rear Exhaust Manifold Group Intercooler assembly Air Compressor Group Oil Pan Group Oil pan assembly Engine Bracket Group Parts Kit Assembly Fiiel System Protector Packing Box Chassis Parts Group Single Transport Parts Attached to Engine Group (01) Single Transport Parts Attached to Engine Group (02)

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во
1	612639000073		Болт с шестигранной головкой	12;
2	612630010072		Крышка в сборе для масляного охладителя	1;
3	612639000072		О-образное уплотнительное кольцо	2;
4	612630010382		Unit washer	2;
5	612640010004		Outlet connector	1;
6	612600130053		Hollow bolt	1;
7	612600013554		Supporting plate	2;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
