Piston and Connecting Rod Group
/ Weichai WP12.375E50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Cylinder Block Preassembly Oil Cooler Group Front cover group Oil Pump Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Piston and Connecting Rod Group Connecting Rod Assembly Piston Ring Set Gear Drive Set Idler Gear Assembly High Pressure Pump Group Fuel Injection Pump Set Fuel Injection Pump Assembly Cylinder Head Group Cylinder Head Subassembly Valve Train Group Rocker Arm Set Rocker Arm Shaft Set Camshaft Assembly EVB Bracket Assembly Common Rail System Assembly High Pressure Pipe Set High-pressure Fuel Pipe Assembly Oil-gas Separator Group Oil Dipstick Group Dipstick Assembly Oil Filling Tube Group Flywheel Housing Group Oil cooler cap Group Oil Cooler Cap Assembly Engine Block Peripheral Group Flywheel Group Flywheel Assembly Crankshaft Pulley Group Belt pulley assembly Cylinder head cover set Cylinder Head Cover Assembly Oil filling port cover assembly Venting Pipe Group Thermostat Group Water Pump Group Water Pipe Connector Group Fan Bracket Group Fan and Hub Group Tensioner And Belt Group Oil Strainer Group Oil Filter Group Oil Filter Fuel Filter Group Fuel Coarse Filter Fuel Fine Filter Low Pressure Fuel Pipe Group Electronic Control System Harness and Sensor Group Fuel Injector Group Fuel Injector Adapter of High Pressure Pipe Alternator Group Alternator Bracket Group Air Conditioning Compressor Group Starter Motor Group Intake manifold group Intake Manifold Assembly Exhaust Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Rear Exhaust Manifold Group Intercooler Group Air Compressor Group Hydraulic Pump Group Oil Pan Group Oil Pan Assembly Engine Bracket Group Parts Box Group Fuel System Protector Separate Delivery Parts Group Attached to Engine 1 SCR Box Assembly Separate Delivery Parts Group Attached to Engine 2 SCR Box Assembly Packing Box Chassis Parts Group

1

2

3

4

5

6

7

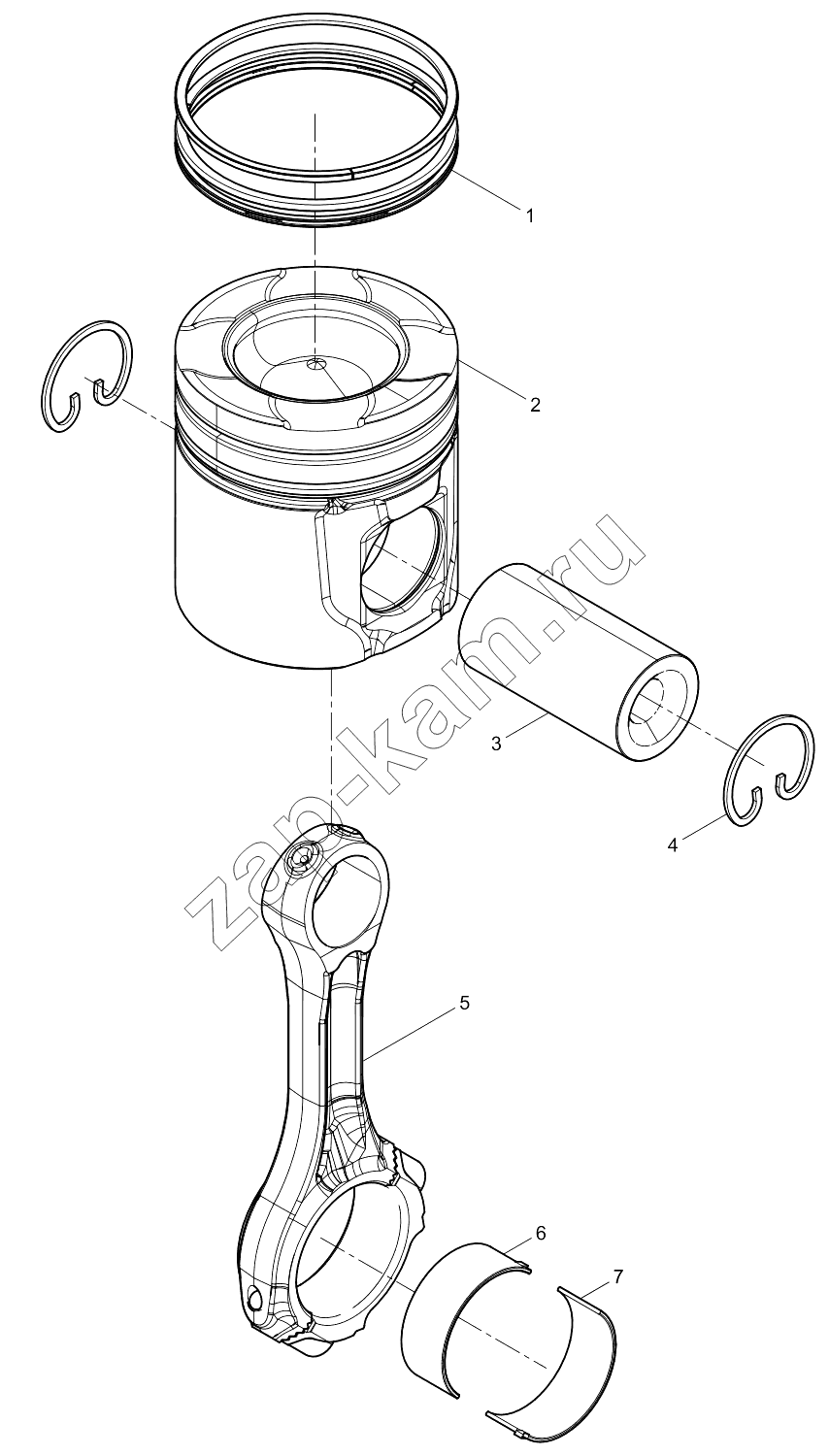

Поз.	Артикул		Название детали	Кол-во
1	612600030054		Piston ring assembly	1;
2	612630020152		Piston	1;
3	612630020025		Палец поршня	1;
4	612630020029		Упорная шайба пальца поршня	2;
5	612630020017		Шатун	1;
6	1000769225		Connecting Rod Upper Shell	1;
7	1000769282		Connecting Rod Lower Shell	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
