Alternator Bracket Group
/ Weichai WP12.400E50

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Cylinder Block Preassembly Nozzle Set Flywheel Housing Group Front cover group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Group Thrust Plate Set Flywheel Group Piston and Connecting Rod Group Connecting Rod Assembly Piston Assembly Piston Ring Set Cylinder Head Group Cylinder Head Subassembly Cylinder head cover set Cylinder Head Cover Assembly Oil filling port cover assembly Oil-gas Separator Group Valve Train Group Rocker arm combination subgroup Rocker Arm Shaft Set Camshaft Assembly EVB Bracket Assembly Gear Drive Set Idler Gear Set Idler Gear Set Crankshaft Pulley Group Belt pulley assembly Oil Pan Group Oil Pan Assembly Dipstick Group Dipstick Assembly Oil Pump Group Oil Strainer Group Oil Cooler Group Oil cooler cap Group Oil Cooler Cap Assembly Oil Filter Group Oil Filter Oil Filling Tube Group Water Pump Group Venting Pipe Group Thermostat Group Intercooler Group Fan Bracket Group Fan and Hub Group Fan Clutch Assembly High Pressure Pump Group Fuel Injection Pump Set Fuel Injection Pump Assembly Fuel Injector Group Adapter of High Pressure Pipe Low Pressure Fuel Pipe Group Injector Return Pipe Group Fuel Filter Group Fuel Coarse Filter Fuel Fine Filter High Pressure Pipe Set High-pressure Fuel Pipe Assembly Common Rail System Assembly Intake manifold group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Exhaust Manifold Group Rear Exhaust Manifold Group Clutch Group Air Conditioning Compressor Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Engine Block Peripheral Group Packing Box Chassis Parts Group Fuel System Protector Separate Delivery Parts Group Attached to Engine SCR Box Assembly Integrated Urea Tank Assembly Urea Tank Assembly Parts Box Group Starting relay Conneting parts Connector Assembly Connector Assembly Connector Connector Assembly Connector Connector Assembly Connector Matching Connector Fuel heating Conneting parts Vehicle Connector Diagnosis Plug Matching Connector Electronic Control System Harness and Sensor Group Alternator Group Alternator Bracket Group

1

2

3

4

5

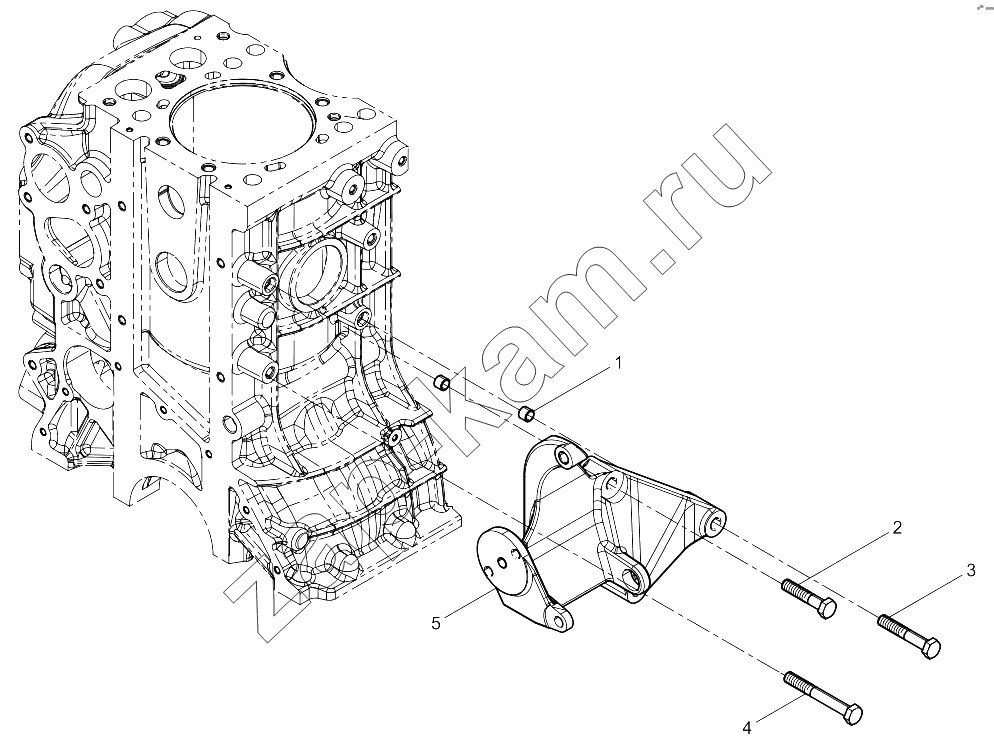

Поз.	Артикул		Название детали	Кол-во
1	612630060041		Втулка	2;
2	90003800543		Шестиугольный головочный болт	1;
3	90011350033		Болт с шестигранной головкой	1;
4	90003800571		Болт	1;
5	1000668915		Alternator Bracket	1;
