Oil Cooler Cap Assembly
/ Weichai WP12 DHP12N0219

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase pre-assembly Oil Cooler Group Cylinder block front cover Set Oil Pump Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Connecting rod and piston group Connecting Rod Assembly Connecting Rod Assembly Piston Assembly Piston Ring Set Gear Drive Set Idler Gear Assembly Idler Gear Set High Pressure Pump Group Fuel Injection Pump Set Cylinder Head Group Cylinder Head Subassembly Eye Ring Group Valve Train Group EVB Bracket Assembly Rocker Arm Shaft Set Camshaft Assembly Rocker binding subgroup Common Rail Group Electronic Control Unit Group High Pressure Pipe Set Oil-gas Separator Group Dipstick Group Dipstick Assembly Oil Filling Pipe Group Flywheel Housing Group Oil cooler cap Group Oil Cooler Cap Assembly Flywheel Group Flywheel Assembly Crankshaft Pulley Group Belt pulley assembly Cylinder head cover set Cylinder Head Cover Assembly Venting Pipe Group Thermostat Group Water Pump Group Water Pipe Connector Group Fan Bracket Group Fan and Hub Group Fan Clutch Assembly Tensioner And Belt Group Oil Strainer Group Oil Filter Group Oil Filter Fuel Filter Group Fuel Coarse Filter Fine filter Low Pressure Fuel Pipe Group Fuel Injector Group Adapter of High Pressure Pipe Injector Return Pipe Group Electronic Control System Harness Group Alternator Bracket Group Alternator Group Starter Motor Group Intake Manifold Group Intake Manifold Assembly Exhaust Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Oil Pan Group Oil Pan Assembly Power Take-off Group Engine Bracket Group Parts Box Group Fuel System Protector

1

2

3

4

5

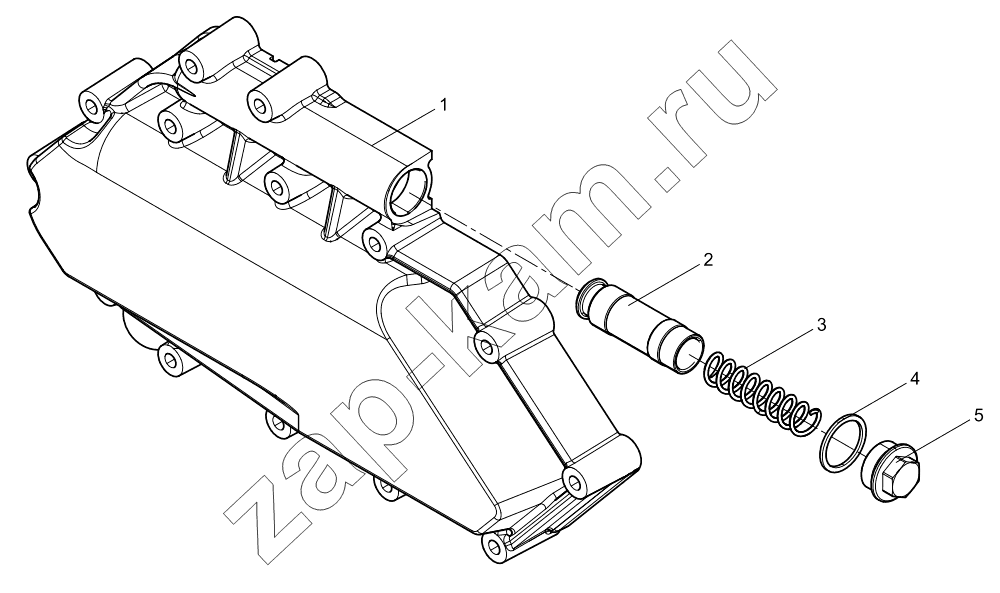

Поз.	Артикул		Название детали	Кол-во
1	612630010051		Oil cooler cover	1;
2	612630010052		Pressure limiting valve body	1;
3	612630010081		Pressure limiting valve spring	1;
4	612639000069		Washer	1;
5	612639000044		Screw plug	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
