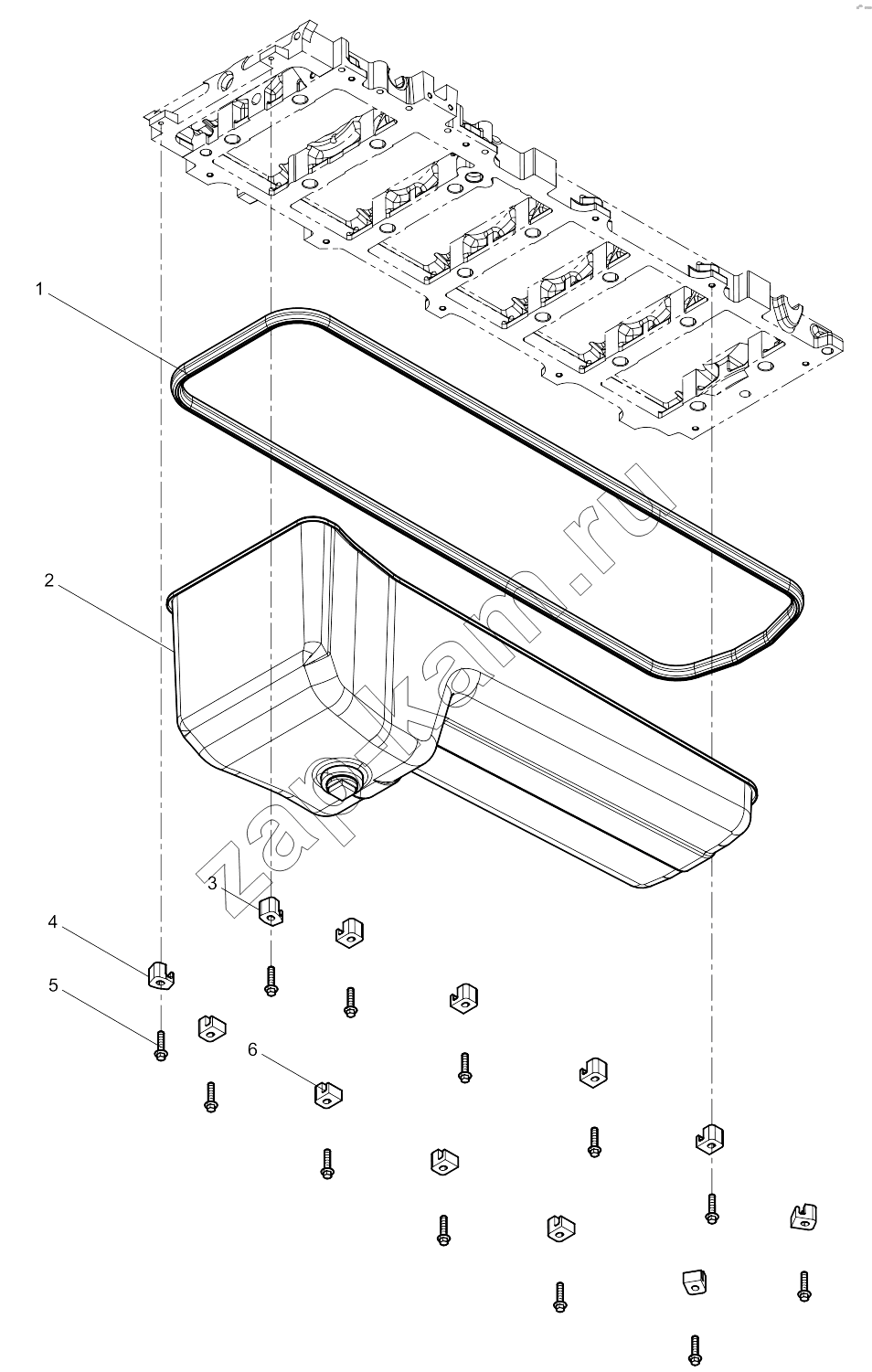

Oil Pan Group
/ Weichai WP12 DHP12Q0501

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Pre-assembled cylinder block Oil cooler assembly Front end cover assembly Oil pump assembly Crankshaft Group Crankshaft assembly Connecting rod and piston combination group Connecting rod assembly Connecting rod Piston assembly Piston ring assembly Gear transmission components Intermediate gear subassembly Middle Gear Set High pressure pump assembly Injection pump assembly Cylinder head assembly Cylinder head subassembly Valve Train Group Rocker combined subgroup Rocker arm assembly Rocker shaft combined subgroup Camshaft assembly Common rail system combination group High pressure pipe assembly High pressure pipe assembly Oil-gas Separator Group Dipstick Group Oil dipstick assembly Oil Tilling Tube Group Flywheel Housing Group Oil cooler cover assembly Oil cooler cover assembly Flywheel Group Flywheel assembly Crankshaft Pulley Group Belt pulley assembly Cylinder head cover assembly Air Discharging Pipe Group Thermostat Group Water Pipe Group Water Outlet Pipe Assembly Return pipe assembly Water pump assembly Fan Bracket Group Fan and Hub Group Electronically controlled silicon oil clutch fan assembly Tensioner and Belt Assembly Oil Suction Strainer Group Oil filter assembly Oil filter Fuel Filter Group Primary fuel filter Fine filter Low Pressure Oil pipe Group Electronic Control System Harness and Sensor Group Injector assembly Adapter of high pressure pipe Generator Group Generator Bracket Group Starter Motor Group Intake system combination group Air inlet pipe assembly Exhaust Manifold Group Turbocharger assembly Turbocharger Oil pipe Group Compressor Pipeline Group Rear Exhaust Manifold Group Air Compressor Group Oil Pan Group Oil pan assembly Engine Bracket Group Parts Box Group Fuel filter-water separator Urea level sensor 4-hole connector assembly Urea pump 12-hole connector assembly Vehicle 94-hole connector assembly Exhaust temperature sensor connector Double end 2-hole connector assembly Urea nozzle 2-hole connector assembly Nitrogen oxygen sensor female connector assembly Starter connector assembly 16-hole diagnostic interface connector (for National IV) Connector Primary fuel filter water level sensor connector (main engine factory use) Single Transport Parts Attached to Engine Group SCR box assembly Integrated urea tank assembly

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
1	612630010065		Уплотнительная шайба	1;	-
2	612630010575		Oil pan assembly	1;	-
3	612630010419		Left oil pan	1;	-
4	612630010420		Right oil pan support block	1;	-
5	90011400039		Hexagon flange bolt Increase series	12;	-
6	614150046		Прижимной блок	10;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
