Crankcase pre-assembly
/ Weichai WP13 DHP13Q0801

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Spray Nozzle Group Flywheel Housing Group Front End Cover Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Group Thrust Plate Group Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Lift Lug Group Cylinder Head Cover Group Cylinder Head Cover Assembly Oil Filler Cover Assembly Oil-gas Separator Group Valve Train Group Rocker Arm Shaft Set EVB Bracket Assembly Rocker Arm Set Camshaft Assembly Gear Drive Group Idler Gear Assembly Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Dipstick Group Dipstick Assembly Oil Pump Group Oil Strainer Group Oil Cooler Group Oil cooler cap Group Oil Cooler Cap Assembly Oil Filter Group Oil Filter Oil Filling Tube Group Water Pump Group Water Pump Inlet Pipe Joint Group Water Pipe Group Venting Pipe Group Thermostat Group Fan Bracket Group Fan and Hub Group High Pressure Pump Group Fuel Injection Pump Set Fuel Injection Pump Assembly Fuel Injector Group Fuel Injector High-pressure Connector Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Fine Filter Fuel Coarse Filter High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly High-pressure Fuel Pipe Assembly Common Rail Group Intake Manifold Group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Exhaust Manifold Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Motor Group Parts Kit Group Matching Connector Connector Matching Connector Connector Assembly Connector Assembly Electronic Control Unit Group Electronic Control System Harness Group Alternator Group Alternator Bracket Group Packing Box Chassis Parts Group Fuel System Protector Oil Seal Group Power Take-off Group Rear Exhaust Manifold Group Turbocharger Compressor Air-Outlet Pipe Group

1

2

3

4

5

6

7

8

9

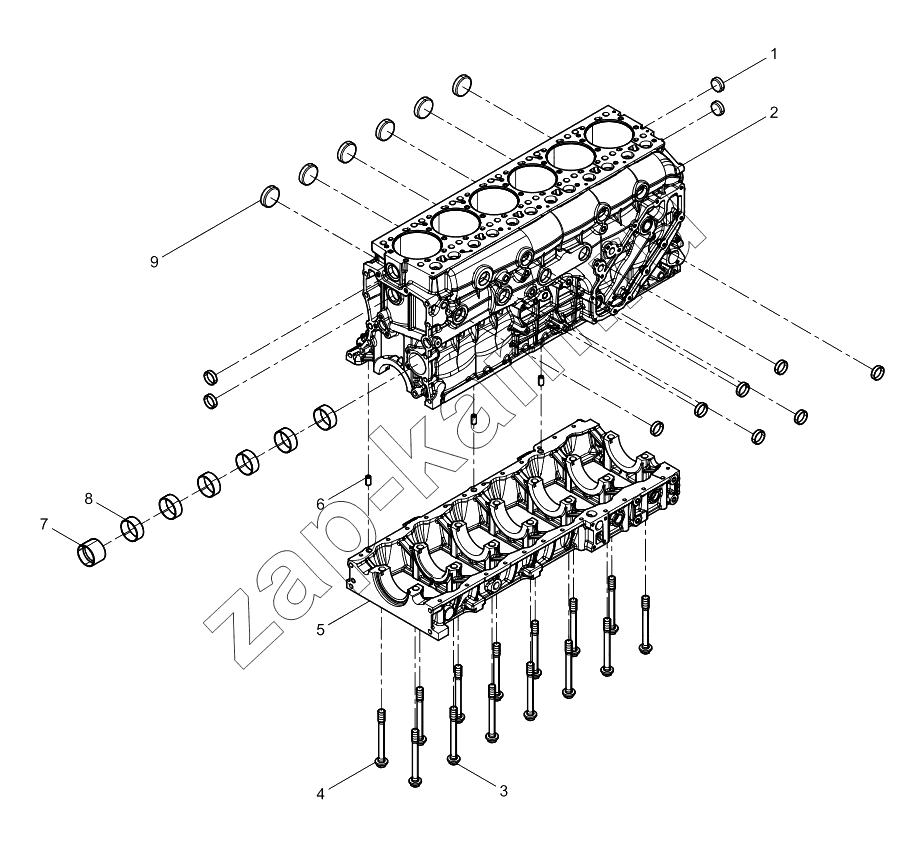

Поз.	Артикул		Название детали	Кол-во	Цена
1	612600013581		Bowl Plug	11;	-
2	1003794083		Cylinder Block	1;	-
3	612630010169		Main bearing bolt	3;	-
4	612630010057		Болт главного подшипника	11;	-
5	1004102981		Crankcase	1;	-
6	612639000093		Фиксирующий штифт	3;	-
7	612630010075		Втулка кулачкового вала на заднем конце	1;	-
8	61560010029		Втулка распредвала	6;	-
9	612600013583		Bowl Plug	6;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
