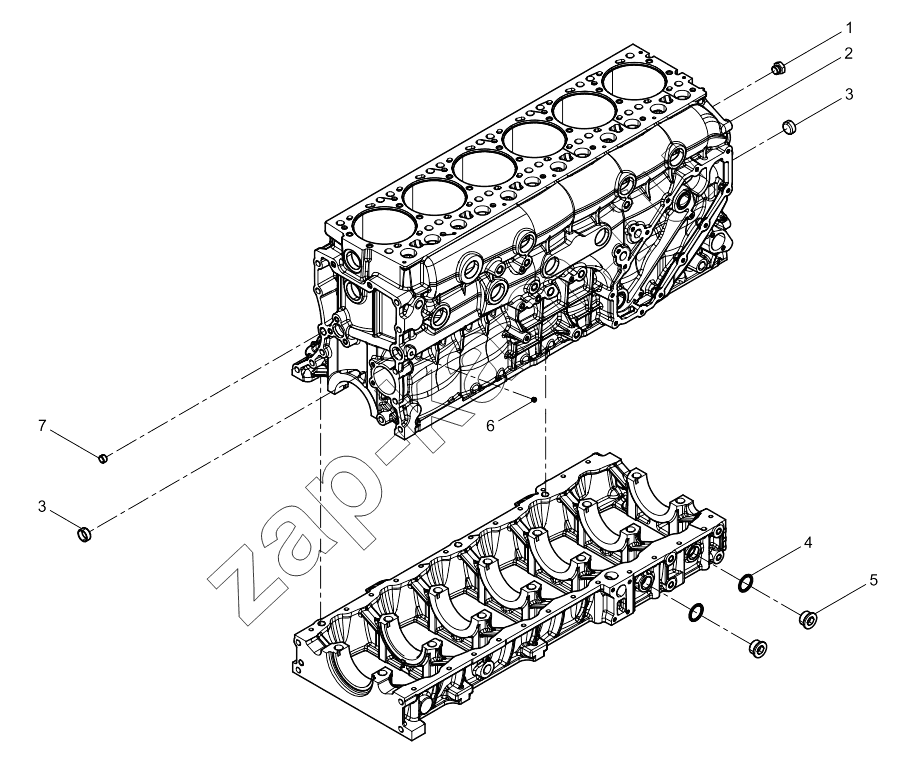

Crankcase assembly
/ Weichai WP13 DHP13Q3390

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Flywheel Housing Group Front End Cover Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Group Thrust Plate Group Flywheel Group Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Lift Lug Group Cylinder Head Cover Group Oil-gas Separator Group Valve Train Group Rocker Arm Set EVB Bracket Assembly Camshaft Assembly Gear Drive Group Idler Gear Assembly Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Pan Assembly Oil Dipstick Group Dipstick Assembly Oil Pump Group Oil Strainer Group Oil Cooler Group Oil cooler cap Group Oil Filter Group Oil Filter Oil Filling Tube Group Water Pump Group Water Pump Inlet Pipe Group Water Pipe Assembly Water Pipe Connector Group Venting Pipe Group Thermostat Group Fan Bracket Group Fan and Hub Group Fuel Injection Pump Group Fuel Injection Pump Assembly Fuel Injection Pump Oil Pipe Group Fuel Injector Group High-pressure Connector Fuel Injector Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Filter Assembly High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly High-pressure Fuel Pipe Assembly Common Rail Group Intake Manifold Group Intake Manifold Assembly Turbocharger Group Heat Shield Group Turbocharger Oil Pipe Group Compressor Pipe Group Exhaust Manifold Group Rear Exhaust Manifold Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Motor Group Engine Peripheral Device Support Group Packing Box Chassis Parts Group Urea Pump Separate Delivery Parts Group Attached to Engine SCR Box Assembly Urea Nozzle Parts Kit Group Fuel System Protector Electronic Control Unit Group Electronic Control System Harness Group Alternator Group Alternator Bracket Group

1

2

3

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во
1	90003962030		Шестиугольный головочный болт	1;
2	1006275585		Crankcase pre-assembly	1;
3	612639000033		Чашеобразная пробка	1;
4	612600010735		Кольцо упорное	2;
5	90003962050		Пробка	2;
6	612639000020		Tensioned rivet	1;
7	90003989204		Пробка чашеобразная	2;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
