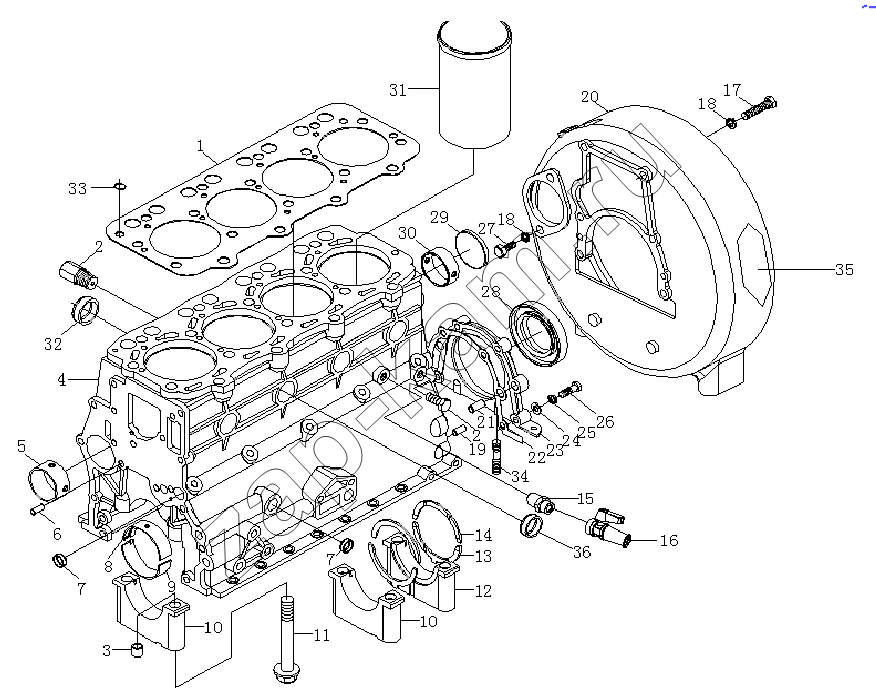

Cylinder Block Assembly (1)
/ Weichai WP2.1D18E2
1
2
2
3
4
5
6
7
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | YZ485QB-1A | Cylinder head gasket | 1; | |
| 2 | Q61902 | Screw plug | 2; | |
| 3 | T/Y80.03.1.1-2 | Locating sleeve | 2; | |
| 4 | YZ485ZD-02101 | Cylinder block | 1; | |
| 5 | YZ485.03.1-1 | Camshaft front bearing | 1; | |
| 6 | 2BYZX-D8X18 | Pin | 1; | |
| 7 | T/Y102-01115 | Plug | 4; | |
| 8 | 2085010103 | Main bearing | 5; | |
| 9 | 2085010104 | Main bearing | 5; | |
| 10 | YZ485.03.1.1-4 | Main bearing cap | 4; | |
| 11 | YZ485QB-02110 | Main bearing cap bolt | 10; | |
| 12 | YZ485.03.1.1-3 | Rear main bearing cap | 1; | |
| 13 | T/Y80.03-9 | Thrust washer | 2; | |
| 14 | T/Y80.03-8 | Thrust washer | 2; | |
| 15 | YZ4102QFK-02164 | Drain switch connector | 1; | |
| 16 | 2085010102 | Drain cock | 1; | |
| 17 | 2BLS-M12X35/8.8 | Bolt | 6; | |
| 18 | 2BTDQ-D12 | Washer | 8; | |
| 19 | 2BYZX-D10X22 | Pin | 2; | |
| 20 | YZ485D-02020J | Flywheel housing | 1; | |
| 21 | 495-02161 | Guide sleeve | 2; | |
| 22 | T/Y80.03-12 | Rear oil seal cover gasket | 1; | |
| 23 | T/Y80.03.4-1B | Rear oil seal cover | 1; | |
| 24 | 2BPDQ-D8 | Washer | 6; | |
| 25 | 2BTDQ-D8 | Washer | 6; | |
| 26 | 2BLS-M8X35/8.8 | Bolt | 6; | |
| 27 | 2BLS-M12X30/8.8 | Bolt | 2; | |
| 28 | 2GJYF-80X100X12 | Rear oil seal | 1; | |
| 29 | T/Y80.03-10 | Plug | 1; | |
| 30 | YZ485.03.1-2 | Camshaft bushing | 4; | |
| 31 | WP2.1D | Cylinder liner | 4; | |
| 32 | T/Y102-01108 | Plug | 5; | |
| 33 | 2MFQ-10X1.9 | Seal ring | 1; | |
| 34 | T/Y80.03.4-2 | Stud | 4; | |
| 35 | 495T2-02169 | Inspection window cover | 1; | |
| 36 | T/Y102-02114 | Plug | 4; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
