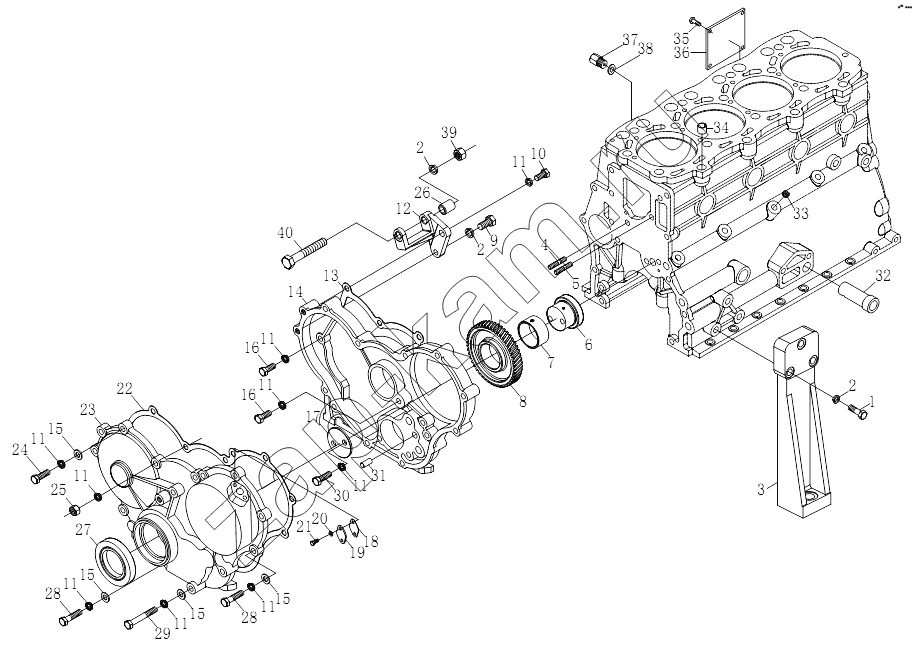

Cylinder Block Assembly (2)
/ Weichai WP2.1D18E2
1
2
2
2
3
4
5
6
7
8
9
10
11
11
11
11
11
11
11
11
11
12
13
14
15
15
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 2BLS-M10X40/8.8 | Bolt | 6; | - | |
| 2 | 2BTDQ-D10 | Washer | 8; | - | |
| 3 | 2085540103 | Engine mounting bracket | 2; | - | |
| 4 | 2BLZ-AM8X55 | Stud | 1; | - | |
| 5 | 2BLZ-AM8X70 | Stud | 1; | - | |
| 6 | T/Y80.03-1B | Idle gear shaft | 1; | - | |
| 7 | T/Y80.03.2-2A | Idle gear bushing | 1; | - | |
| 8 | YZ485QB-02114 | Idle gear | 1; | - | |
| 9 | 2BLS-M10X25/8.8 | Bolt | 1; | - | |
| 10 | 2BLS-M8X25/8.8 | Bolt | 1; | - | |
| 11 | 2BTDQ-D8 | Washer | 16; | - | |
| 12 | YZ485D-02129A | Generator bracket | 1; | - | |
| 13 | T/Y80.03-4 | Gear case gasket | 1; | - | |
| 14 | T/Y80.03-2 | Gear case | 1; | - | |
| 15 | 2BPDQ-D8 | Washer | 12; | - | |
| 16 | 2BLS-M8X20/8.8 | Bolt | 2; | - | |
| 17 | T/Y80.03-3 | Clamping plate | 1; | - | |
| 18 | T/Y80.03.3-2 | Gasket | 1; | - | |
| 19 | T/Y102-02124 | Inspection window cover | 1; | - | |
| 20 | 2BTDQ-D6 | Washer | 2; | - | |
| 21 | 2BLS-M6X10 | Bolt | 2; | - | |
| 22 | T/Y80.03-5 | Gear case cover gasket | 1; | - | |
| 23 | YZ485QB.03.3-1 | Gear case cover | 1; | - | |
| 24 | 2BLS-M8X30/8.8 | Bolt | 2; | - | |
| 25 | 2BLM-M8 | Nut | 1; | - | |
| 26 | YZ485D-02130 | Sleeve | 1; | - | |
| 27 | 2GJYF-50X70X12 | Front oil seal | 1; | - | |
| 28 | 2BLS-M8X55/8.8 | Bolt | 6; | - | |
| 29 | 2BLS-M8X85/8.8 | Bolt | 1; | - | |
| 30 | 2BLS-M8X50/8.8 | Bolt | 2; | - | |
| 31 | 2BYZX-D8X18 | Pin | 2; | - | |
| 32 | T/Y80.03-13 | Oil filter overflow pipe | 1; | - | |
| 33 | T/Y80.03.1-3 | Plug | 10; | - | |
| 34 | T/Y80.03.1.1-2 | Locating sleeve | 2; | - | |
| 35 | 2BMD-3X8/AL | Rivet | 4; | - | |
| 36 | YZ485-37A5 | Name plate | 1; | - | |
| 37 | 495Q-02177 | Plug | 1; | - | |
| 38 | 2ZHDQ-16 | Sealing washer | 1; | - | |
| 39 | 2BLM-M10 | Nut | 1; | - | |
| 40 | 2BLS-M10X90/8.8 | Bolt | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
