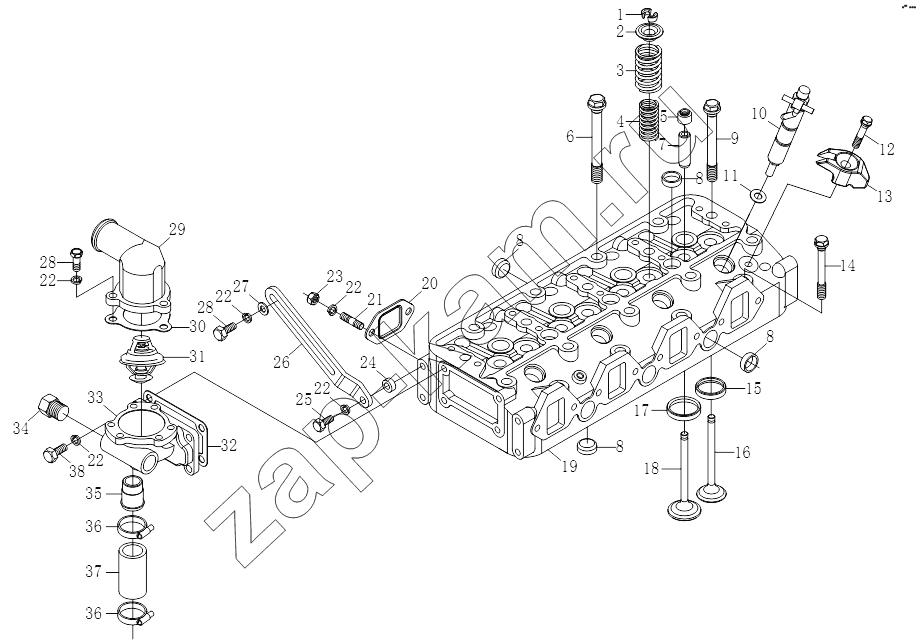

Cylinder Head Assembly (2)
/ Weichai WP2.1D18E2
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
36
37
38
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | YZ485.01-6 | Valve Keys | 16; | - | |
| 2 | YZ485.01-5 | Spring seat | 8; | - | |
| 3 | YZ485.01-3 | Outer valve spring | 8; | - | |
| 4 | YZ485.01-4 | Inner valve spring | 8; | - | |
| 5 | YZ485.01.5A | Valve seal | 8; | - | |
| 6 | T/Y80.01-14 | Cylinder head bolt | 4; | - | |
| 7 | YZ485QB-01105 | Valve guide | 8; | - | |
| 8 | T/Y102-02114 | Plug | 13; | - | |
| 9 | YZ485.01-13 | Cylinder head bolt | 10; | - | |
| 10 | KBAL-P028 | Injector | 4; | - | |
| 11 | YZ4105ZLQ-01139 | Shim | 4; | - | |
| 12 | YZ485ZLQ-01153 | Bolt | 4; | - | |
| 13 | YZ485ZLQ-01152A | Clamping plate | 4; | - | |
| 14 | T/Y80.01-15 | Cylinder head bolt | 4; | - | |
| 15 | YZ485QB-01104 | Exhaust valve seat | 4; | - | |
| 16 | YZ485QB-01122J | Exhaust valve | 4; | - | |
| 17 | YZ485QB-01103 | Intake valve seat | 4; | - | |
| 18 | YZ485QB-01121J | Intake valve | 4; | - | |
| 19 | YZ485ZLQ-01101B | Cylinder head | 1; | - | |
| 20 | YZ485ZLQ-06110C | Manifold gasket | 4; | - | |
| 21 | 2BLZ-AM8X45 | Stud | 8; | - | |
| 22 | 2BTDQ-D8 | Washer | 17; | - | |
| 23 | YZ4102ZLQ-06127 | Nut | 8; | - | |
| 24 | T/Y80-34 | Washer | 1; | - | |
| 25 | GB/T5784-1986 | Bolt | 1; | - | |
| 26 | 495Q-02126A | Generator bracket | 1; | - | |
| 27 | T/Y80-35 | Washer | 1; | - | |
| 28 | 2BLS-M8X25/8.8 | Bolt | 4; | - | |
| 29 | YZ485ZD-01133A | Thermostat cover | 1; | - | |
| 30 | YZ480.01-8 | Thermostat cover gasket | 1; | - | |
| 31 | 1033-72-K(155B) | Thermostat | 1; | - | |
| 32 | T/Y80.01-8 | Front cover plate gasket | 1; | - | |
| 33 | YZ485QB-01131 | Front cover plate | 1; | - | |
| 34 | Q61903 | Screw plug | 2; | - | |
| 35 | YZ485Q.01.4-2 | Pipe adapter | 1; | - | |
| 36 | NO.0X19-29 | Clamp | 2; | - | |
| 37 | YZ485QB-01150 | Rubber hose | 1; | - | |
| 38 | 2BLS-M8X20/8.8 | Bolt | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
