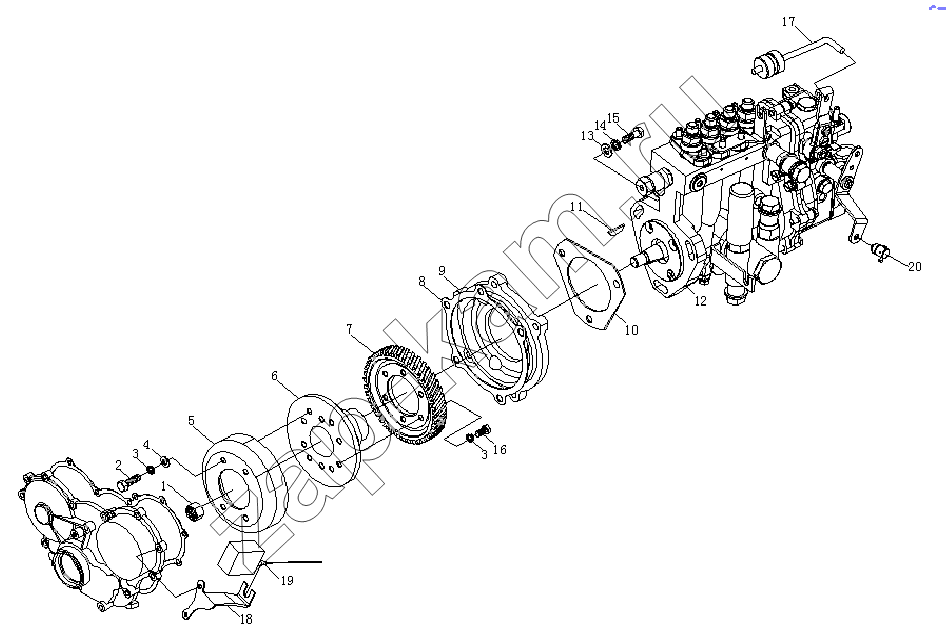

Injection Pump and Mounting Assembly
/ Weichai WP2.1D18E2
1
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 2BLM-M12 | Nut | 1; | - | |
| 2 | 2B010006 | Bolt | 4; | - | |
| 3 | 2BTDQ-D6 | Washer | 10; | - | |
| 4 | 2BPDQ-D6 | Washer | 4; | - | |
| 5 | YZ485D-10105 | Flange | 1; | - | |
| 6 | YZ485D-10104A | Coupling flange | 1; | - | |
| 7 | 2085080117 | Injection pump gear | 1; | - | |
| 8 | YZ485QA-17 | Gasket | 1; | - | |
| 9 | YZ485ZLQ-10103 | Injection pump mounting Flange | 1; | - | |
| 10 | YZ485QA.17-3 | Injection pump gasket | 1; | - | |
| 11 | 2BBYJ-3X16 | Woodruff key | 1; | - | |
| 12 | 4QT288 | Injection pump | 1; | - | |
| 12 | 4Q357 | Injection pump | 1; | - | |
| 13 | 2BPDQ-D8 | Washer | 3; | - | |
| 14 | 2BTDQ-D8 | Washer | 3; | - | |
| 15 | 2BLS-M8X30/8.8 | Bolt | 3; | - | |
| 16 | 2BLS-M6X16 | Bolt | 6; | - | |
| 17 | 2251032 | Throttle adjustment leverassembly | 1; | - | |
| 18 | 2251023 | Electric flame bracket | 1; | - | |
| 19 | 37AXB12-220 | Electric flame assembly | 1; | - | |
| 20 | 2250932/1 | Flameout joint assembly drawing | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
