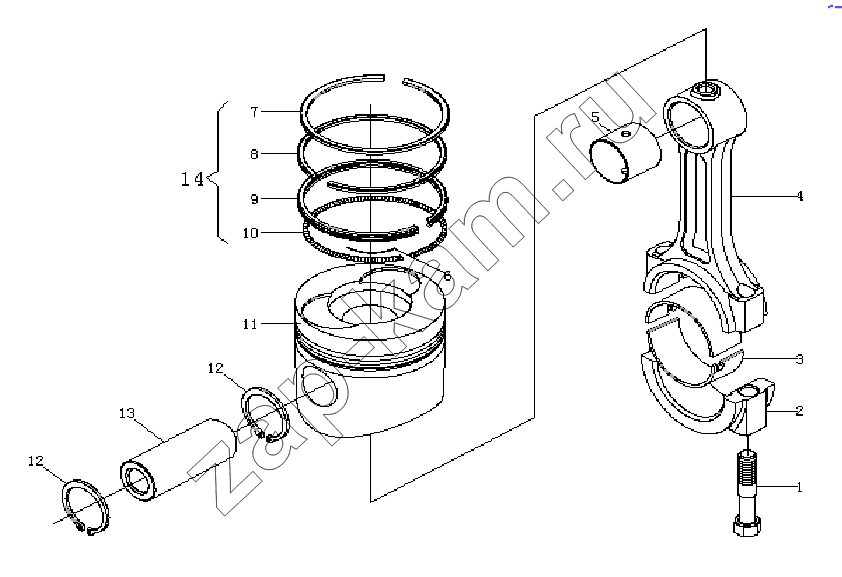

Piston and Connecting Rod Assembly
/ Weichai WP2.1D18E2
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | YZ480.05.1-3 | Connecting rod bolt | 8; | |
| 2 | YZ480.05.1-2 | Connecting rod cap | 4; | |
| 3 | 2085030114 | Connecting rod bearing | 8; | |
| 4 | YZ485QB.05.1-1 | Connecting rod | 4; | |
| 5 | YZ480QB.05.1-4 | Connecting rod bushing | 4; | |
| 6 | YZ485.05.2-3 | Joint | 4; | |
| 7 | 2085030113 | First compression ring | 4; | |
| 8 | YZ485.05-4 | Second compression ring | 4; | |
| 9 | YZ485.05.2-1 | Oil control ring | 4; | |
| 10 | YZ485.05.2-2 | Expander | 4; | |
| 11 | 2085030111 | Piston | 4; | |
| 12 | 2BKD-D28 | Circlip | 8; | |
| 13 | YZ485QB.05-2 | Piston pin | 4; | |
| 14 | 2085030112 | Piston ring assembly | 4; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
