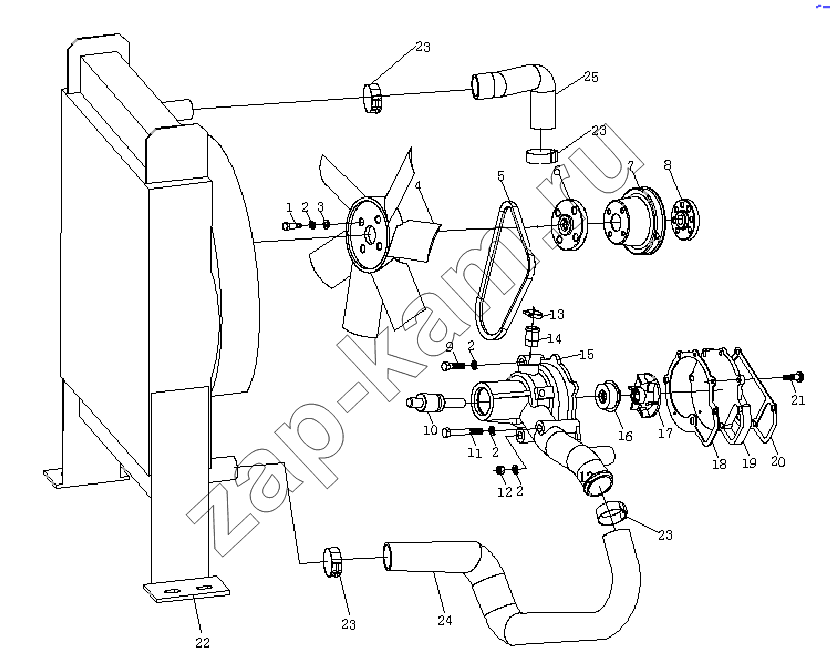

Water Pump and Fan Assembly
/ Weichai WP2.1D18E2
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
23
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 2BLS-M8X20/8.8 | Bolt | 4; | |
| 2 | 2BTDQ-D8 | Washer | 8; | |
| 3 | 2BPDQ-D8 | Washer | 4; | |
| 4 | 2085060103 | Fan | 1; | |
| 5 | 2085060104 | Cog belt | 1; | |
| 6 | YZ485D-21101 | Spacer | 1; | |
| 7 | T/Y80.29-9B | Water pump pulley | 1; | |
| 8 | YZ485ZLQ-19106 | Water pump pulley hub | 1; | |
| 9 | 2BLS-M8X50/8.8 | Bolt | 2; | |
| 10 | YZ485ZLQ-19104 | Water pump shaft | 1; | |
| 11 | 2BLS-M8X75/8.8 | Bolt | 1; | |
| 12 | 2BLM-M8 | Nut | 1; | |
| 13 | 2GDHG22-32 | Hose clamp | 1; | |
| 14 | YZ485Q.01.4-2 | Pipe adapter | 1; | |
| 15 | YZ485ZLQ-19103 | Water pump housing | 1; | |
| 16 | C15-0 | Water seal | 1; | |
| 17 | YZ485ZLQ-19101 | Water pump impeller | 1; | |
| 18 | T/Y80.29-2B | Water pump gasket | 1; | |
| 19 | T/Y80.29-3B | Water pump seat | 1; | |
| 20 | T/Y80-29B | Water pump seat gasket | 1; | |
| 21 | 2BLS-M6x16/8.8 | Screw | 2; | |
| 22 | GB/T68-2000 | Water tank | 1; | |
| 23 | 2B050005 | Hose clamp | 4; | |
| 24 | YZ485ZD-19120 | Water tank inlet pipe | 1; | |
| 25 | YZ485ZD-19119 | Water tank outlet pipe | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
