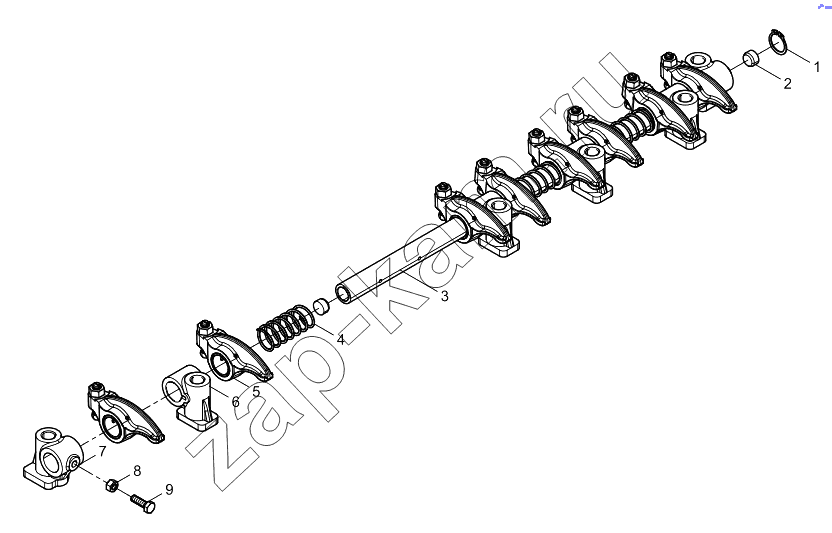

Integrated Rocker Arm Shaft Assembly
/ Weichai WP4.1 DH4.1G0110

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Piston Nozzle Assembly Flywheel Housing Group Gear Housing Group Gear Box Assembly Gear Housing Cover Group Crankshaft Group Main Bearing Group Main Bearing Set Thrust Plate Group Thrust Plate Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Eye Ring Group Cylinder Head Cover Group Cylinder Head Cover Assembly Oil filler cap assembly Valve Train Group Integrated Rocker Arm Shaft Assembly Rocker arm assembly Gear Drive Group Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Drain Plug Oil Dipstick Group Oil Pump Group Oil Pump Drivien Gear Oil Cooler Group Oil Cooler Assembly Oil Filter Group Oil Filter Pressure-limiting Valve Group Water Pump Group Water Pipe Connector Group Water Outlet Pipe Group Thermostat Group Fan and Hub Group Fuel Injection Pump Group Fuel Injection Pump Assembly Fuel Injection Pump Oil Pipe Group Fuel Injector Group Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Filter Assembly High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Intake Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Air Filter Group Exhaust Manifold Group Instrument Group Air Compressor Group Tensioner And Belt Group Water Draining Valve Group Steering Pump Group Starter Motor Group Engine Bracket Group Packing Box Chassis Parts Group Air Filter Body Parts Box Group Fuel System Protector Electronic Control Unit Group Electronic Control System Harness Group Alternator Group Alternator Bracket Group

1

2

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во	Цена
1	90014590017		Circlip for shaft	1;	-
2	2010211		Stem	2;	-
3	2010185		Rocker Arm Shaft	1;	-
4	2010334		Rocker Arm Spring	3;	-
5	1000392265		Rocker arm assembly	8;	-
6	2010212		Rocker Arm Bracket	5;	-
7	2010195		Rocker Arm Bracket	1;	-
8	90003871232		Гайка	1;	-
9	90003802331		Hexagon Head Bolt	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
