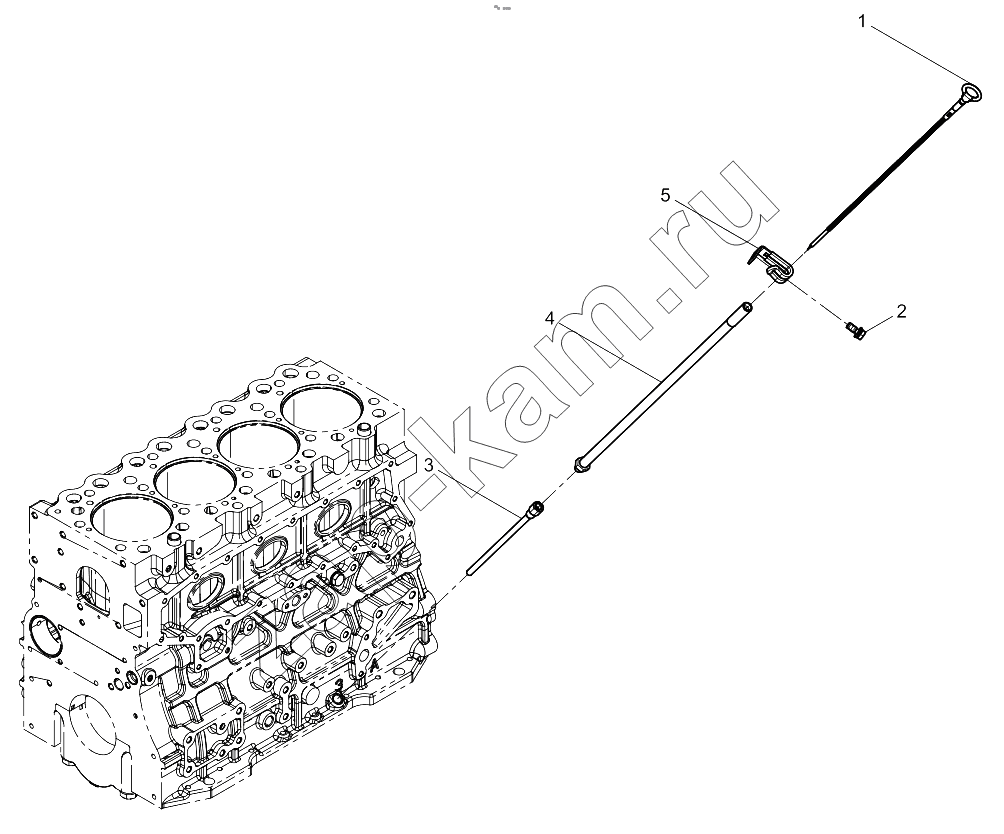

Oil Dipstick Group
/ Weichai WP4.1 DH4.1K0320

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Piston Nozzle Assembly Flywheel Housing Group Gear Housing Cover Group Gear Housing Group Gear Box Assembly Crankshaft Group Main Bearing Group Main Bearing Set Thrust Plate Group Thrust Plate Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Subassembly Eye Ring Group Cylinder Head Cover Group Oil filling port cover assembly Valve Train Group Integrated Rocker Arm Shaft Assembly Rocker arm assembly Gear Drive Group Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Drain Plug Oil Dipstick Group Oil Pump Group Oil Pump Drivien Gear Oil Cooler Group Oil Cooler Assembly Oil Filter Group Pressure-limiting Valve Group Water Pump Group Water Pump Inlet Pipe Group Water Draining Valve Group Thermostat Group Fan and Hub Group Fuel Injection Pump Group Fuel Injector Group Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Fine Filter High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Intake Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Exhaust Manifold Group Air Conditioning Compressor Group Air Compressor Group Tensioner And Belt Group Steering Pump Group Starter Motor Group Engine Bracket Group Engine Peripheral Device Support Group Packing Box Chassis Parts Group Fuel System Protector Separate Delivery Parts Group Attached to Engine SCR Box Assembly Integrated Urea Tank Assembly Urea Tank Assembly Parts Box Group Fuel Coarse Filter Connector Assembly Connector Matching Connector Fuel heating Conneting parts Starting relay Conneting parts Matching Connector Connector Connector Electronic Control Unit Group Engine Harness Group Alternator Group Alternator Bracket Group

1

2

3

4

5

Поз.	Артикул		Название детали	Кол-во
1	1000157890		Dipstick Assembly	1;
2	90019020002		Hexagonal head bolt, spring washer and flat washer assembly	1;
3	1000155827		Dipstick Pipe Below Set	1;
4	1000155849		Dipstick Pipe Upper Set	1;
5	2102150120		Dipstick Fixing Bracket	1;
