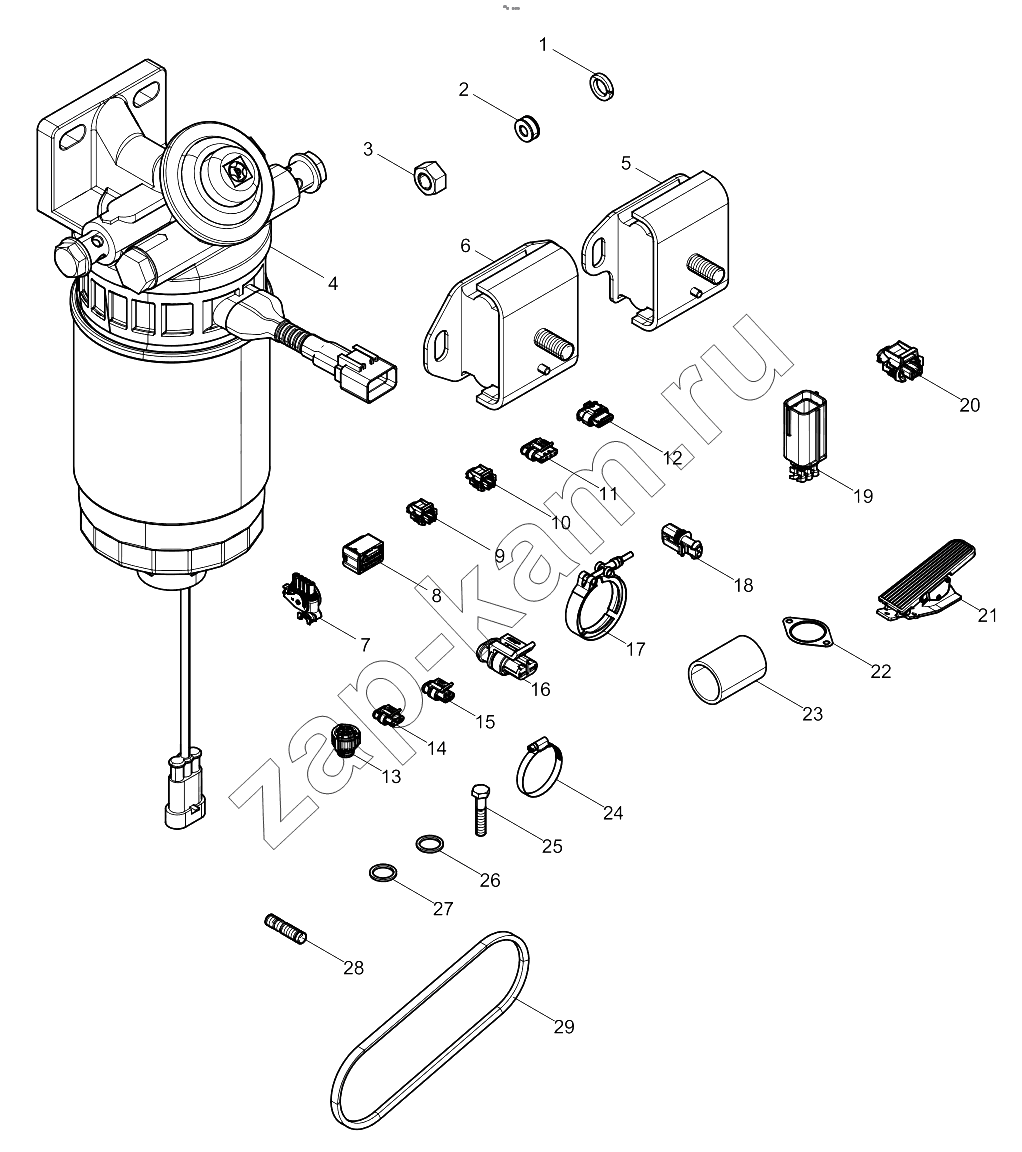

Parts Box Group
/ Weichai WP4.1 DH4.1K0320
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 90003931122 | Шайба | 12; | |
| 2 | 1000130788 | ECU Damping Washer | 8; | |
| 3 | 90003871305 | Гайка | 14; | |
| 4 | 1002006540 | Fuel Coarse Filter | 1; | |
| 5 | Z20380106 | Front Suspension Soft Cushion | 1; | |
| 6 | Z20380107 | Front Suspension Soft Cushion | 1; | |
| 7 | 612600081920 | Connector | 1; | |
| 8 | Z20310083 | Connector Assembly | 1; | |
| 9 | Z20310084 | Connector Assembly | 1; | |
| 10 | Z20310085 | Connector Assembly | 1; | |
| 11 | Z20310086 | Connector Assembly | 1; | |
| 12 | Z20310088 | Connector Assembly | 1; | |
| 13 | 612630080167 | Fuel strainers water level sensor connectors | 1; | |
| 14 | 612630080211 | Fuel heating Conneting parts | 1; | |
| 15 | 612600081922 | Magnetic fan coil 2 plug-in | 1; | |
| 16 | 612600081283 | Connector Assembly | 1; | |
| 17 | 610800110226 | Clamp | 2; | |
| 18 | 612600081921 | Starting relay Conneting parts | 1; | |
| 19 | 612600090448 | Matching Connector | 1; | |
| 20 | 612640130059 | Double end 2-hole connector assembly | 3; | |
| 21 | 612630080182 | Accelerate Pedal | 1; | |
| 22 | 2062868 | Exhasut Manifold Gasket | 1; | |
| 23 | 13056715 | Pipe | 1; | |
| 24 | 617021000042 | Clamp | 2; | |
| 25 | 90003800564 | Болт | 10; | |
| 26 | 90014040008 | Plain Washer | 24; | |
| 27 | 90003932024 | Шайба пружинная | 12; | |
| 28 | 90011620028 | Double End Stud | 12; | |
| 29 | 1000296023 | V-belt | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
