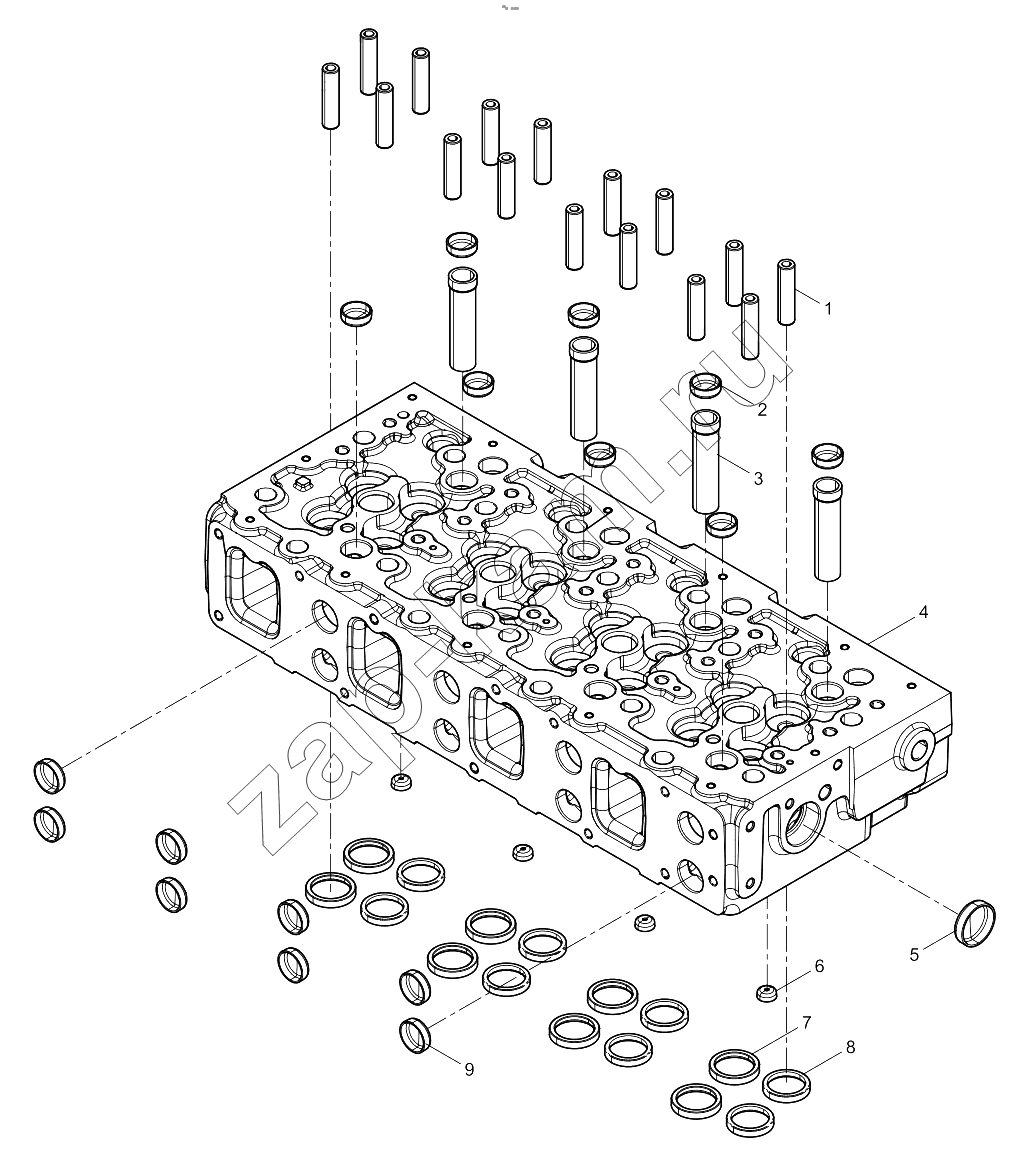

Cylinder Head Subassembly
/ Weichai WP4.1 DHN4.1Q0006

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 R6160 (2008) WD10 (DHD10G0208) WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.336 (2007) WD12.375 (2007) WD12.390 (2007) WD12.420 (2007) WD12.420 (2014) WD615 (DH615Q1890) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHL10Q0213 (2018) WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0801 (2021) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP13 DHP13Q3760 (2023) WP2.1D18E2 (2013) WP4 (2018) WP4.1 DH4.1G0110 (2019) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07Q0660 (2021) WP7 DHP07T0067 (2023) WP7.300E51 WP7H DHH07G0013 (2022) WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Flywheel Housing Group Gear Housing Group Gear Box Assembly Second Order Balance Mechanism Group Secondary Balance Machanism Balance Shaft Unit Housing Set Secondary Balance Machanism Driving Gear Set Secondary Balance Machanism Driven Gear Set Crankshaft Group Crankshaft Subassembly Main Bearing Group Thrust Plate Group Flywheel Group Flywheel Assembly Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Assembly Cylinder Head Subassembly Eye Ring Group Cylinder Head Cover Group Oil Filler Cap Set Oil-gas Separator Oil-outlet Pipe Set Valve Train Group Camshaft Assembly Integrated Rocker Arm Shaft Assembly Intake Rocker Arm Set Exhaust Rocker Arm Set Gear Drive Group Idler Gear Assembly Idler Gear Assembly Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Dipstick Group Oil Pump Group Oil Strainer Group Oil Filter Group Oil Cooler and Filter Assembly Water Pump Group Water Pump Inlet Pipe Group Water Outlet Pipe Group Thermostat Group Fan Bracket Group Fuel Injection Pump Group Fuel Injection Pump Fuel Injector Group Fuel Injector Low Pressure Fuel Pipe Group High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Intake Manifold Group Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Exhaust Manifold Group Exhaust Manifold Heat Shield Assembly Rear Exhaust Manifold Group Exhaust brake butterfly valve heat shield assembly Separate Delivery Parts Group Attached to Engine SCR Box Assembly Integrated Urea Tank Assembly Urea Tank Assembly Air Conditioning Compressor Group Air Compressor Group Air Compressor Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Parts Box Group Fuel System Protector Matching Connector Vehicle Connector Connector Assembly Electronic Control Unit Group ECU Bracket Electronic Control System Harness Group Alternator Group Alternator Bracket Group Fuel Injection Pump Oil Pipe Group

1

2

3

4

5

6

7

8

9

Поз.	Артикул		Название детали	Кол-во
1	1000393009		Valve Guide	16;
2	612600040633		Corehole plug	8;
3	1000945233		Push Rod Bush	4;
4	1002431697		Cylinder Head	1;
5	1000000175		Bowl Plug	1;
6	1000393016		Bowl Plug	4;
7	1001084825		Exhaust Valve Seat	8;
8	1001084824		Intake Valve Seat	8;
9	612600040634		Bowl Plug	8;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
